Service
03/2020

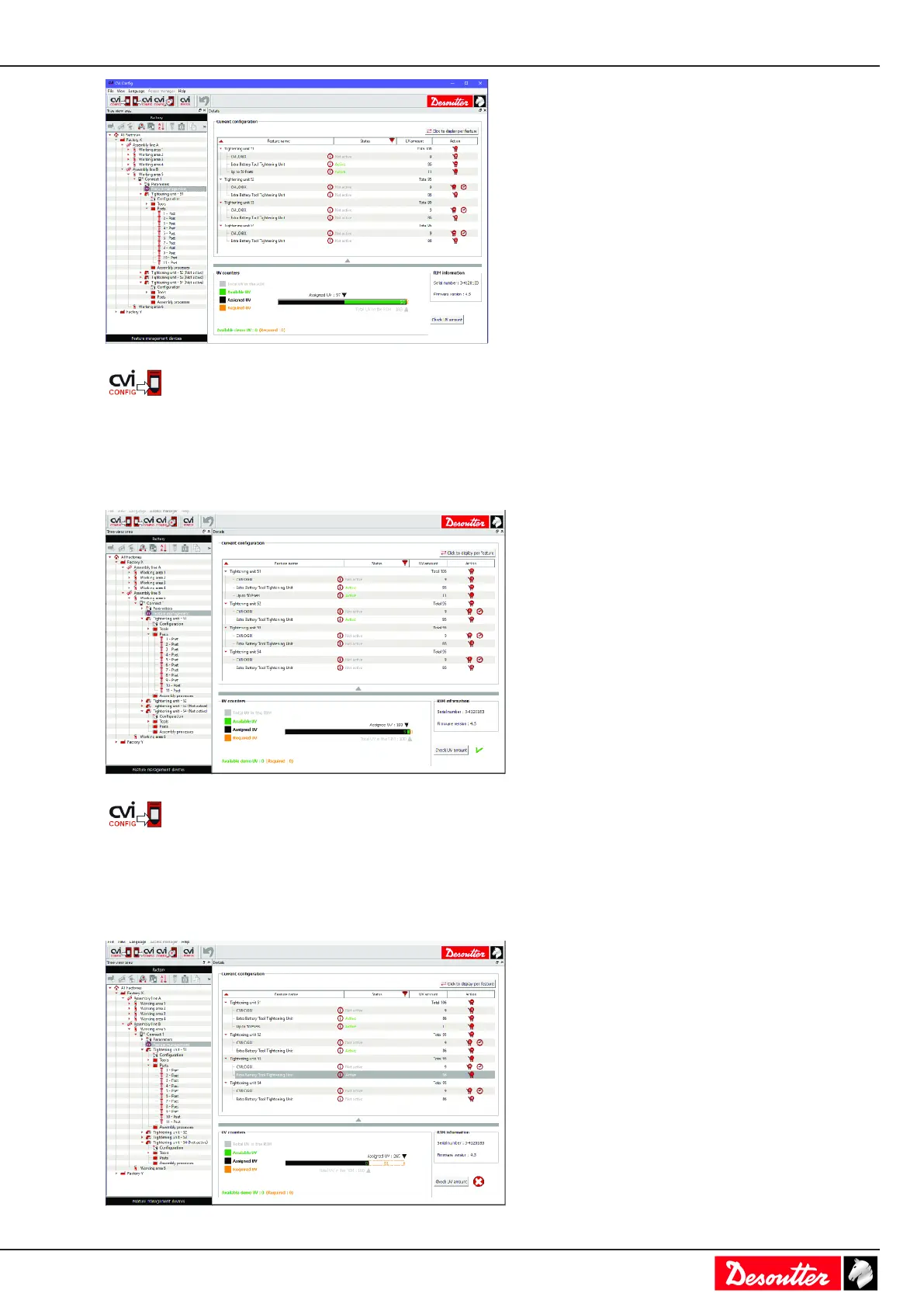

61 / 84
Click this icon to update the product.
Note that 97 UVs have been assigned and that 91 UVs remain available.
Assigned UVs
Activate
Tightening unit - 52
.
Click this icon to update the product.
Note that 183 UVs have been assigned and that 5 UVs remain available.
Required UVs
Activate
Tightening unit - 53
.
60
62
