Configuration overview
List of screens

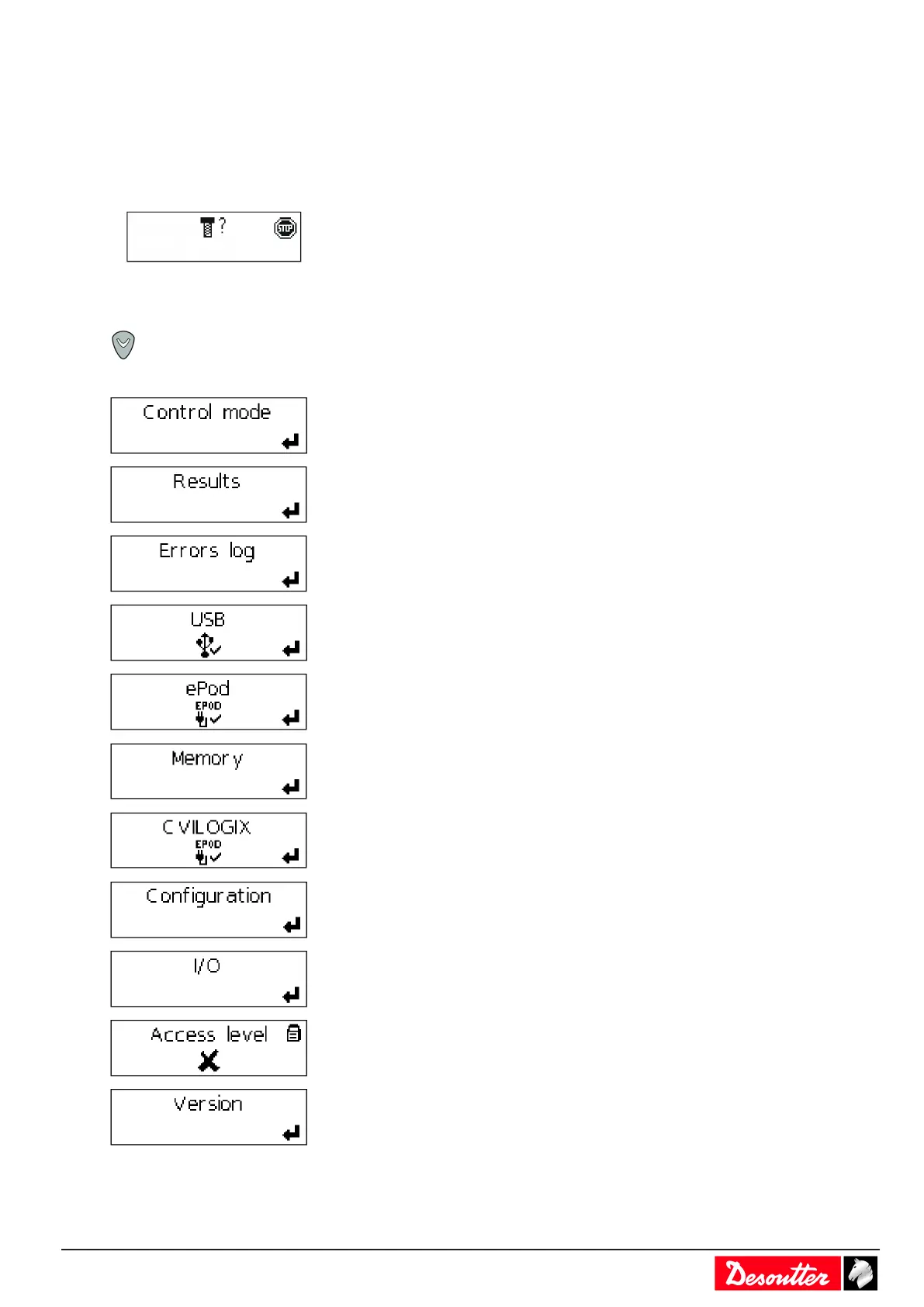

CVI3 Essential / CVI3 Function
When the controller is powered on, the start screen is displayed.
The Stop icon means that the tool is locked.
The controller is waiting for the selection of a Pset to run the tool.
Press this button to access to the other screens.
to display the last result
to select the next Assembly Process and/or Pset
to display the results
to display the user infos
to save the results, configurations and logs to a USB key
to upgrade the firmware
to backup, restore or erase the tightening results from the
ePOD
to eject and repair the ePOD
to erase the results, the user infos and the configurations
to launch a CVILOGIX program
to set up the network
to customize the controller
to display the status of the Inputs/Outputs
to enable or disable the data protection
to display the firmware version
