Curves view
The curves available are:
• Torque vs Angle
• Torque vs Time
• Angle vs Time
• Current vs Time
• Speed vs Time
Tick Auto refresh to keep refreshing the curve after each tightening.
Use this icon to point to the first value. Keep pressing the icon to follow the curve.
Use this icon to point to the last value.
The markers show remarkable samples.

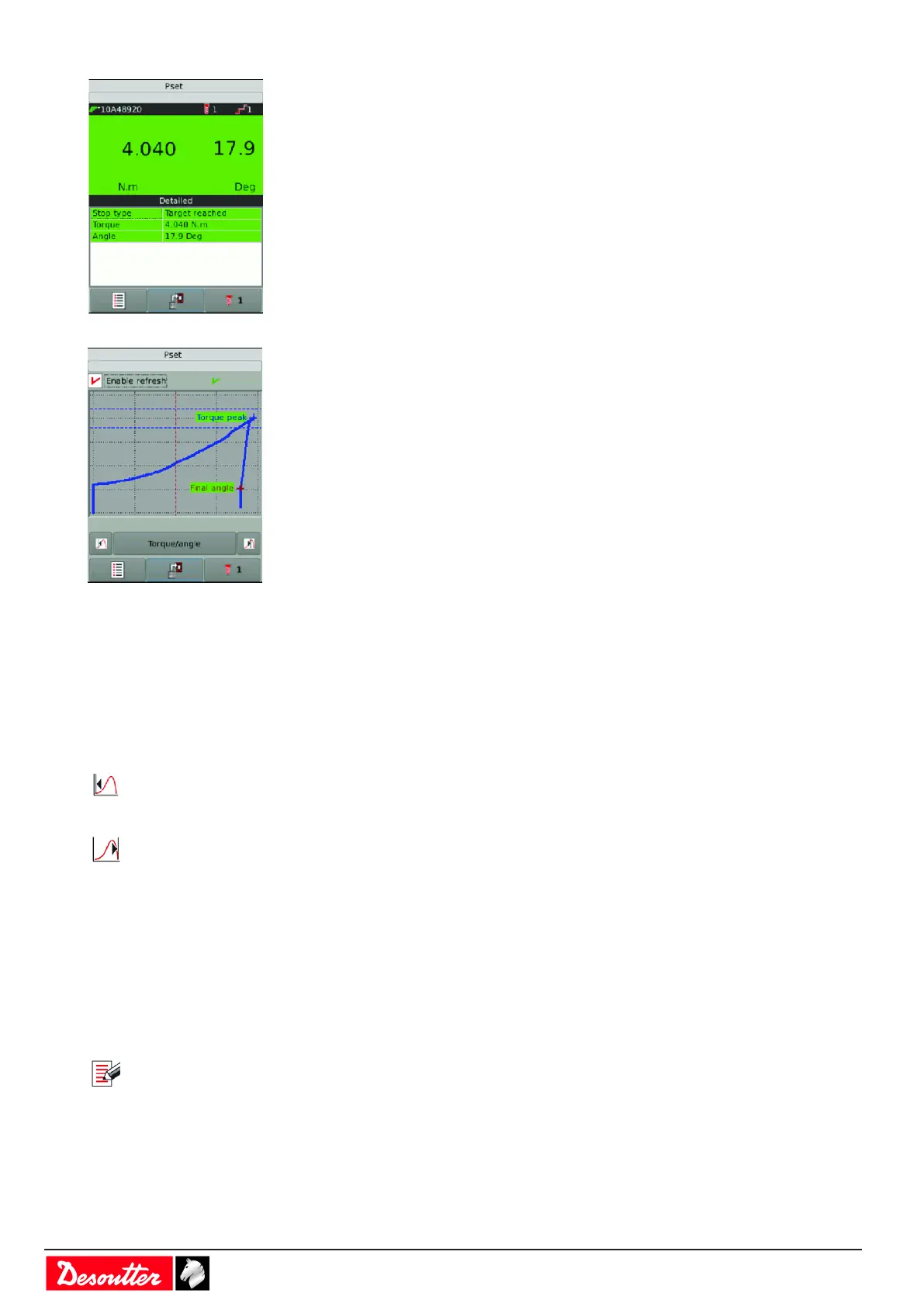

The white cross shows the current sample. Use the dot lines to navigate on the curve.
Tap the screen to return to the start screen.
How to get curves displayed
Go to Configuration > Tightening unit.
Select the tightening unit in the list.
Tap this icon to edit.
