0044-0391-0M Rev F y solo Series Owner’s Manual
8
Wall Mounting the solo-RI Display, Cont.
5. With the notch (arrow) pointing up on Wall Bracket “B”, insert the two (2) M3.0x25 screws
through the bracket and into the wall anchors.
6. Tighten the screws to secure the bracket to the wall.
7. Referring to Figure No. 6, make sure the four (4) feet of Wall Bracket “A” are placed in the
bracket.
8. Next, locate the four (4) slots on the back of the display and align them with the four (4)
tabs on the Wall Bracket “A”. Refer to Figure No. 7.
9. Insert the tabs into the slots and press together until the bracket locks to the back of the
display.

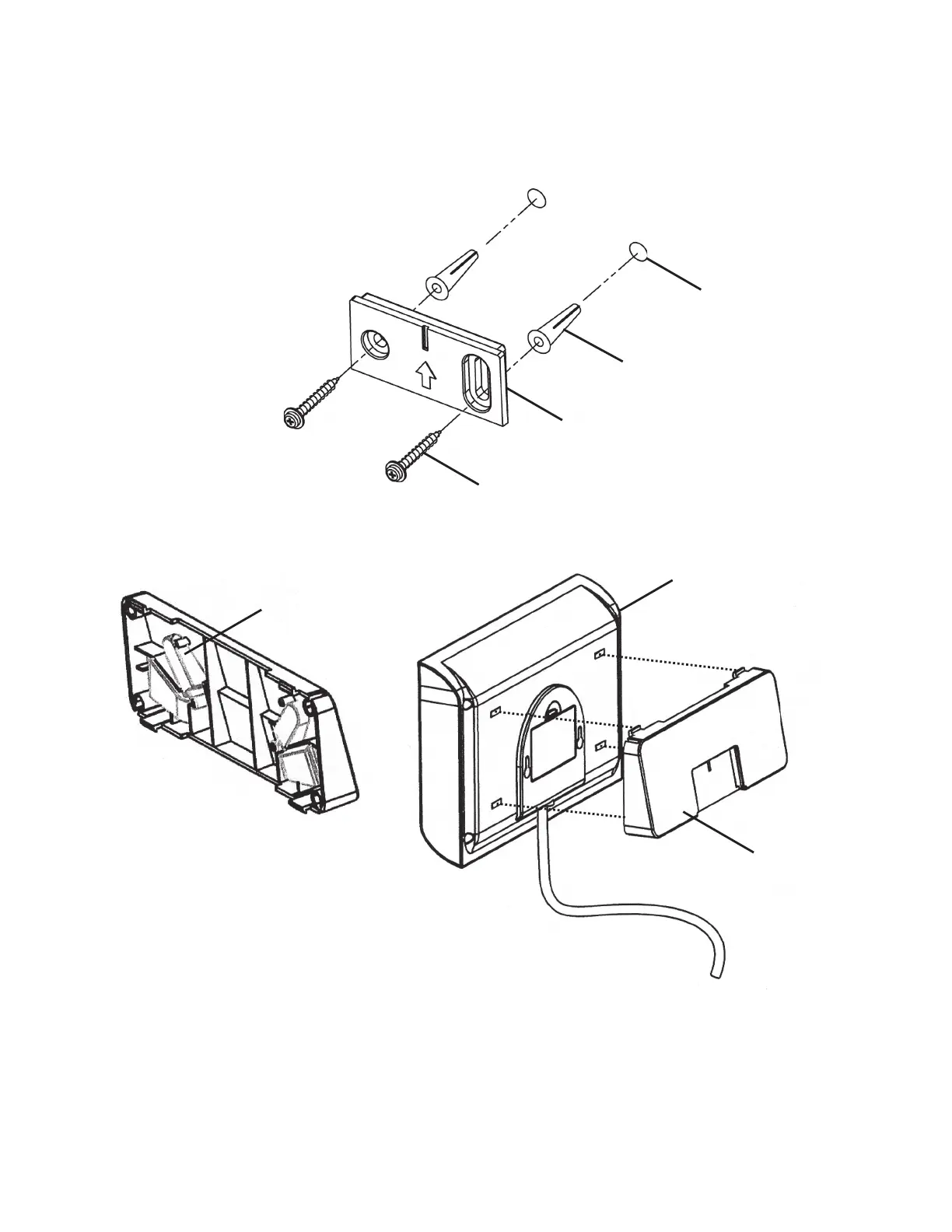

13/64” (5 mm)
Hole in Wall
Plastic Wall Anchor
Wall Bracket “B”
M3.0x25 Screw
Figure No. 5
(Installing Wall Bracket “B”)
Display
Wall
Bracket
“A”
Figure No. 7
(Attach Wall Bracket “A” to Display)
Figure No. 6
(Place Feet in Bracket “A”)
Feet
(for Desk or
Table Mounting)
To Next Page
