0044-0391-0M Rev F y solo Series Owner’s Manual
3
solo EYE-LEVEL PHYSICIAN SCALE
Unpacking
Remove the Display with Upper Outside and Inside Column (already assembled), Lower
Inside Column, Lower Outside Column, Scale Platform, and Hardware Pack from the
shipping carton. After removing from the carton, check for any damage that may have taken
place during shipment. Keep and use the original carton and packing material for return
shipment if it should become necessary. The purchaser is responsible for filing all claims for
any damages or loss incurred during transit. Remove all plastic wrapping, foam fillers, and
cardboard material from the scale platform, display, and other components. You should have
the following components:
c Display with Upper Outside and Inside Column (pre-assembled)
d Lower Inside Column
e Lower Outside Column
f Scale Platform (with Column Housing Cover)
g Carpet Feet (Qty. 4)
h Hardware Pack, containing:
(4) M5 x 15 Machine Screws
(4) Lock Washers
(2) M3 x 12 Screws

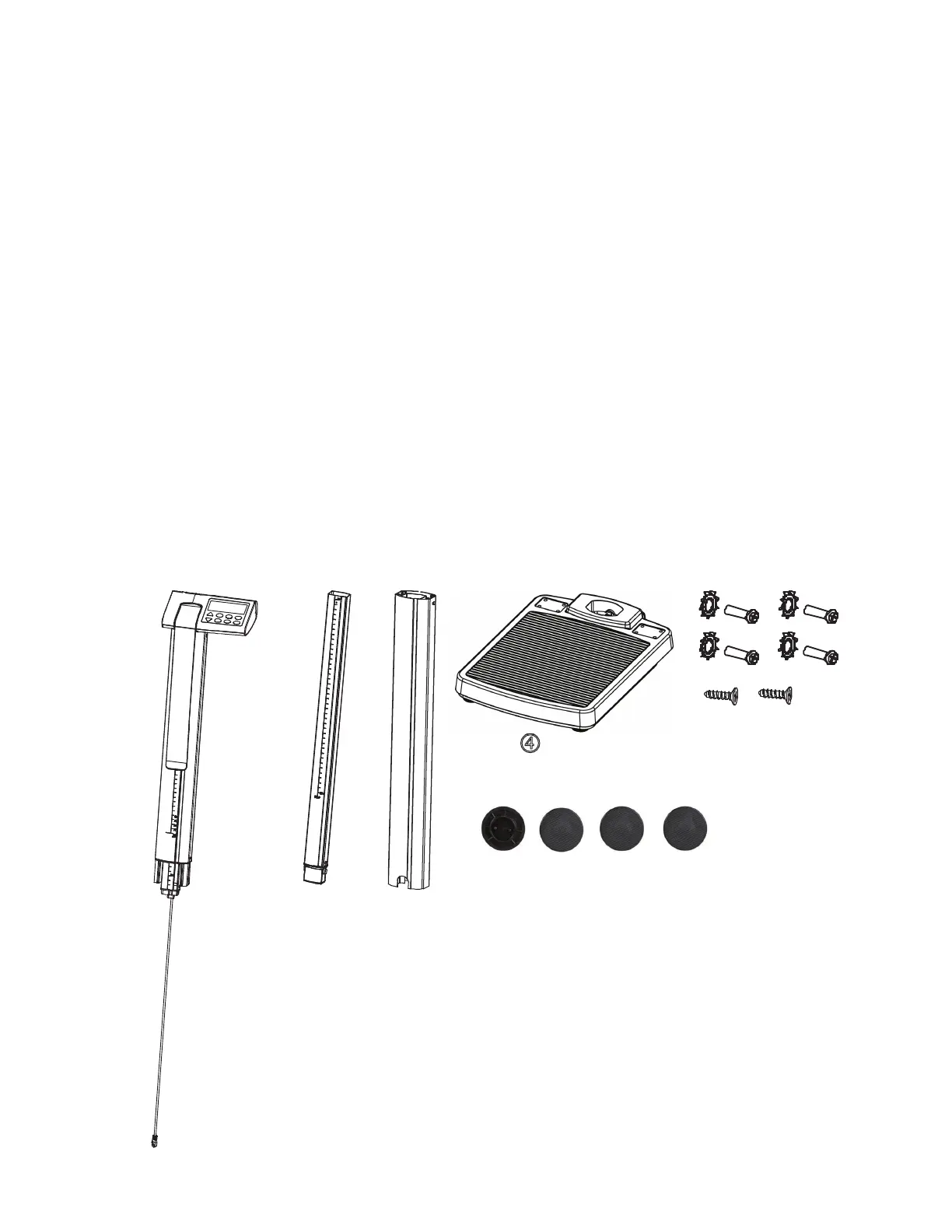

Figure No. 1 – (solo Eye-Level Physician Scale Components)
f
