Detecto solo Series

0044-0391-0M Rev F y solo Series Owner’s Manual
4
Scale Assembly
Step 1
1. Align Part 2 (lower inside column) with Part 1 (pre-assembled display upper outside and
inside column).
2. Press the parts together until the locking tab snaps in place.
3. Ensure that the locking tab is locked securely.

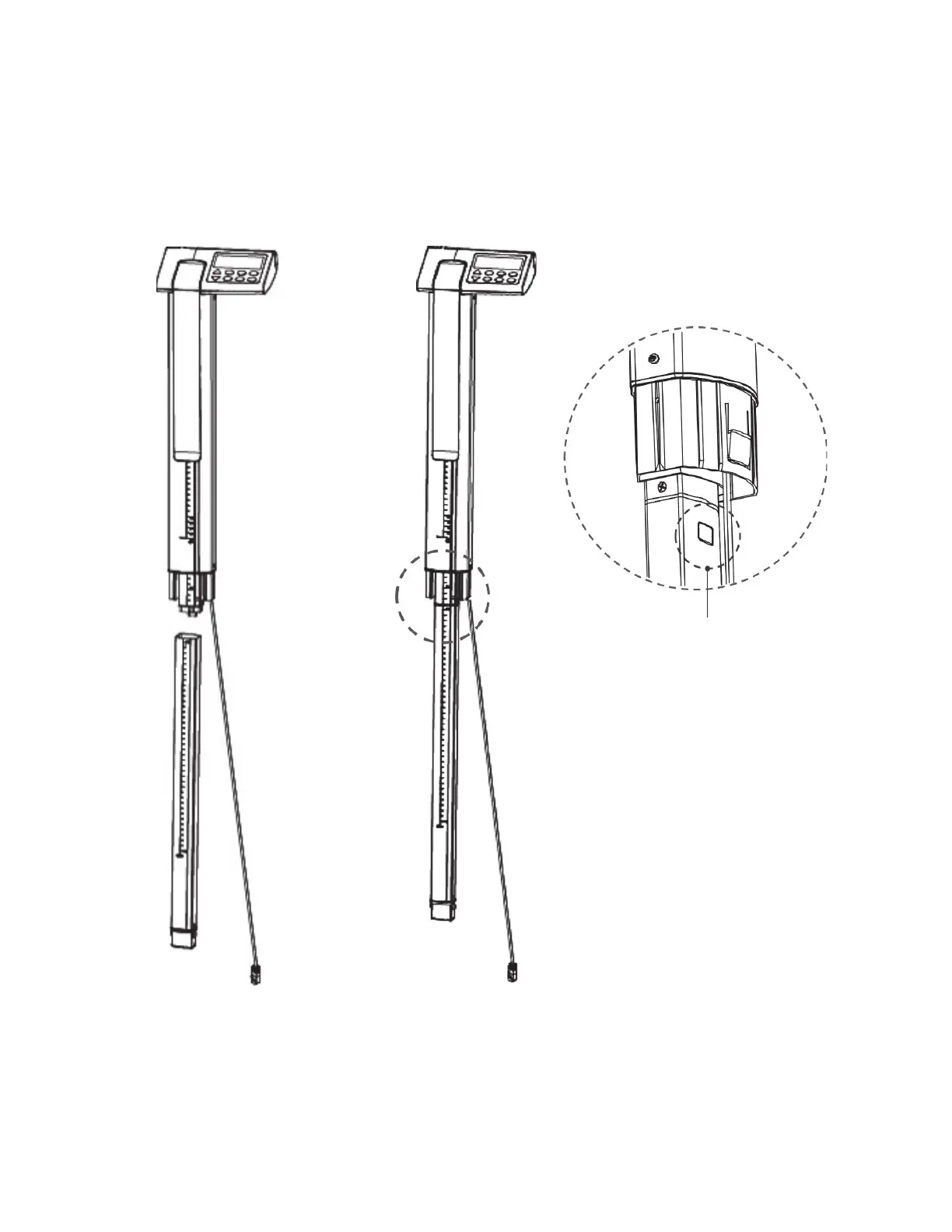

Figure No. 2
(Scale Assembly, Step 1)
c
c
d
d
e
e
Ensure locking
tab is securely
