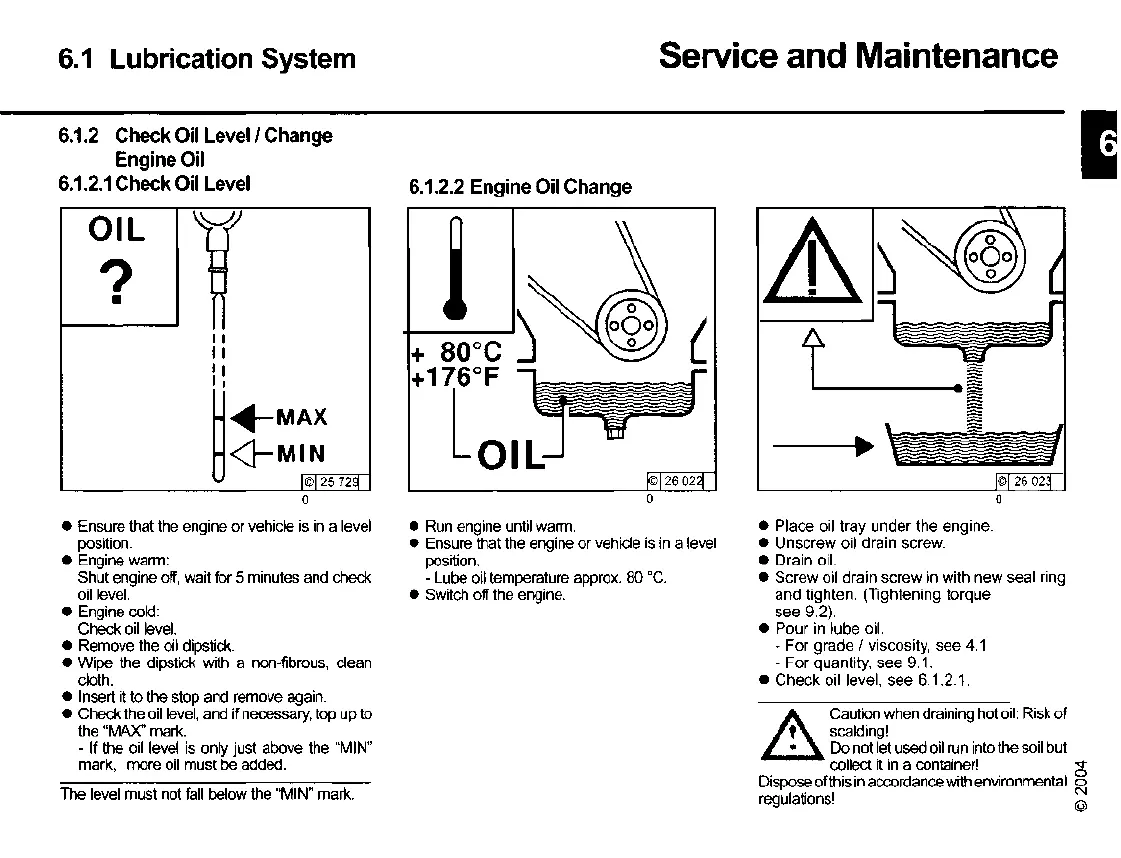

6.1
Lubrication System
6.1.2
Check
Oil
Levell
Change
Engine Oil
6.1.2.1
Check
Oil
Level
Service
and
Maintenance
6.1.2.2
Engine
Oil
Change
E
OIL
?
•
• Ensure that the engine or vehicle is
in
a level
position.
• Engine warm:
Shut engine off, wait for 5 minutes and check
oil level.
• Engine cold:
Check oil level.
• Remove the oil dipstick.
• Wipe the dipstick with a non-fibrous, clean
cloth.
• Insert
it
to the stop and remove again.
• Check the oil level, and ifnecessary, top up to
the "MAX" mark.
- If the oil level is only just above the "MIN"
mark, more oil must be added.
The level must not fall below the "MIN" mark.
• Run engine until warm.
• Ensure that the engine or vehicle is
in
a level
position.
- Lube oil temperature approx.
80°C.
• Switch off the engine.
• Place oil tray
under
the engine.
•
Unscrew
oil drain screw.
• Drain oil.
•
Screw
oil drain
screw
in with
new
seal ring
and tighten. (Tightening torque
see
9.2).
•
Pour
in lube oil.
-
For
grade
/ viscosity, see 4.1
-
For
quantity,
see
9.1.
•
Check
oil level,
see
6.1.2.1.
&
........
...........•...•..........•....
Caution when draining hotoil: Risk
of
, scalding!
• . Do not let used oil run into the soil but
collect it
in
a container! g
Disposeofthis
in
accordancewith environmental 0
regulations!
~
