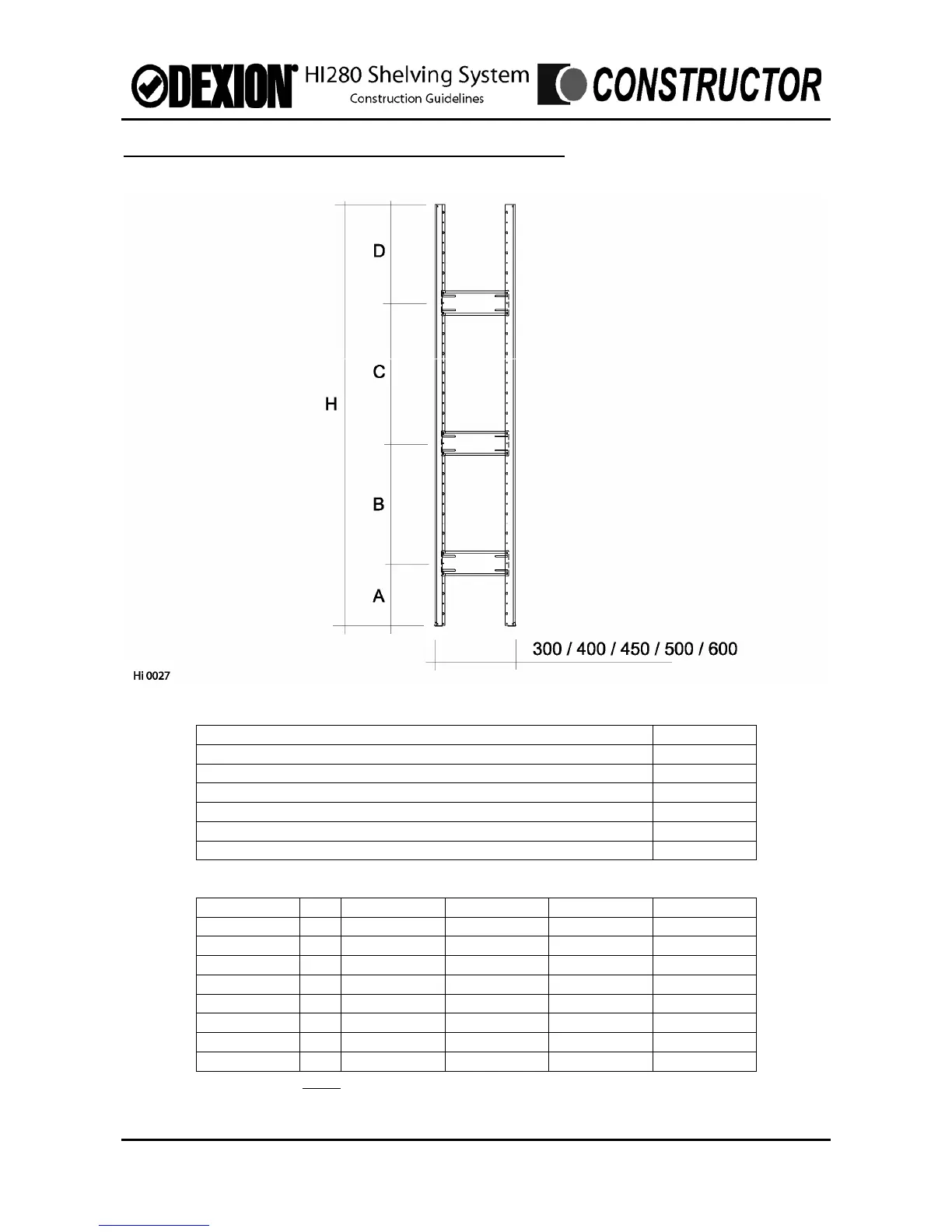

LOW RISE - 3 LIGHT DUTY BATTENS (swaged or riveted).
Component take-off Quantity
Upright 2
Baseplate 2
Upright to baseplate fixing (when required) 2
Light duty batten 3
Rivet 4.8 x 7mm (only for riveted frames) 12
Frame First Batten Batten Top
Height Batten Centres Centres Batten
‘H’ ‘A’ ‘B’ ‘C’ ‘D’
2100mm 311 600 700 489
2300mm 311 600 900 489
2500mm 311 700 1000 489
3000mm 311 900 1300 489
Note: Riveted battens must be lowered by 50mm
Issue: June 2005 Section E – Frame Assembly Schedule Page E.5
