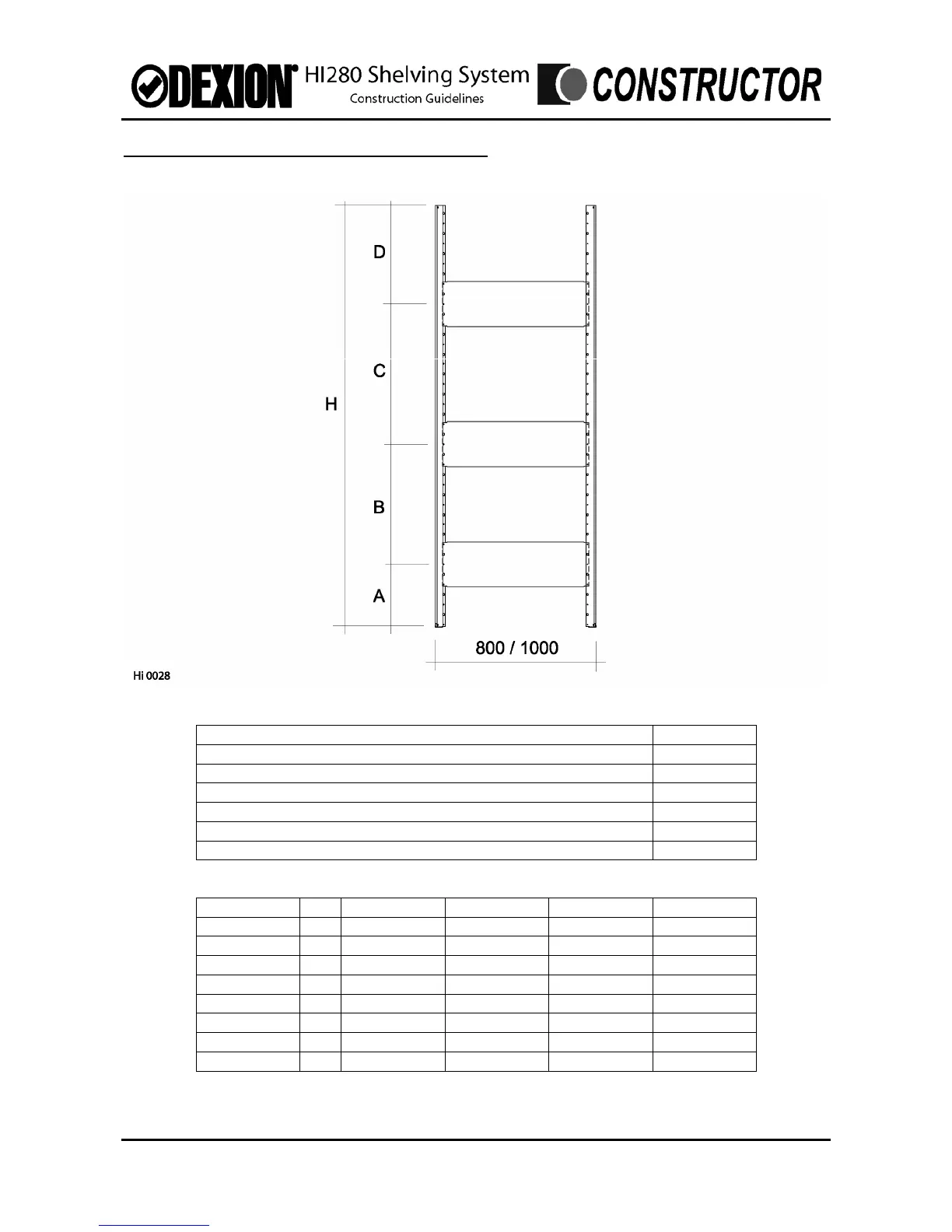

LOW RISE - 3 HEAVY DUTY BATTENS (riveted).
Component take-off Quantity
Upright 2
Baseplate 2
Upright to baseplate fixing (when required) 2
Heavy duty batten 3
Rivet 4.8 x 7mm 18
Frame First Batten Batten Top
Height Batten Centres Centres Batten
‘H’ ‘A’ ‘B’ ‘C’ ‘D’
2100mm 311 600 700 489
2300mm 311 600 900 489
2500mm 311 700 1000 489
3000mm 311 900 1300 489
Issue: June 2005 Section E – Frame Assembly Schedule Page E.6
