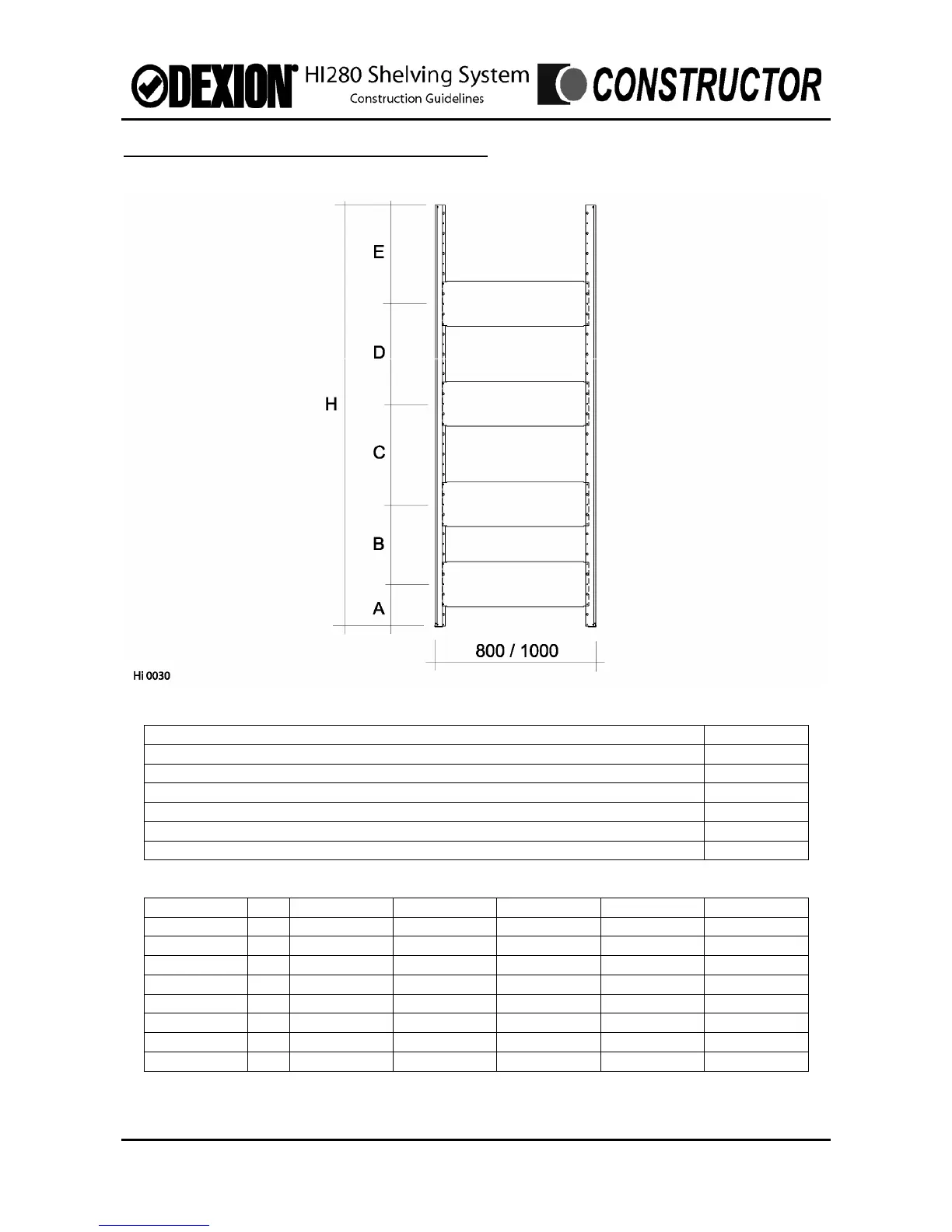

LOW RISE - 4 HEAVY DUTY BATTENS (riveted).
Component take-off Quantity
Upright 2
Baseplate 2
Upright to baseplate fixing (when required) 2
Heavy duty batten 4
Rivet 4.8 x 7mm 24
Frame First Batten Batten Batten Top
Height Batten Centres Centres Centres Batten
‘H’ ‘A’ ‘B’ ‘C’ ‘D’ ‘E’
2100mm 211 300 500 600 489
2300mm 211 400 500 700 489
2500mm 211 400 600 800 489
3000mm 211 500 800 1000 489
Issue: June 2005 Section E – Frame Assembly Schedule Page E.8
