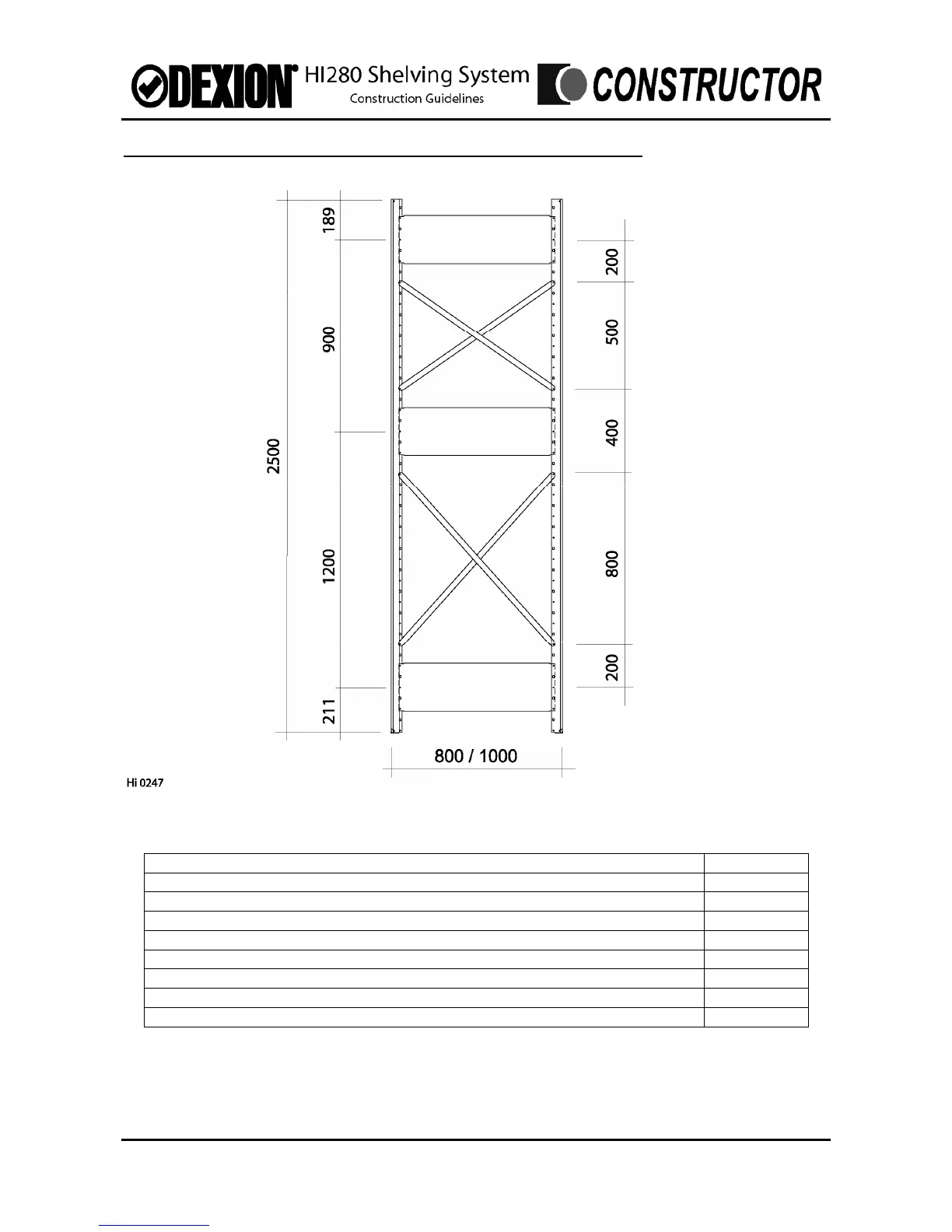

2500mm MULTI-TIER FRAME (Braced + Heavy duty riveted battens).
Component take-off Quantity
Upright 2
Baseplate 2
Upright to baseplate fixing (when required) 2
Heavy duty batten (rivet holes) 3
Frame brace for a 500mm high bracing panel 2
Frame brace for an 800mm high bracing panel 2
Rivet 4.8 x 7mm 26
Issue: June 2005 Section E – Frame Assembly Schedule Page E.45
