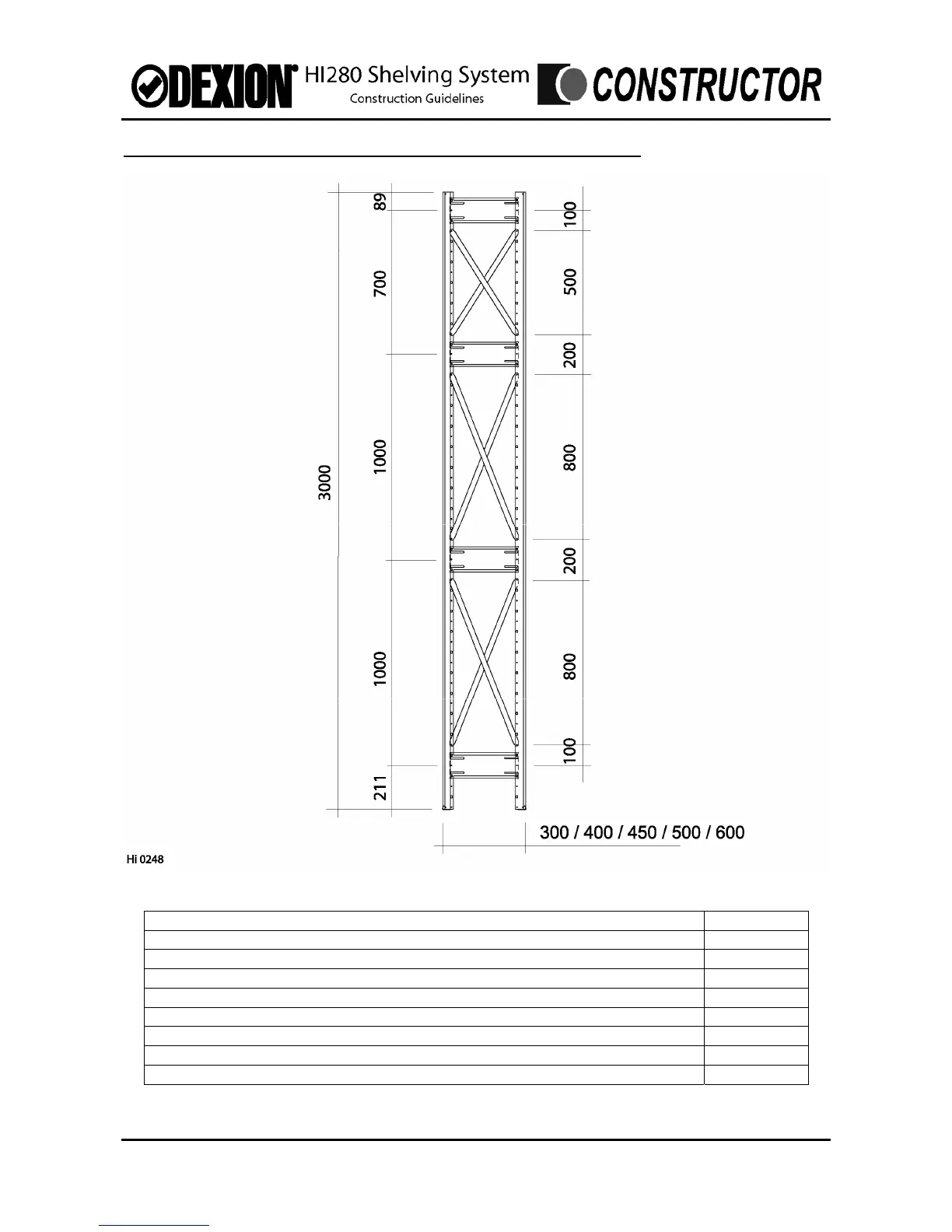

3000mm MULTI-TIER FRAME (Braced + Light duty swaged battens).
Component take-off Quantity
Upright 2
Baseplate 2
Upright to baseplate fixing (when required) 2
Light duty batten (swage holes) 4
Frame brace for a 500mm high bracing panel 2
Frame brace for an 800mm high bracing panel 4
Rivet 4.8 x 7mm 12
Issue: June 2005 Section E – Frame Assembly Schedule Page E.46
