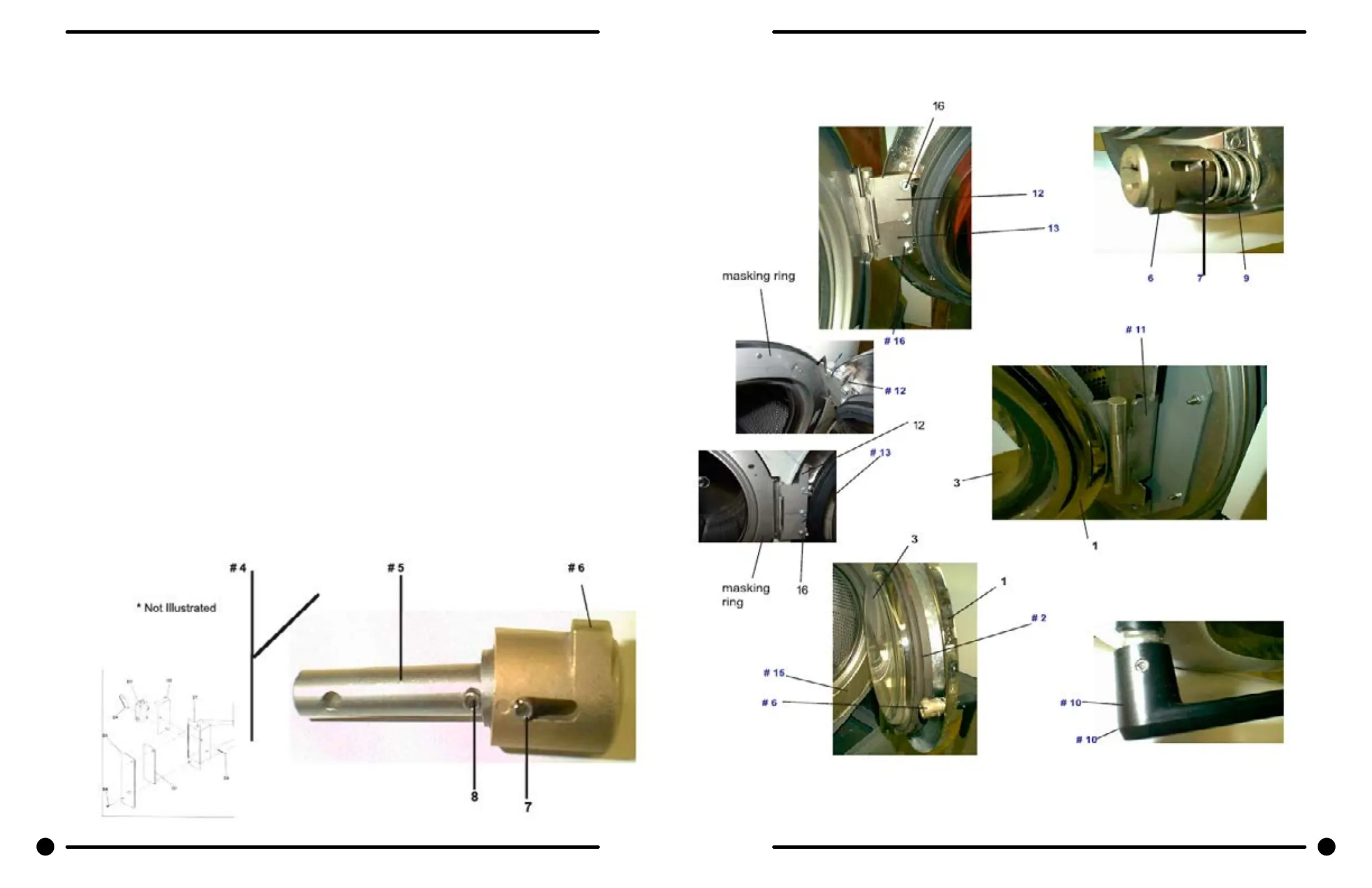

Loading Door Group by Part #
WCVD-75 (180 Door)
Key Part Number
* 9960-274-004
1 9487-265-002
2 9206-419-001
3 9635-016-001
4 9913-134-003
5 9537-195-002
6 9095-040-001
7 9451-181-005
8 9451-181-005
9 9534-360-002
10 9244-080-003
17 9451-181-006
11 9955-030-001
* 9545-014-009
* 8641-582-009
* 9552-036-001
* 9552-036-002
12 9845-005-003
13 9845-005-002
16 9545-056-002
15 9950-060-002
* 8640-413-002
* 9059-063-002
* 9801-089-001
D1 9041-087-001
* 9053-067-003
D3 9539-461-007
D2 9550-159-001
D4 8640-401-001
D8 9545-020-001
D7 9008-004-001
Description................................................................................................Qty
Loading Door, Complete ( includes #1thru #10) .............................................1
Loading Door Ring 180 degree.......................................................................1
Gasket, Loading Door....................................................................................1
Window, Loading Door..................................................................................1
Shaft Assy. Locking (includes #5 thru #8)......................................................1
Shaft, Door Locking.......................................................................................1
Cam, Locking................................................................................................1
Pin, Groove (1 1/4).......................................................................................1
Pin, Groove (3/4)..........................................................................................1
Spring, Lock Cam..........................................................................................1
Handle, Door................................................................................................1
Roll Pin, Door Handle (groove).......................................................................1
Hinge Assy, Loading Door ( mounts to tub front )............................................1
Screw, Hinge Mtg.........................................................................................3
Lockwasher...................................................................................................3
Shim, Loading Door Hinge, Thin..................................................................AR
Shim, Loading Door Hinge, Thick.................................................................AR
Top, Loading Door Leaf Hinge.with pin...........................................................1
Bottom, Loading Door Leaf Hinge...................................................................1
Screw, Loading Door Hinge Mtg.....................................................................3
Ring, Masking w door switch hole..................................................................1
Nut..............................................................................................................4
Band Edge Protector......................................................................................1
Door Closure Switch Assembly........................................................................1
Switch Box...................................................................................................1
Bushing Insulating.........................................................................................1
Switch, Micro.................................................................................................1
Switch, Shield................................................................................................1
Nut Special Twin #4-40..................................................................................1
Screw 4-40x5/8............................................................................................2
Door Switch Actuator.....................................................................................1
