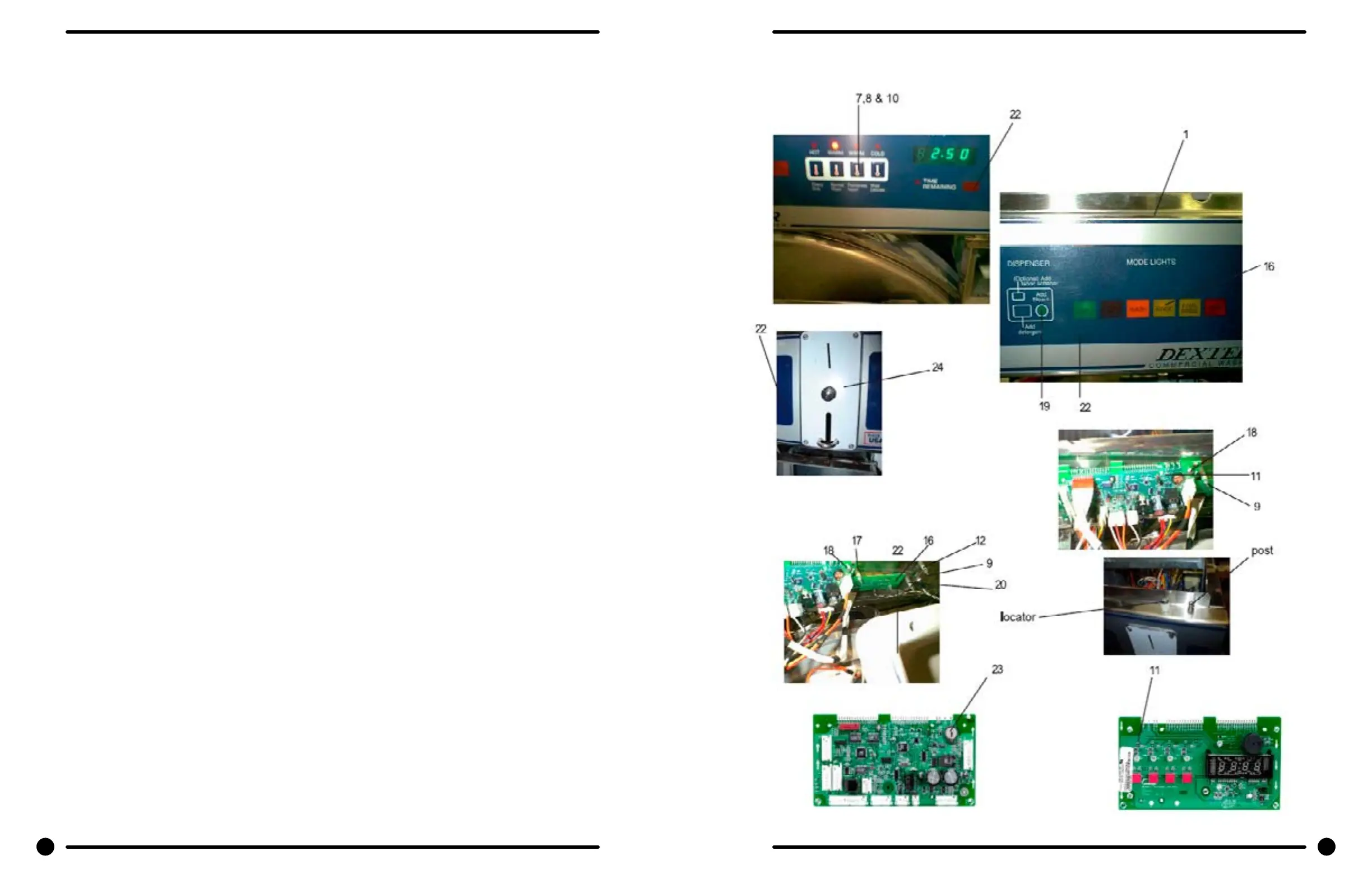

Dexter Laundry V-Series User Manual

Control Panel Group by Part #
Key Part Number
1 9989-473-001
1 9989-474-001
1 9989-475-001
1 9989-476-001
* 9545-008-026
* 9467-024-001
* 8640-411-003
* 9355-001-001
* 9545-008-023
7 9538-178-001
8 9486-150-001
9 8640-424-002
10 9035-060-001
2 9185-008-001
11 9473-004-001
12 9538-157-018
13 8640-411-003
14 9627-797-001
15 9627-791-003
15 9627-791-004
16 9473-004-001
* 9635-022-001
17 9538-157-018
18 8640-411-003
19 9794-001-001
20 9538-157-018
21 8640-411-003
* 9732-122-001
22 9412-114-001
22 9412-113-001
22 9412-112-001
22 9412-115-001
22 9412-130-001
* 9922-011-001
* 8640-412-005
23 8612-001-001
24 9021-001-001
Description
Panel Control Assembly(panel only)WCVD-18-10,WCVD-18-12...................1
Panel Control Assembly (panel only) WCVD-25.........................................1
Panel Control Assembly (panel only) WCVD-40.........................................1
Panel Control Assembly (panel only) WCVD-55,WCVD-75..........................1
Screw, Hxwshrhdundct #10Bx 1/2".........................................................4
Post Locator Top of panel........................................................................2
Nut Hexkeps #6-32.................................................................................2
Locator Panel.........................................................................................2
Screw FillHDCR 10Bx1/2"........................................................................2
Spacer Pushbutton (Micro)......................................................................1
Retainer Pushbutton ( Micro).................................................................1
Nut Hexelasticstop #4-40........................................................................2
Pushbutton Control (coin).......................................................................1
Filler Pushbutton Control.........................................................................4
PCB assembly Control /Display.................................................................1
Spacer Plastic #6x9/16...........................................................................5
Nut Elasticstop #6-32.............................................................................5
Harness LED PCB...................................................................................1
Harness Doorlock WCVD-18,WCVD-25......................................................1
Harness Doorlock WCVD-40,WCVD-55,WCVD-75......................................1
PCB assembly Mode lights.......................................................................1
Mode Lights Backing Window (Optional)...................................................1
Spacer Plastic #6x9/16...........................................................................2
Nut Hexkeps #6-32................................................................................2
Light, LED.ADD BLEACH Assembly...........................................................1
Spacer Plastic #6x9/16...........................................................................2
Nut Hexeps #6-32..................................................................................2
Kit, Coin Box W/Hardware.......................................................................1
Nameplate, Control Panel (one piece) WCVD-40.......................................1
Nameplate.Control Panel (one piece) WCVD-25........................................1
Nameplate.Control Panel (one piece) WCVD-18.......................................1
Nameplate.Control Panel (one piece) WCVD-55.......................................1
Nameplate.Control Panel (one piece) WCVD-75.......................................1
Solenoid Ass'y, Door Locking (see Door Lock Group for parts breakdown)..1
Hex Nuts ( mounting solenoid assy. to control panel )...............................4
Battery...................................................................................................1
