Hardware Installation

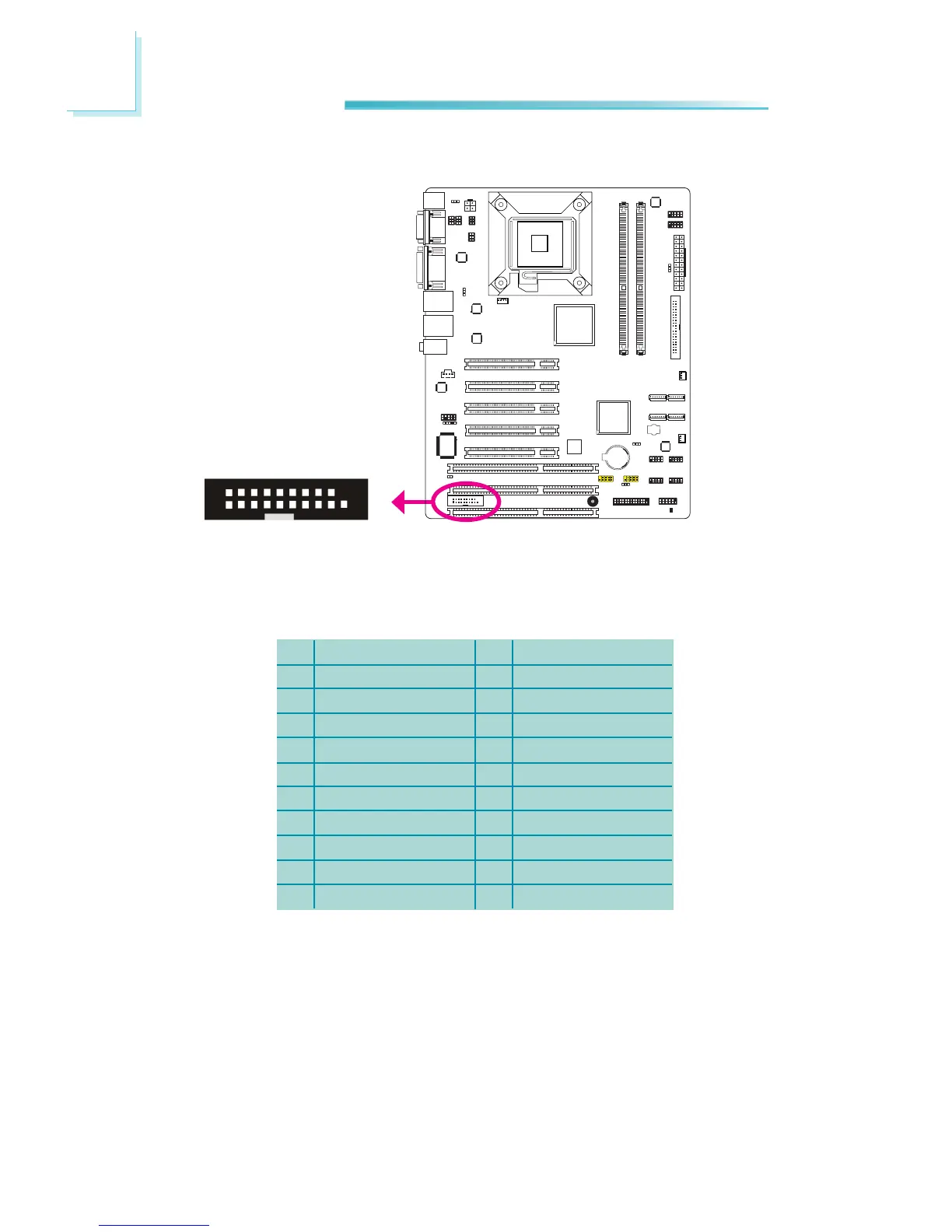

Digital I/O Connector
The Digital I/O connector provides powering-on function to an external device
thatisconnectedtothisconnector.
Pins
1
3
5
7
9
11
13
15
17
19
Function
GND
DIO7
DIO6
DIO5
DIO4
DIO3
DIO2
DIO1
DIO0
GND
Pins
2
4
6
8
10
12
14
16
18
Function
+12V
+12V
GND
VCC
VCC
GND
V_5P0_STBY
V_5P0_STBY
GND
Digital I/O Connector
REV.1
2
1
19
