Hardware Installation
TheVGAportisusedforconnectingaVGAmonitor.Connectthemonitor’s15-pin
D-shell cable connector to the VGA port. After you plug the monitor’scable con-
nector into the VGA port, gently tighten the cable screws to hold the connector
inplace.
BIOS Setting
Congure the onboard VGA in the Advanced Chipset Features submenu of the
BIOS.Refertochapter3formoreinformation.
Driver Installation
Installthegraphicsdriver.Refertochapter4formoreinformation.

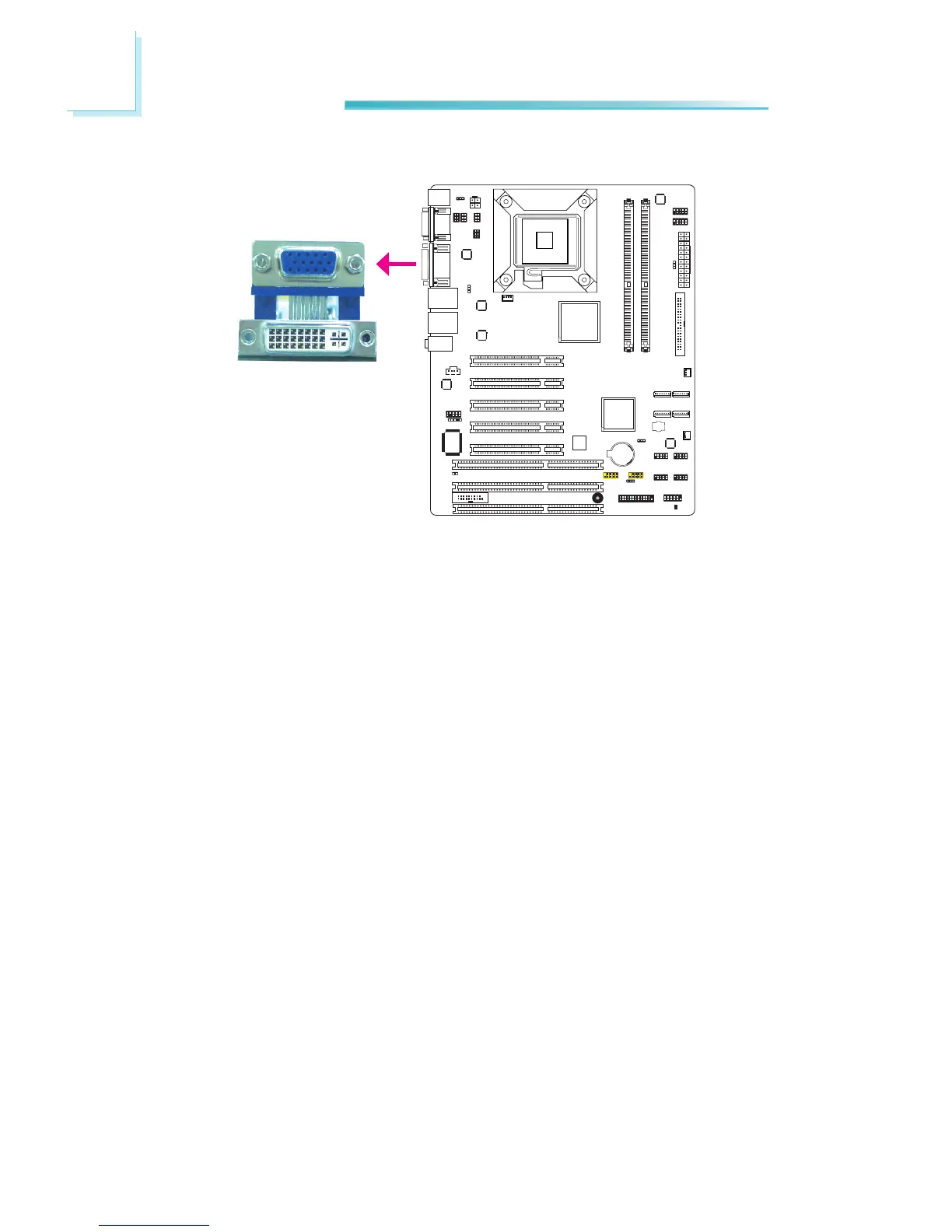

VGA Port
VGA
