2.1.13. External Power Supply

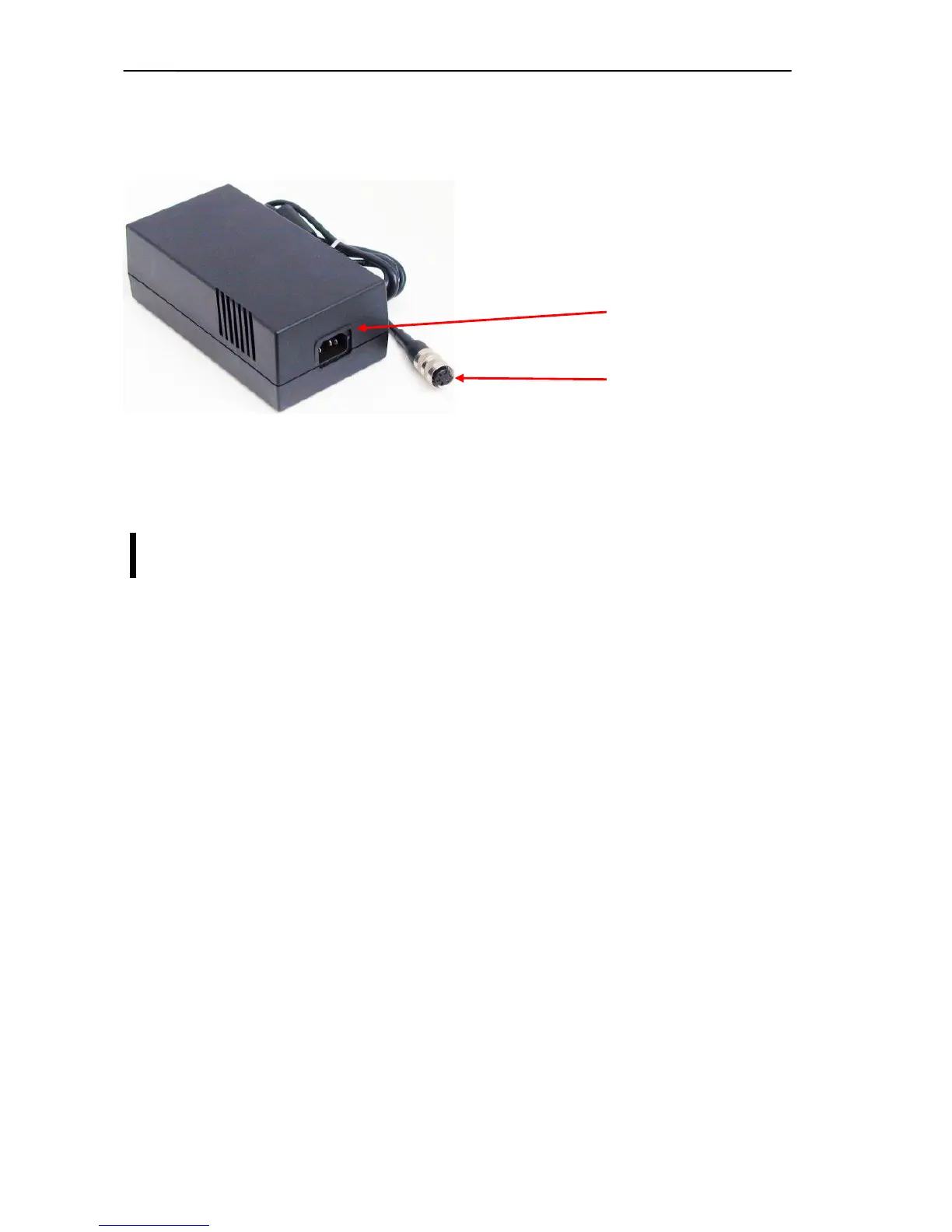

The analyzer works with an external power supply. The next figure shows the power supply unit
generating 12VDC.
The power supply module has an auto range input, allowing usage with 230V or 115V mains
outlet and it has the CE and UL safety certification. The input socket of the power supply is a
standard 3-terminal plug, with power cable connection; the output is a special, lockable socket
as it is shown in the picture.
Use only the provided power supply with the instrument. (“Protek Electronics Corp.”
Model ID: PUP80-12-N8, or ELPAC POWER SYSTEMS model No.:FW8012 )
