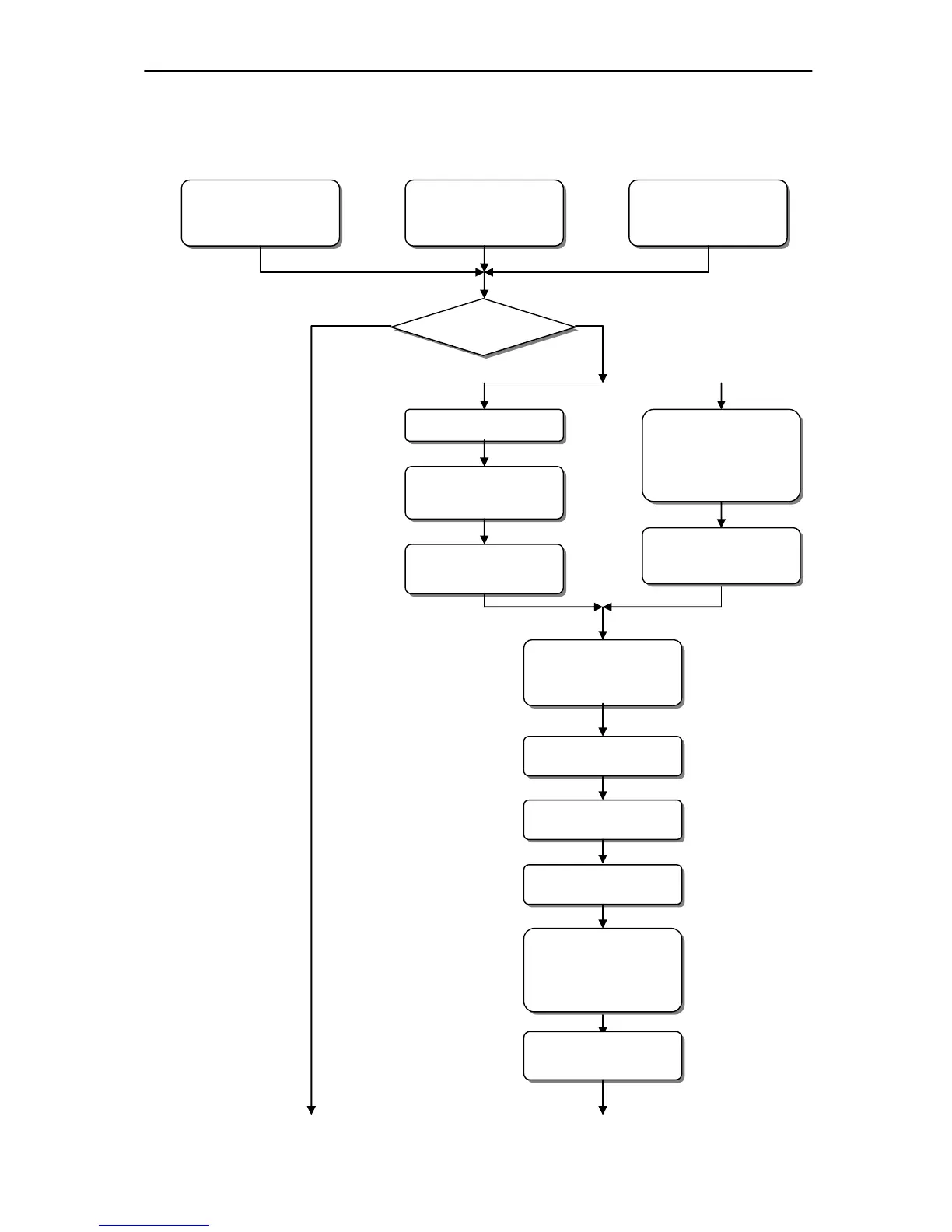

3.1. Flow diagram of measurement
Previous RBC
dilution in chamber
Diluent of washing
process in chamber
(6 ml)
Diluent of standby
state in chamber
(3 ml)
Chamber draining
Chamber flush with
LyseEOS
Fill up with 2 ml
LyseEOS for
dilution
Horizontal motor
moves out, sample
rotor turn in, needle
moves down
Sampling process
(LyseEOS)
Needle washnig,
needle positioning
into the chamber
LyseEOS dilution
(1:160)
Mixing with bubbles
Needle washing
Sampling process
(MIX)
Horizontal motor
moves out, sample
rotor turn in, needle
moves down
3P only?
N
Y
