Digi ConnectCore Hardware Reference Manual

About the development board WLAN interface
ConnectCore for i.MX51 Hardware Reference Manual
121
WLAN interface
Antenna connectors (WLAN)
The development board provides the following connectors for the WLAN interface:
n P12 and P13: these two UFL connectors are used to connect the WLAN interface of the
ConnectCore for i.MX51 to the development board. Two coaxial cables are used for this
connection.
n P14 and P15: these two RP-SMA connectors are used to connect two (primary and secondary)
WLAN antennas

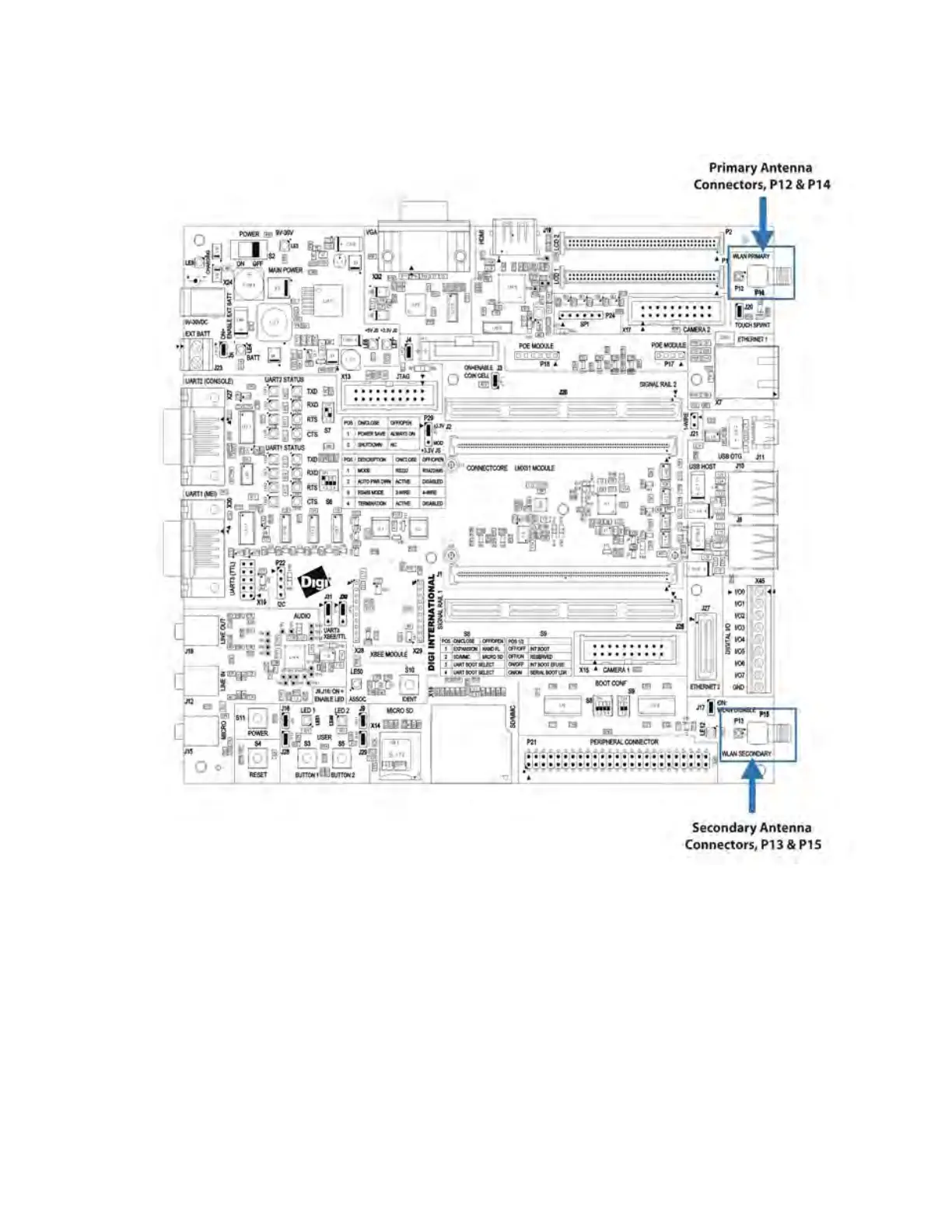

The following picture shows the WLAN antenna connections.
