Hardware Development boards

Digi XBee® 3 Cellular LTE Cat 1 AT&T Smart Modem User Guide

111

Development boards

XBIB-U-DEV reference

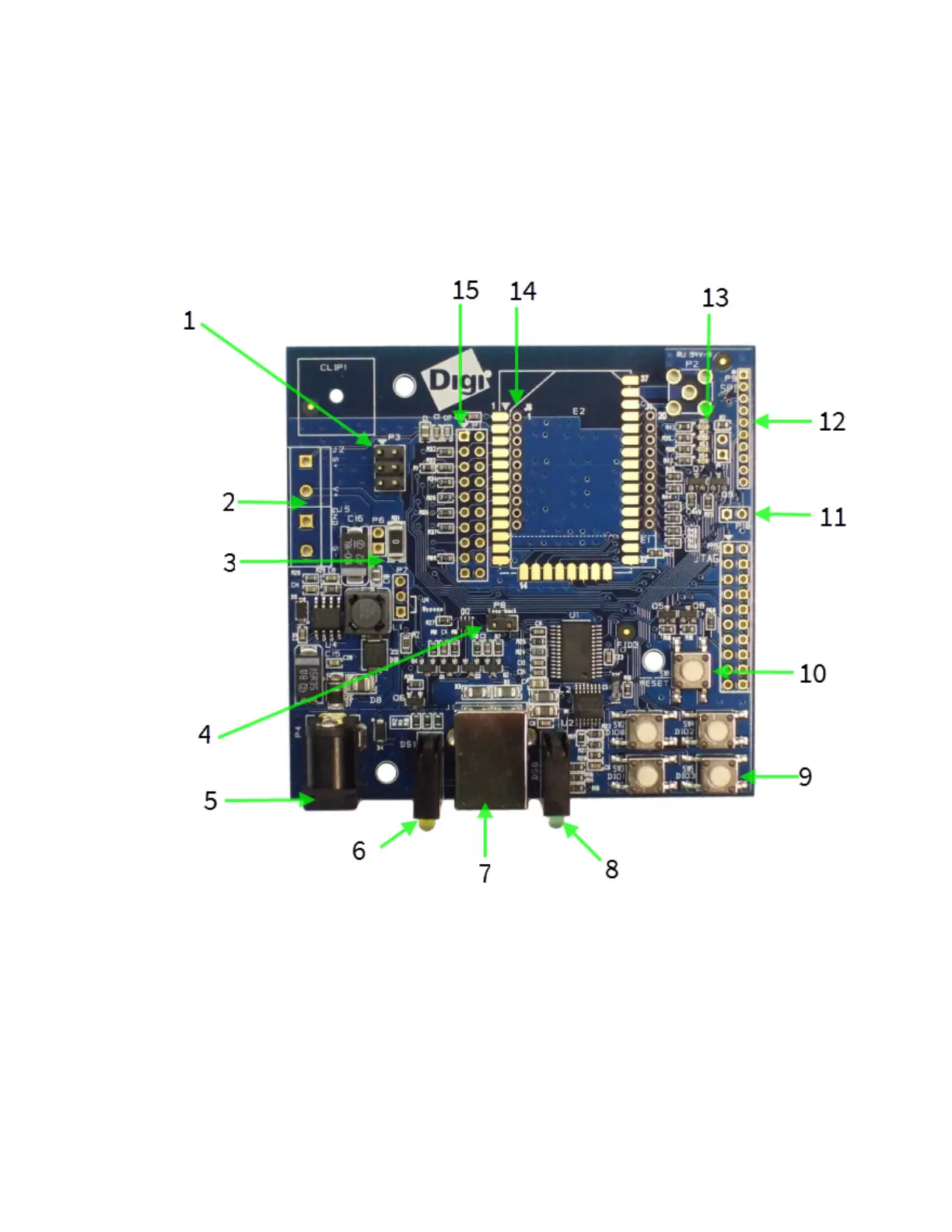

This picture shows the XBee USB development board and the table that follows explains the callouts

in the picture.
