HAPTER

| Management Tools

Resetting the Switch

– 123 –

RESETTING THE SWITCH

Use the Reboot page to restart the switch.

WEB INTERFACE

To restart the switch, click Tools, Reboot, then click the Reboot button.

The reboot will be complete when the web interface displays the login

page.

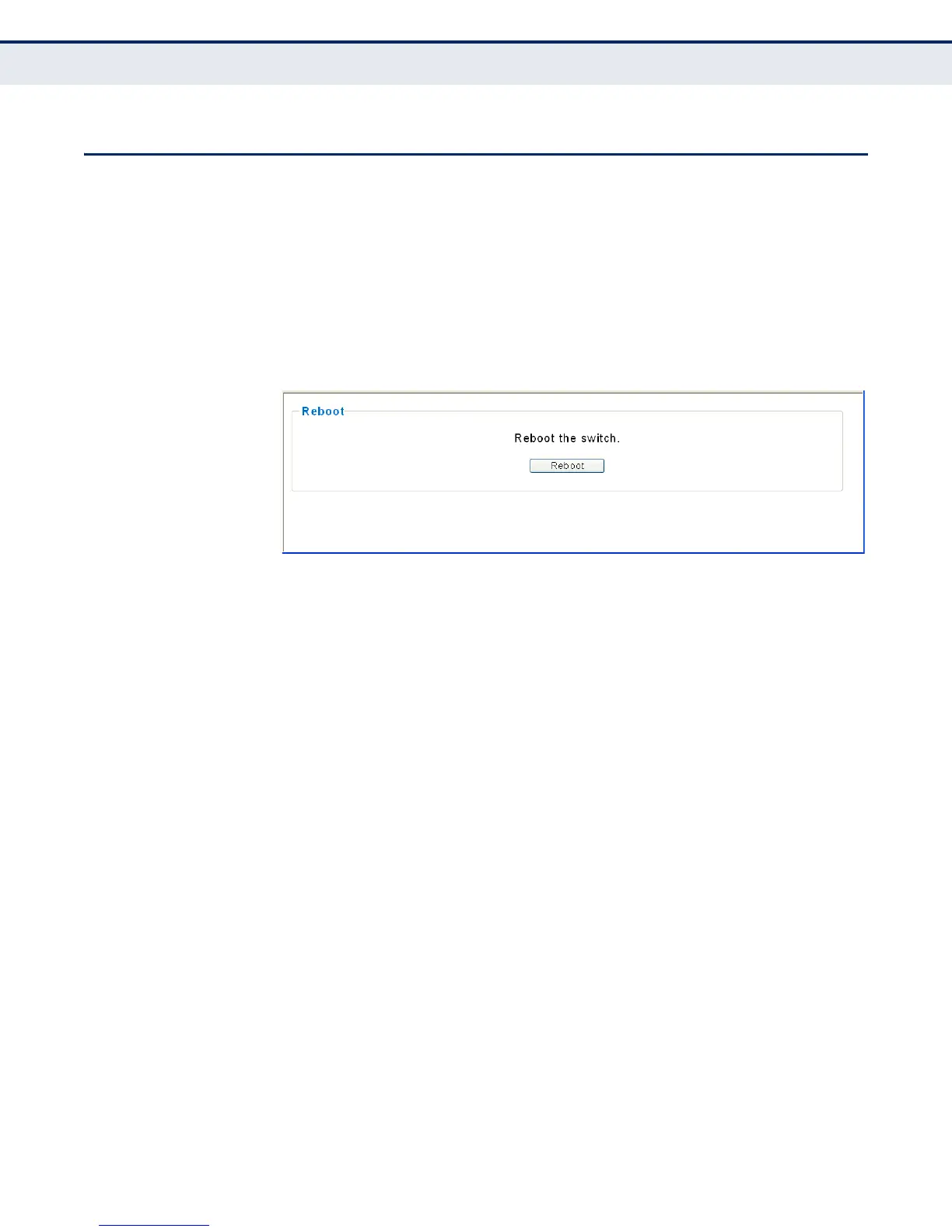

Figure 49: Reboot Switch
