Digistar SCALE LINK SL2 - PCB and Wiring Connections; Pcba

8 Scale Link 2 Technical Manual D4204-EN

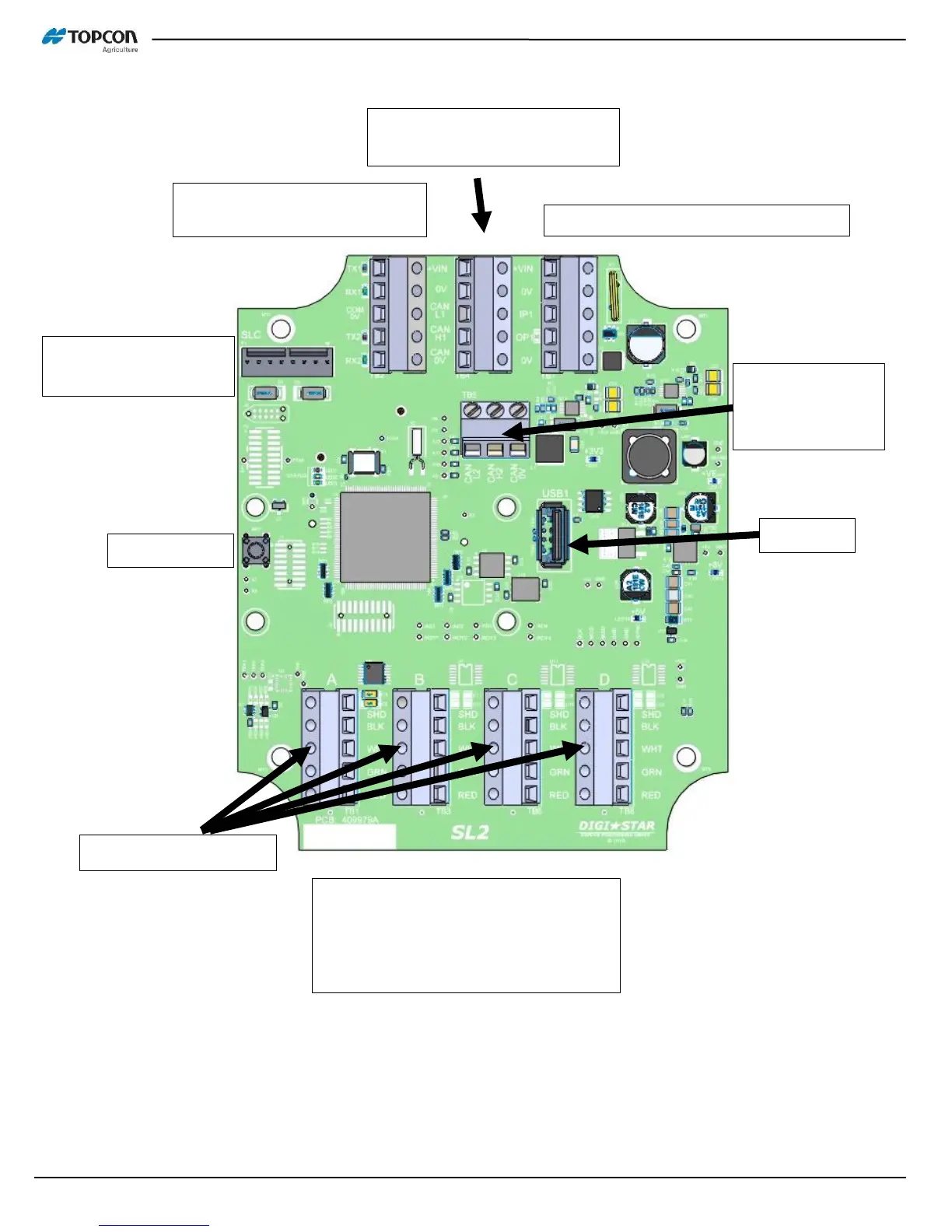

PCB AND WIRING CONNECTIONS
PCBA
RS232 COM1 & COM2, COM
Ground (current limited)
Load Cell connections
USB port
CAN2 port,
CAN2 Ground
(current limited)
Reset button
SLC/ Remote Port
(SPI bus - proprietary)
Power, CAN1/ ISOBUS,
CAN Ground (current limited)
ACC Power, Sensor Input, 3A Output
Single scale models: All 4 terminal
connections are SCALE A
Multi-scale models: Each terminal is
a different scale; A, B, C, D
