Digistar SCALE LINK SL2 - Deutsch Connector; Load Cell Connection

D4204-EN Scale Link 2 Technical Manual 9

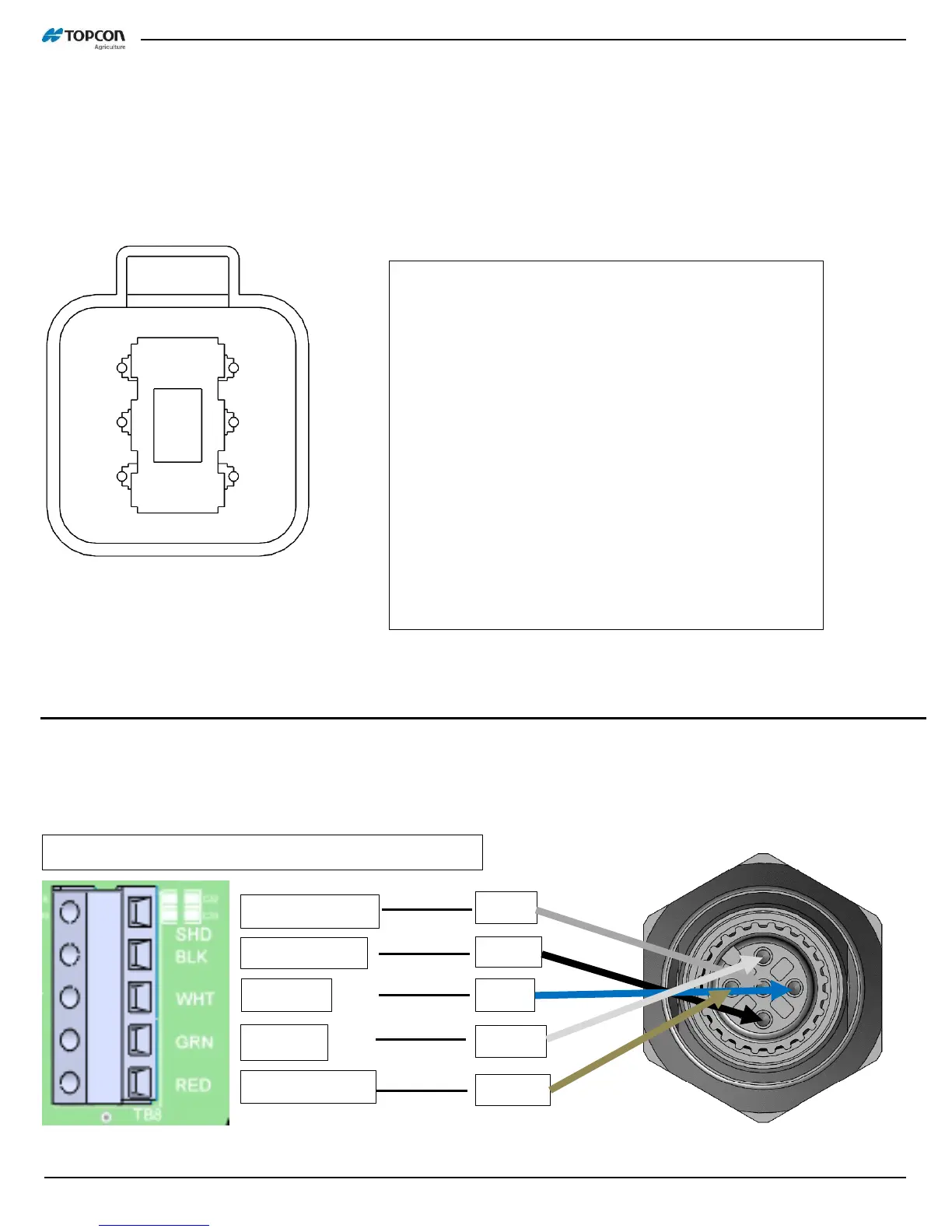

Deutsch Connector
Load Cell Connection
+8V Excitation
6 pin Deutsch Receptacle – Power + CAN1/ ISOBUS
1. +VIN System Input Voltage (Red)
2. CAN1 High (Yellow)
3. 0V System Ground (Black)
4. CAN1 Low (Green)
5. Plug
6. Plug
CAN connection is non-terminated. CANBUS
application requires external 120 ohm termination.
ISOBUS application requires external active bus
termination per ISOBUS standards.
0V Excitation
- Signal
Shield/ Ground
Gray
Black
Blue
White
Brown
Load Cell Connections – On Board and M12 EZ Mates
+ Signal
