12 Scale Link 2 Technical Manual D4204-EN
SYSTEM CONFIGURATIONS

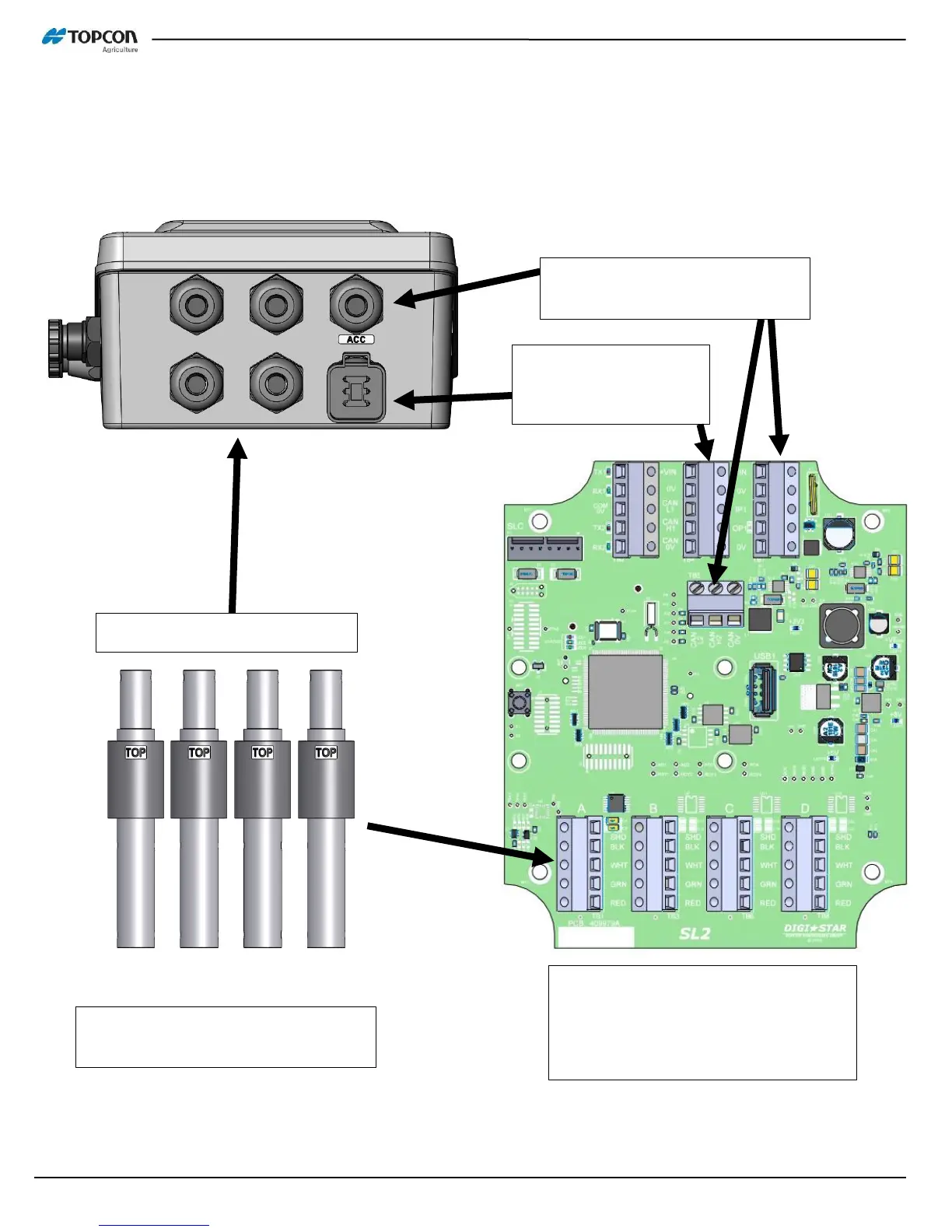

Small box, single 4 Terminal Block scale (410614 SL2110 shown)
4 load cells direct wire into box
Accessory port for options such
as remote input & output control
ISOBUS/ CAN port for
power and primary
communication
Wire in J-boxes to handle additional
load cells up to a total of 16
Single scale models (as shown): All
4 terminal connections are SCALE A
Multi-scale models: Each terminal is
a different scale; A, B, C, D
