DIGITAL-LOGIC AG MSM586SEN/SEV Manual V1.5E
81

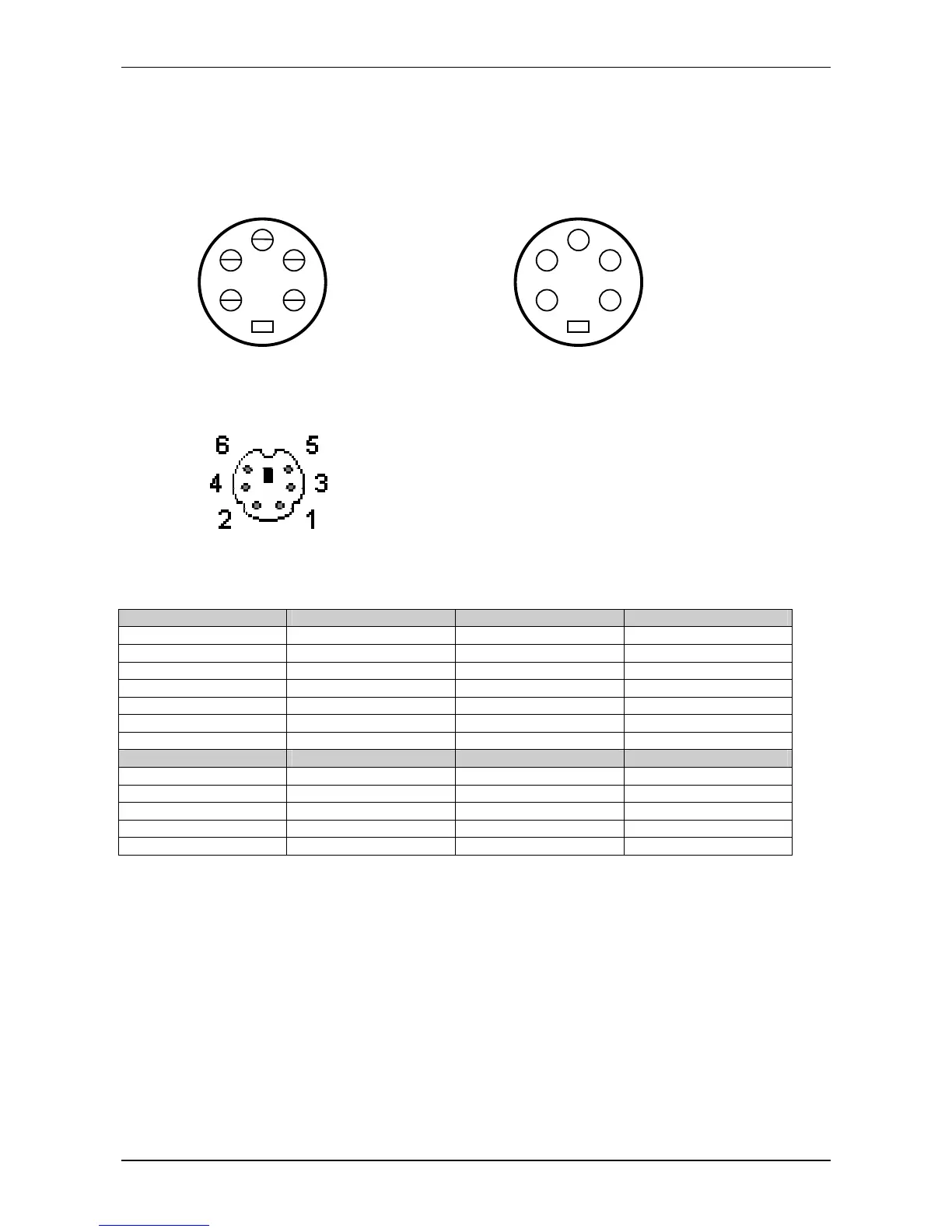

The Utility connector must be wired to a standard AT-female connector:
Frontside AT-Keyboard (female) Solderside AT-Keyboard (female)
Data (2) Data (2)
Ground (4) VCC (5) VCC (5) Ground (4)
(3
Clock (1) Clock (1)
PS/2 Frontside (female)
Connector and adapter
Mini- DIN PS/2 (6 PC) DIN 41524 (5 PC) Remarks
Shield Shield Shield KEYBOARD
DATA 1 2
GND 3 4
VCC (+5V) 4 5
CLK 5 1
Mini- DIN PS/2 (6 PC)
VCC (+5V) 4 MOUSE
DATA 1
GND 3
CLK 5
