Digital Projection E-Vision Laser 4K Series
Installation and Quick-Start Guide
REMOTE CONTROL
Rev A June 2017
11
LENS adjustment
FOCUS IN / OUT: adjust focus.
SHIFT: press and hold this button, then use the Navigation arrow
buttons to move the lens.
ZOOM IN / OUT: adjust zoom.
12
USER PRESET A, B, C, D
Load user presets.
13
ALT
Press and hold this button to access alternative functions for all
buttons with a green label.
14
DVI / DisplayPort2 / numeric input 3
There is no DVI input on this projector.
Use with ALT to select the DisplayPort 2 input.
15
HDMI 2 / HDMI 4 / numeric input 2
Select the HDMI 1 input.
Use with ALT to select the HDMI 4 input.
16
HDMI 1 / HDMI 3 / numeric input 1
Select the HDMI 1 input.
Use with ALT to select the HDMI 3 input.
17
TEST / SWAP / numeric input 0
Show a test pattern. Press again to show the next test pattern:
...Off, White, Black, Red, Green, Blue, CheckerBoard,
CrossHatch, V Burst, H Burst, ColorBar...
When PIP mode is on, use this button with ALT to swap the main and
sub images.
continues on next page...
Notes
3D is only available on the HDMI 3
and 4 inputs.
This projector does not use the
following options on the remote:
DVI, VGA, COMP 1 and COMP 2.

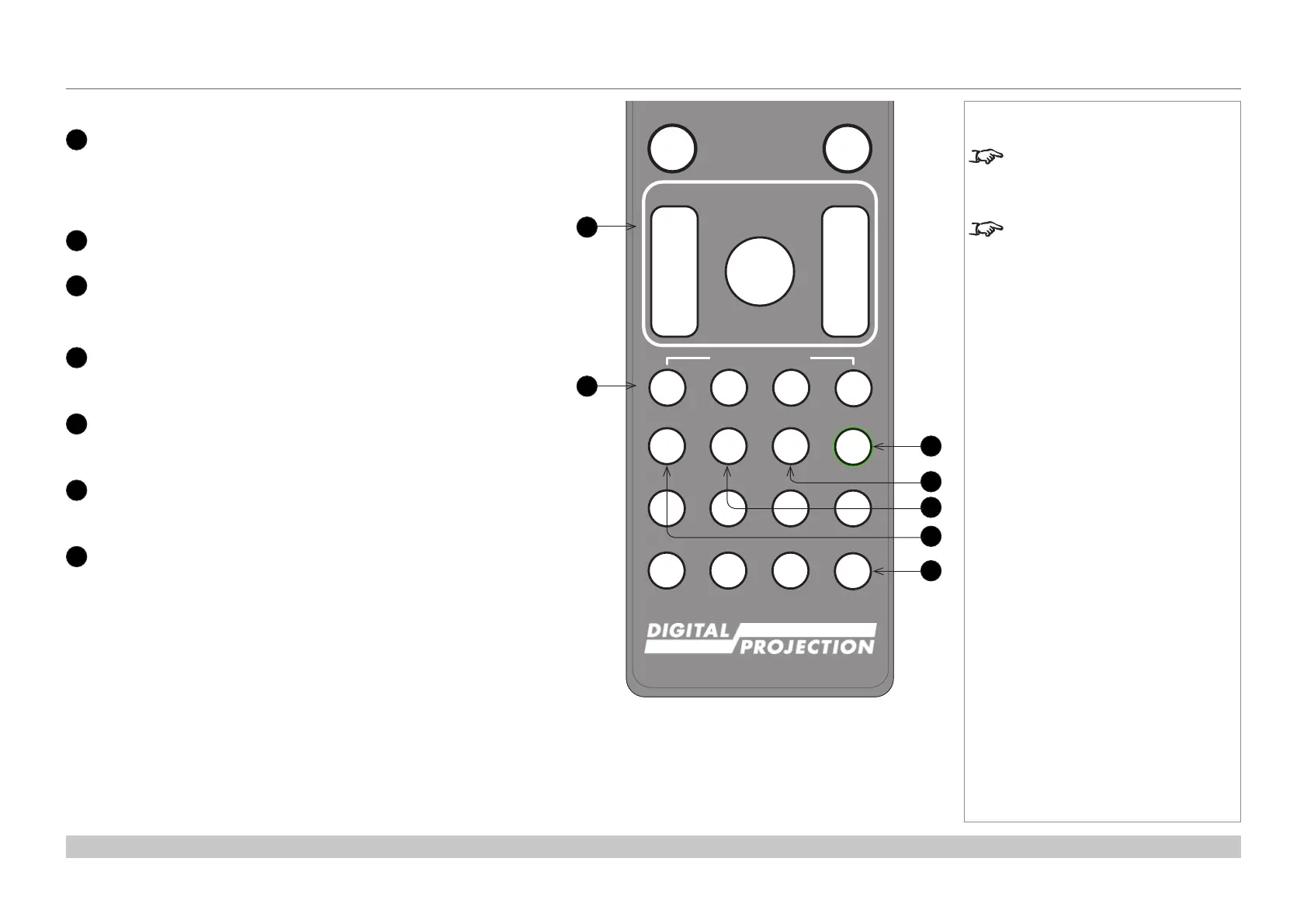

Remote control
Pic Mute
OPEN
CLOSE
MENU
EXIT INFO
HDMI1
OK
OFF ON
ALT
LENS
FOCUS ZOOM
IN
OUT
IN
OUT
SHIFT
21 3
HDMI2 DVI
DisplayPort1 HD-T 3GSDI
VGA COMP1 COMP2
HDMI3
TEST
HDMI4
DisplayPort2
R G B ALL
3D EYE PIP SWAP
4 5 6
7 8 9 0
ALT
ADDR
OSD
OFF
ON
DEFAULT
FREEZE
RE-SYNC
A B C D
USER PRESET
13
11
12
14
15
16
17
