Digital Projection E-Vision Laser 4K Series

Installation and Quick-Start Guide

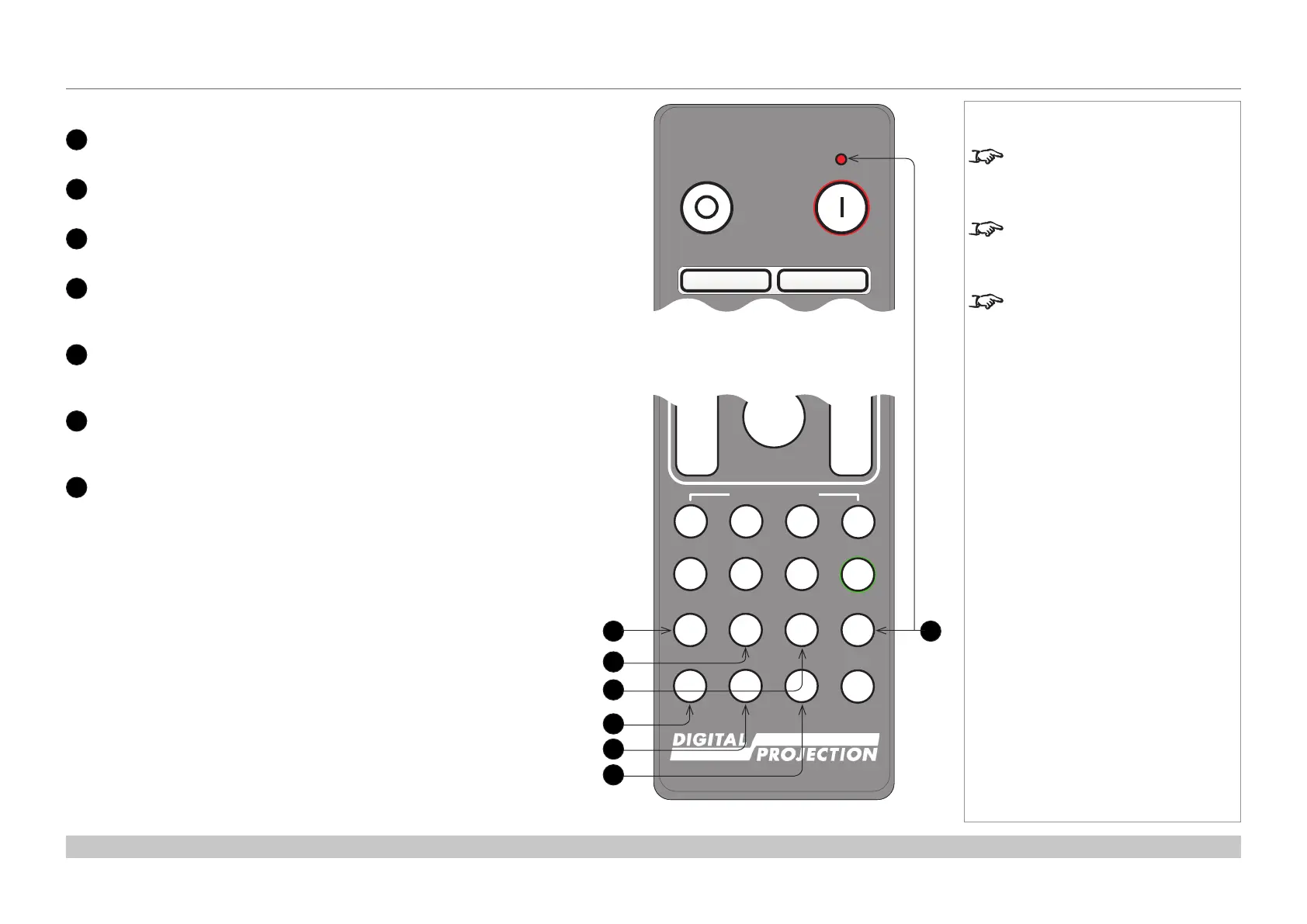

REMOTE CONTROL

Rev A June 2017

DISPLAYPORT 1 / R / numeric input 4

Select DisplayPort 1 input.

HD-T / G / numeric input 5

Select the HDBaseT input.

3GSDI / B / numeric input 6

Select the 3G-SDI input.

VGA / 3D / numeric input 7

There is no VGA input on this projector.

Use with ALT to toggle the 3D Format setting between Off and Auto.

COMP1 / EYE / numeric input 8

There is no Component 1 input on this projector.

Use with ALT to switch between left and right eye 3D dominance.

COMP2 / PIP / numeric input 9

There is no Component 2 input on this projector.

Use with ALT to switch on Picture In Picture (PIP) mode.

ADDR / ALL (with red indicator at the top)

Assign and unassign an IR remote address.

To assign an address:

1. Press and hold this button until the indicator starts ashing.

2. Release this button and while the indicator is still ashing, enter

a two-digit address using the numeric input buttons. The indicator

will ash three times quickly to conrm the change.

To unassign an address and return to the default address 00,

• Press and hold ALT and this button simultaneously until the

indicator ashes to conrm the change.

Notes

PIP is not available when the

projector uses input HDMI 3 or 4.

3D is only available on the HDMI 3

and 4 inputs.

This projector does not use the

following options on the remote:

DVI, VGA, COMP 1 and COMP 2.
