2 - 45DigiGate-700
for Windows
®
- User’s Guide
DigiGate-700
for Windows
®
1. To modify
Feature 1
,
Feature 2
,
or
Feature
3
, Click on the
Features
tab and Select the
proper features from the appropriate list boxes.
Figure 2-88.
NOTE: The following features deal strictly
with systems that have individual door alarms.
If you do not have a complete working
knowledge of individual door alarms and
their set up in the DigiGate-700 for Windows
system, DO NOT CHANGE ANY INFORMA-
TION IN THE DOOR ALARM SECTION!!
You can render your system INOPERABLE!
1. To modify individual door alarms, Click on the
Door Alarm
tab.
2. Select the
Mux
list box and from the list of
boards, Select the correct board. Figure 2-89.
3. For the
Slot
field use the Up or Down arrows at
the right side of the box to increase or decrease
the number in the
Slot
field.
4. To modify the alarm zone, Select the
Alarm
Zone
list box and from the list of zones, Select
the correct zone for this unit. Normally there is
only one zone: “Door Alarms.
5. To modify the unit alarm status, Select the
Unit
Alarm Status
list box and from the list, Select
the correct status for this unit.

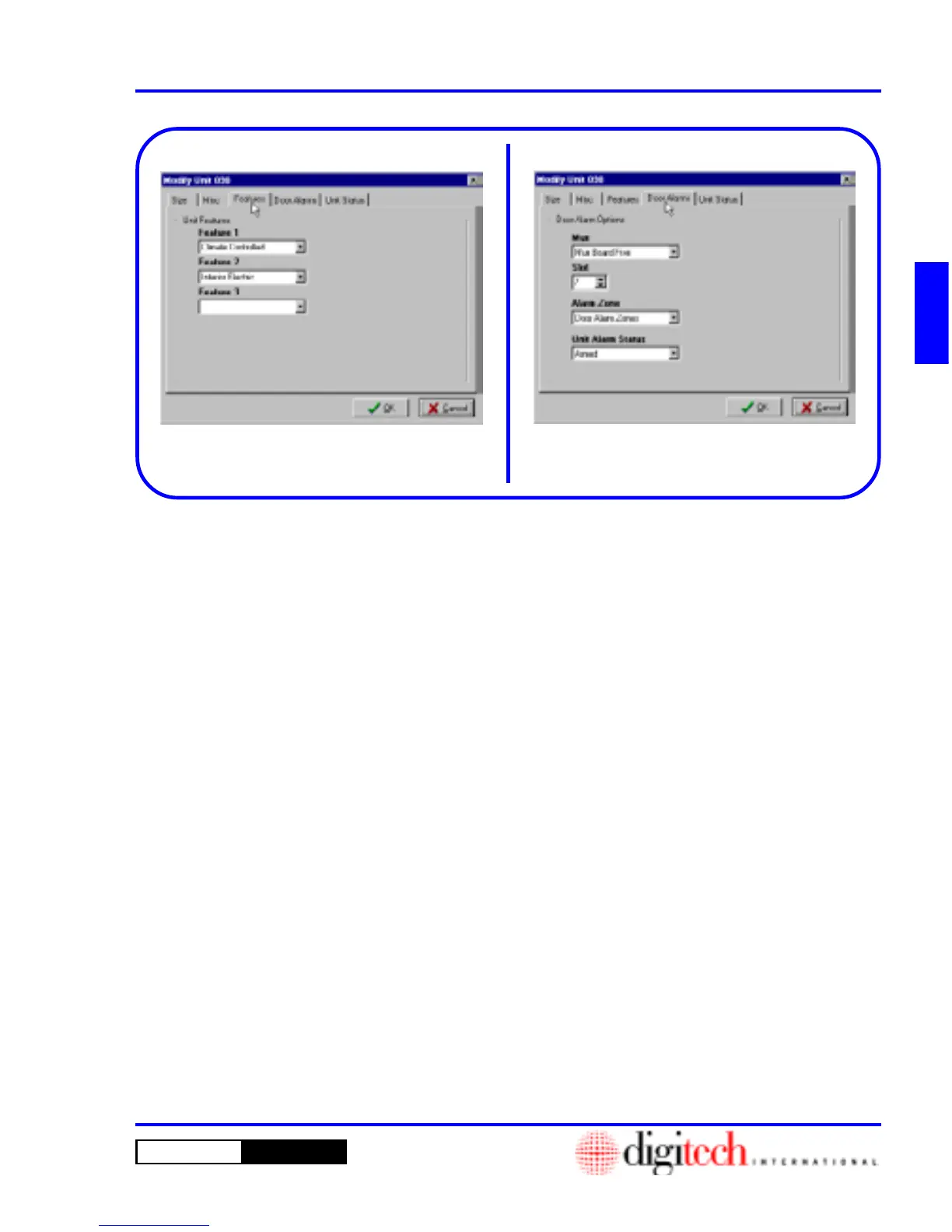

Figure 2-88 Figure 2-89
Features Door Alarms
