DigiTech DigiGate-700 User Manual

3 - 24 Operating Instructions
DigiGate-700
for Windows
™ ®
2. This will open the Open Gates window.

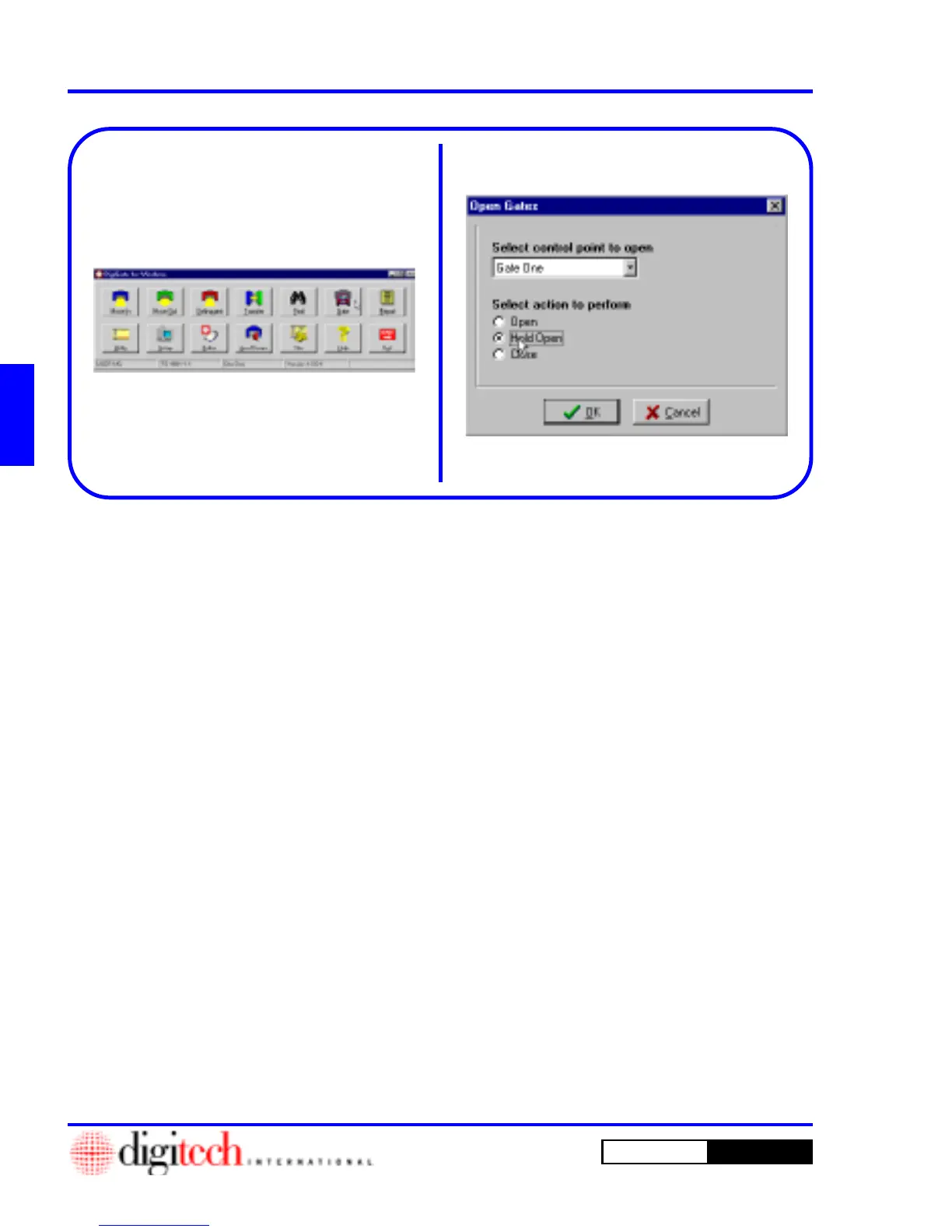

Figure 3-47.
3. The Select action to perform radio buttons
have three options: Open , Hold Open , and
Close which are described above. Select one
of these. Figure 3-47.
1. From the Main Menu , Click on the Gate
button. Figure 3-46.
Figure 3-46
Figure 3-47
Gate (Operate the Gate)
The Gate option on the main menu opens one window and allows you to open the gate (run through normal
open/close sequence), hold the gate open (lock the gate in the open position), and close a gate that has been
held open.
Only two decisions need be made: which action to take, and which gate to take it on.
