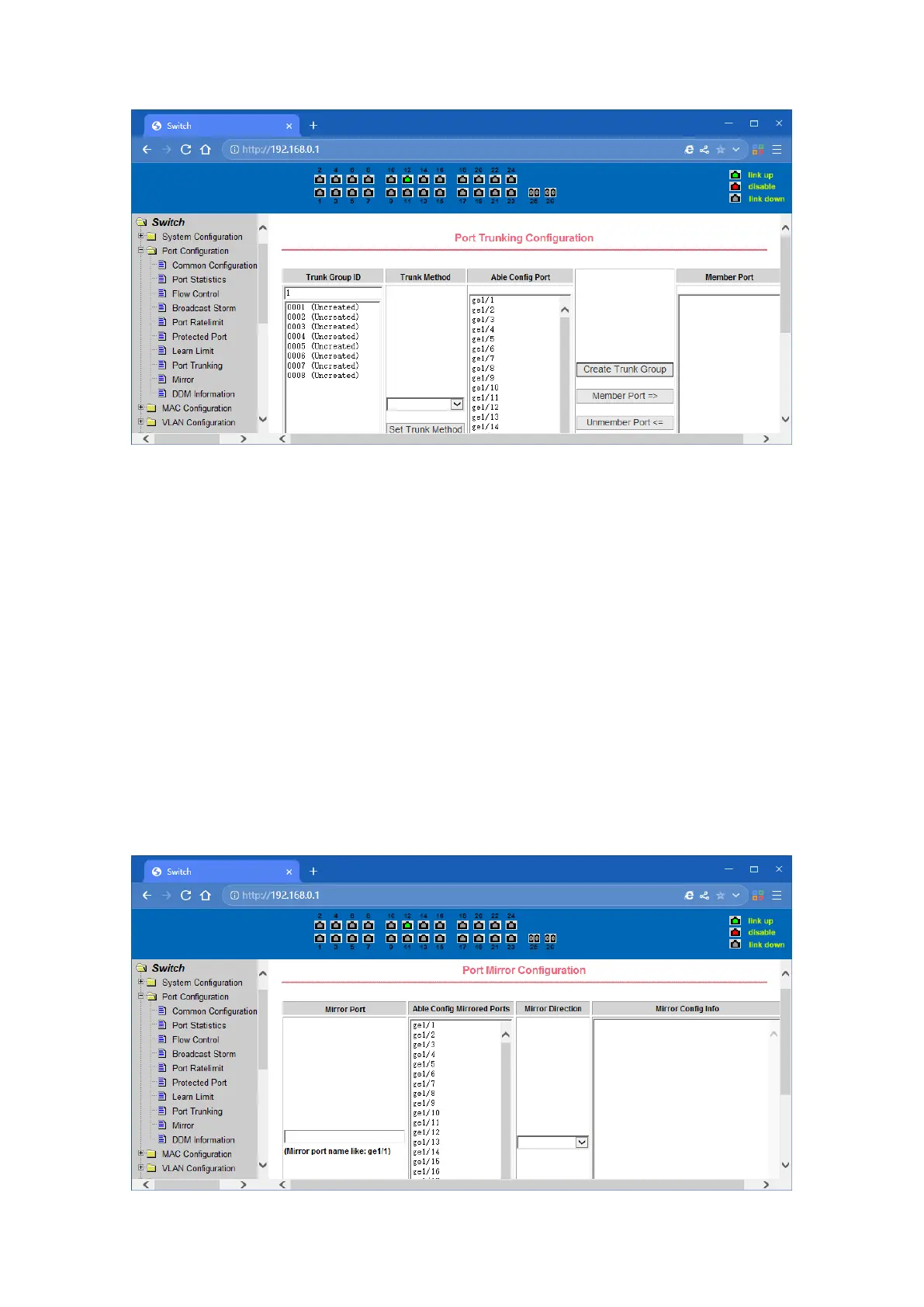

Port Trunking configuration page
（9）Port mirroring configuration page
The page allows users to configure port mirroring. Port mirroring through the mirror port to
monitor the data packets of being mirrored output port and the data packets of being mirrored
input port. Mirroring Port can only choose one, being mirrored output port and being mirrored
input port can select multiple. This page consists of four components: monitor port, configurable
port, monitoring direction and mirror configuration information. When you start to configure a
mirror port, firstly configured mirroring port from monitor ports, mirror ports can only have one,
and then select the mirror port from the configurable port, select the monitor direction, and press
the application key to entry into force, the results are displayed in the mirrored configuration
information.
When choose the RECEIVE in direction of monitor, said monitor data packets received, TRANSMIT,
said monitor data packets sent, BOTH that monitor all data sent and received packets,
NOT_RECEIVE to cancel monitoring received data packets, NOT_TRANSMIT to cancel monitor send
data packets, NEITHER cancel monitor data packets received and sent, that is canceling monitor
port.
Port mirroring configuration page
