（7）Port Learning restrain page
This page used to restrict the port can learn of the MAC address of the number, range is 0-8191.
The default value is 8191, also is the maximum that the port is not configured the learning restrain

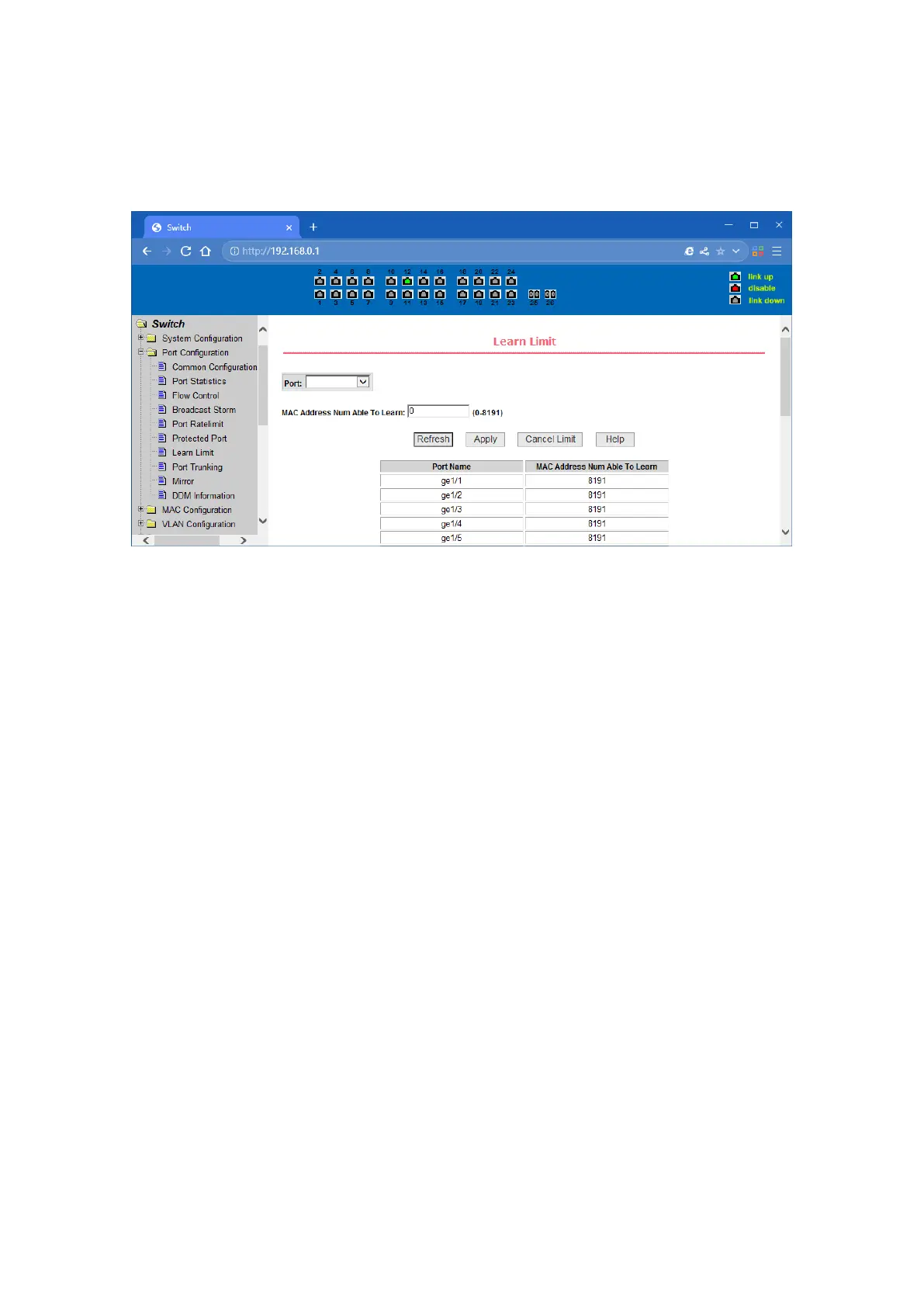

Port Learning restrain page
（8）Port Trunking configuration page
This page allows the user to configure the port trunking. This page consists of four parts: port
trunking ID selection, port trunking method selection, configurable ports and group members’ port.
To create or modify the port trunking, the user needs to select a port trunking ID, port trunking ID
from 1 to 3. The user clicks the list box the appropriate port trunking ID, the port trunking of
information displayed in the group port. To create a Trunk group, select the appropriate ID in the
port trunking ID, click the button "Trunk ID Settings." To set the port trunking method, select one
port trunking method, click the button "polymerization Settings." To increase the trunking ports,
the port can be configured to select the trunking port in the configurable, click on "members of
the port =" "key. Aggregation from the existing port to remove a port group member ports in the
trunking port selected, click on "non-member port" = "key. To delete the entire TRUNK group,
then click the "Delete trunk group" button.
In page configuring process, at least one Trunk has been established then polymerization settings
can take effect; configured Trunking method is also applied to all on the Trunk groups; in that
already exist on the Trunk can add or remove Port members; in the absence of the port members
situation can delete a Trunk Group.
Switch provides three kinds of port trunking methods: Based on the source MAC address, based
on the purpose MAC address, based on the source and purpose MAC addresses.
Switch supports maximum 3 groups port trunking, can be configured to a maximum of three Trunk
Group, Trunk1 and Trunk2 cannot trucking Gigabit ports, and each group can be aggregated up to
the same four attributes port. Trunk3 only be aggregated Gigabit ports, and up to 2 Gigabit ports
can be aggregated. Port aggregation method is common to all of the Trunk.
