（5）Port speed limits page
This page is used to configure the port‘s sending and receiving rate
From the Port drop-down bar select the configure ports. Bandwidth control of the send data
packets is used to configure and display the bandwidth control it, the range is 1-1024000, unit
kbits, enter into force after the key press applications. If the port is not configured bandwidth
control, shown as off. Cancel button is used to cancel the corresponding data packet to send
bandwidth control. Receiving data packets is used to configure and display the bandwidth control
of receive data packets control, the range is 1-1024000, unit kbits, enter into force after the key
press applications. If the port is not configured bandwidth control, shown as off. Cancel button is
used to cancel the corresponding receiving data packets bandwidth control

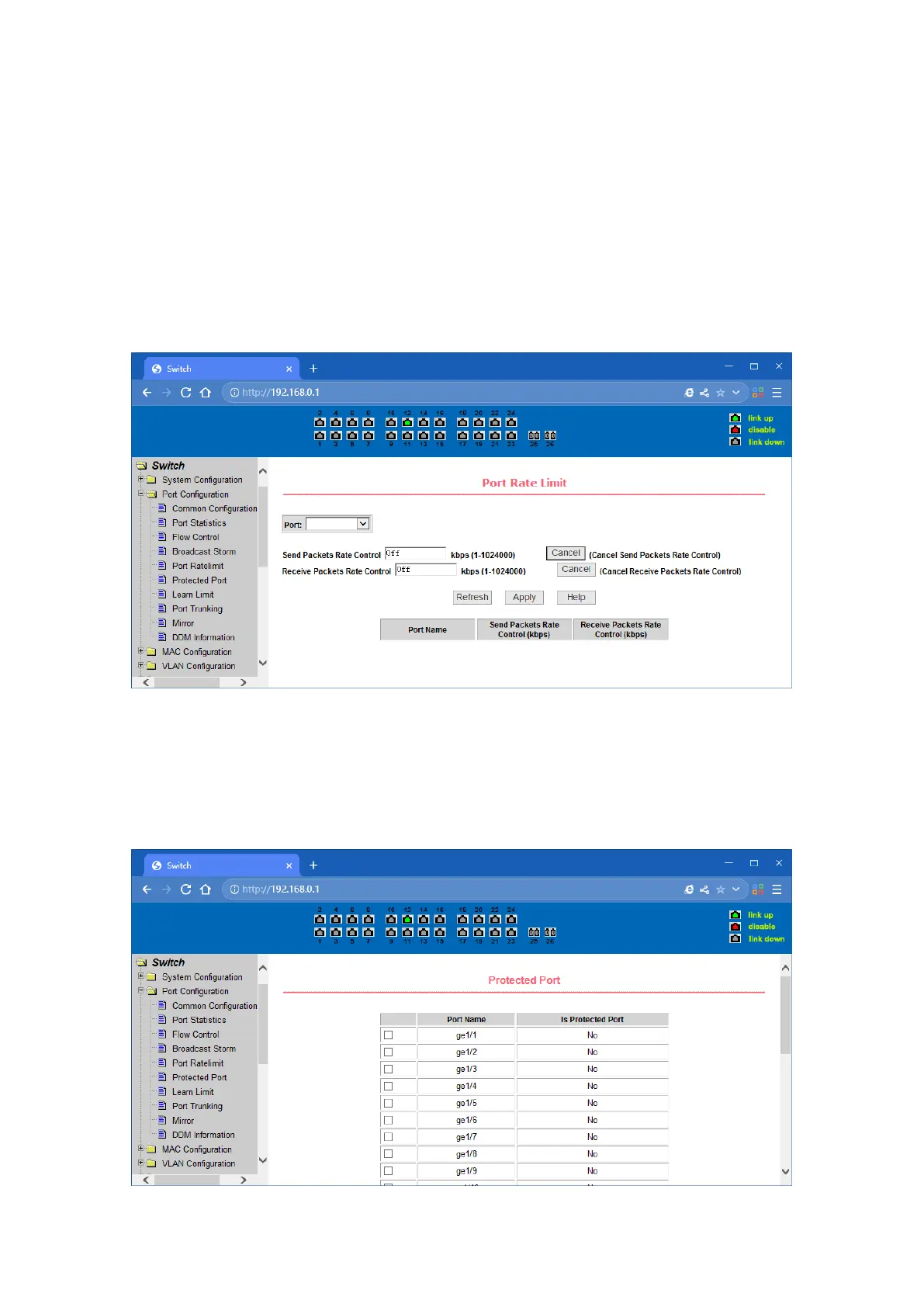

Port speed limit page
（6）Port protection page
This page is used to configure the port for the protection port.
If the port is configured as a protected port, the ports cannot exchange the data with each other,
protected port only with non-protected port for data exchange.
Protected port page
