40

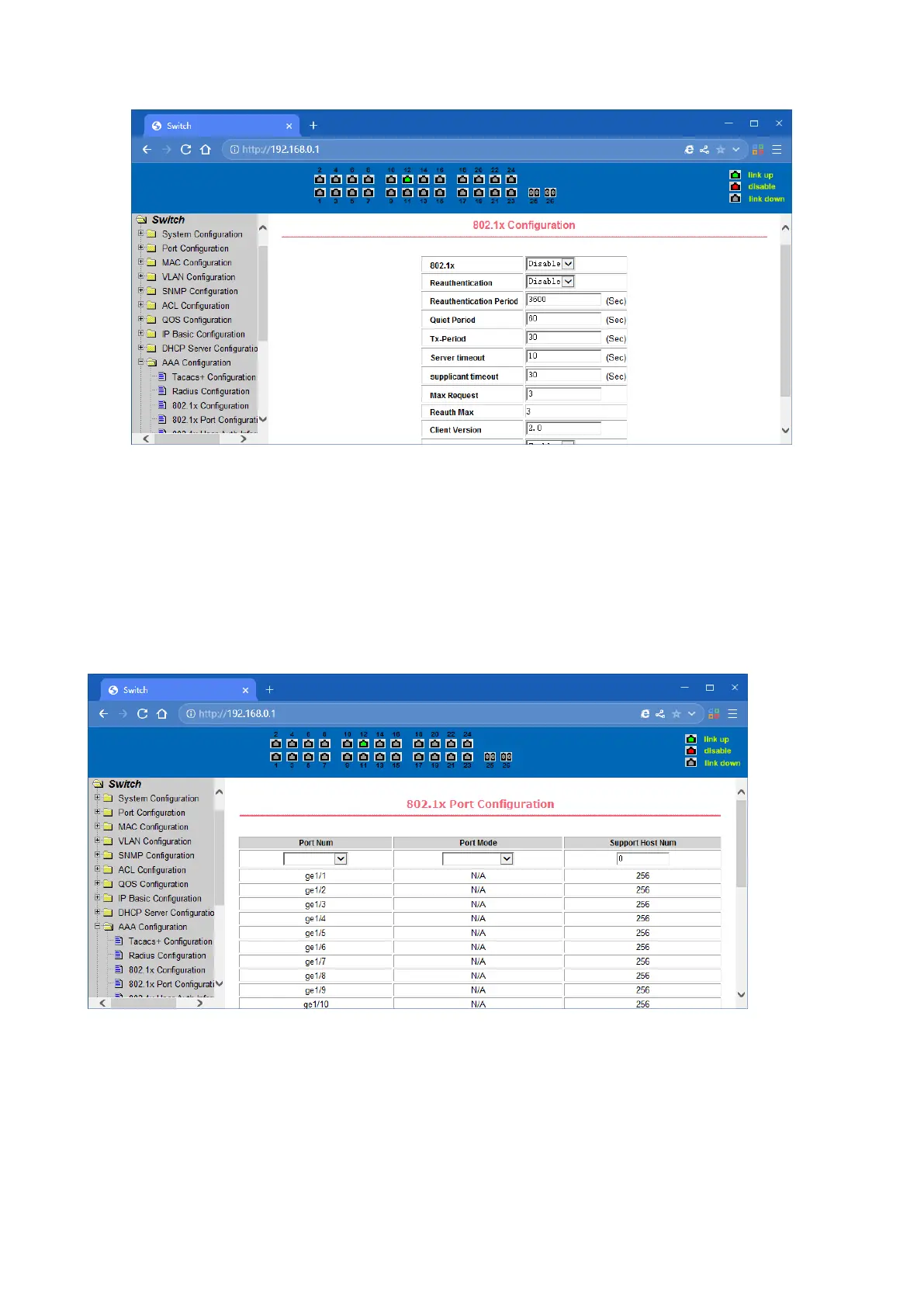

802.1x configuration page
（3）802.1x port configuration page
The user through this page to configure the support 802.1x port mode and hosts of the largest, at
the same time you can view each port 802.1x configuration. 802.1x port model includes four types:
N / A State, Auto state, Force-authorized state and Force-unauthorized state. When a port needs
to do 802.1x Authentication, need to set Auto state, if not do authentication to access the network,
to set N / A state, the other two states are rarely used in practical applications
802.1x port configuration page
Doing 802.1x authentication, port access, the default maximum host number is 100, the user can
modify this field, the biggest support to the 100.
