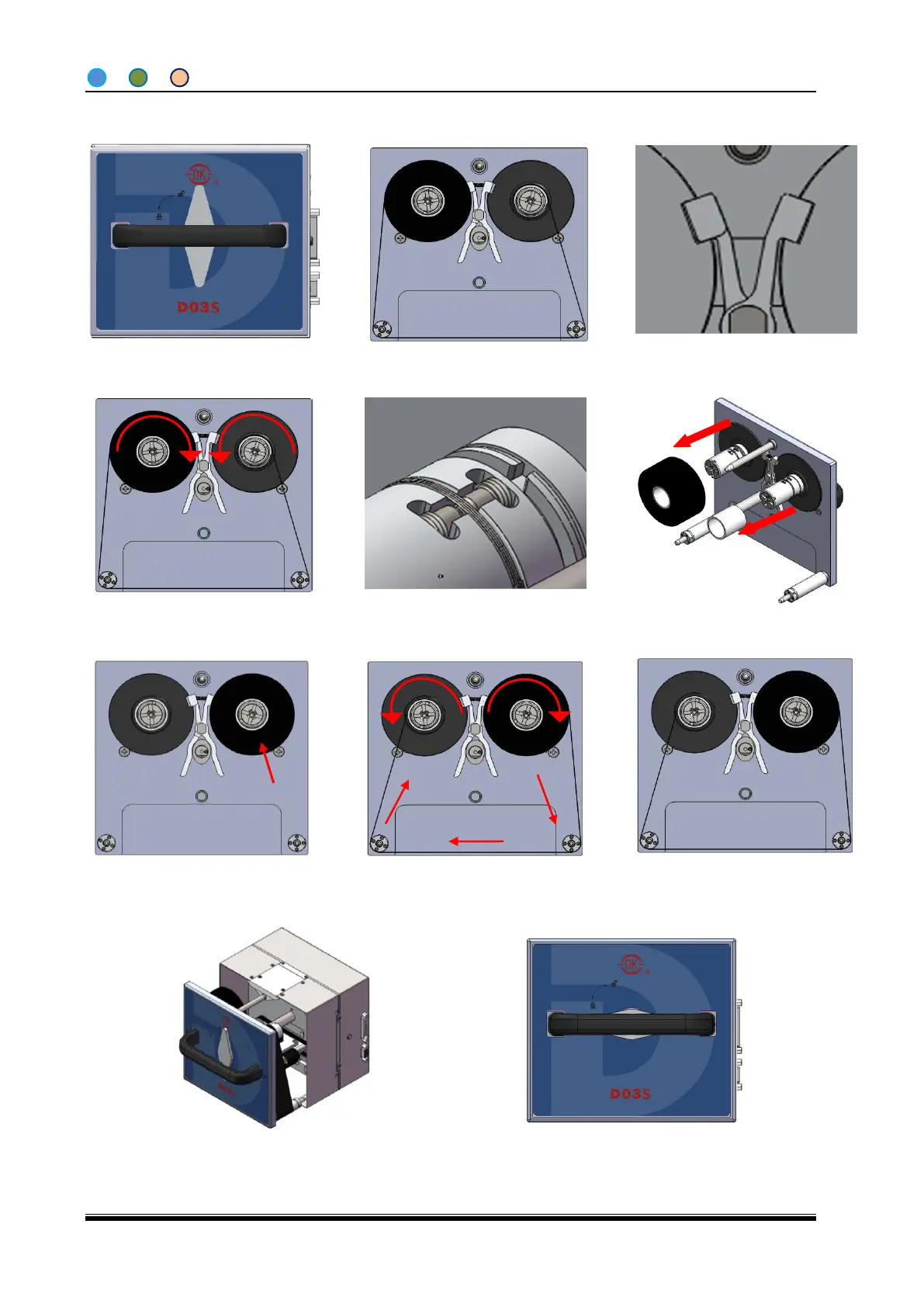

4.9.2 Loading or Replacing TTR (Left-hand Machine)
2. Put the cassette evenly on the
worktable.
3. Lock the Reel on the elastic
lever.
7. Put a new ribbon and core in
Supply Reel Assy as shown.
8. Install the new ribbon refer to
the directions in the picture.
10. Install the cassette as shown.
5. Put tight shaft to the lowest
position.
新色带
4. Rotate the locking sleeve as
shown to unmovable position.
1. Remove the cassette.
9. Tighten the reel to make a
proper tension.
6. Take out the used TTR as
shown.
11. Lock the cassette
new
New
