Dikai DK-D03S - LOAD;REPLACE TTR (RIGHT-HAND)

Operation Manual
D0 3 S Thermal Transfer Overprinter
- 67 -

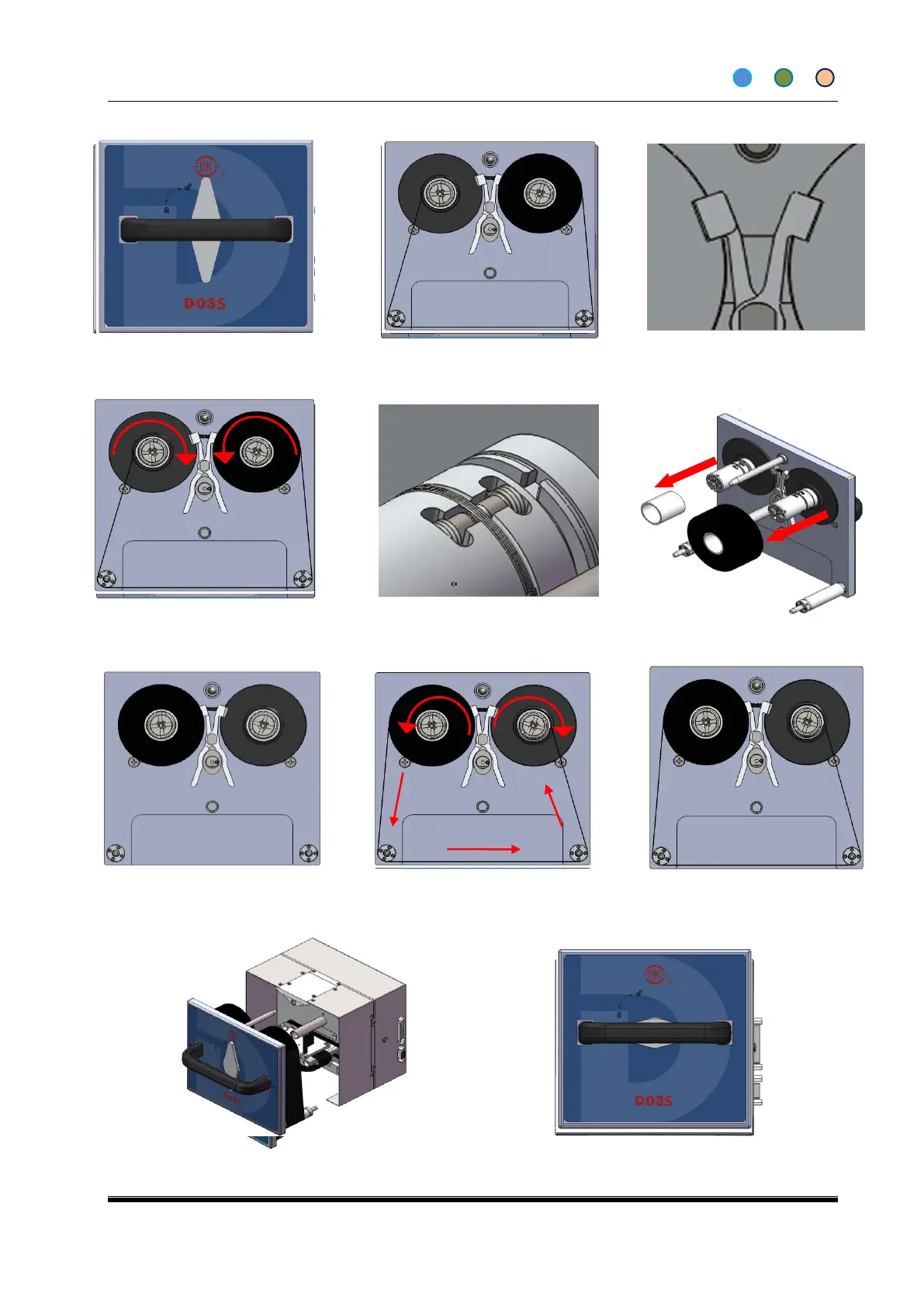

4.9.3 Loading or Replacing TTR (Right-hand Machine)
2. Put the cassette evenly on the
worktable.
3. Lock the Reel on the elastic
lever.
7. Put a new ribbon and core in
Supply Reel Assy as shown.
8. Install the new ribbon as the
directions in the picture.
10. Install the cassette as showed.
5. Put tight shaft to the lowest
position.
4. Rotate the locking sleeve as
shown to unmovable position.
1. Remove the cassette.
9. Tighten the reel to make a
proper tension.
6. Take out the used TTR as
shown.
11. Lock the cassette
New
