OPERATIONAL MANUAL
- 68 - D03S THERMAL TRANSFER OVERPRINTER

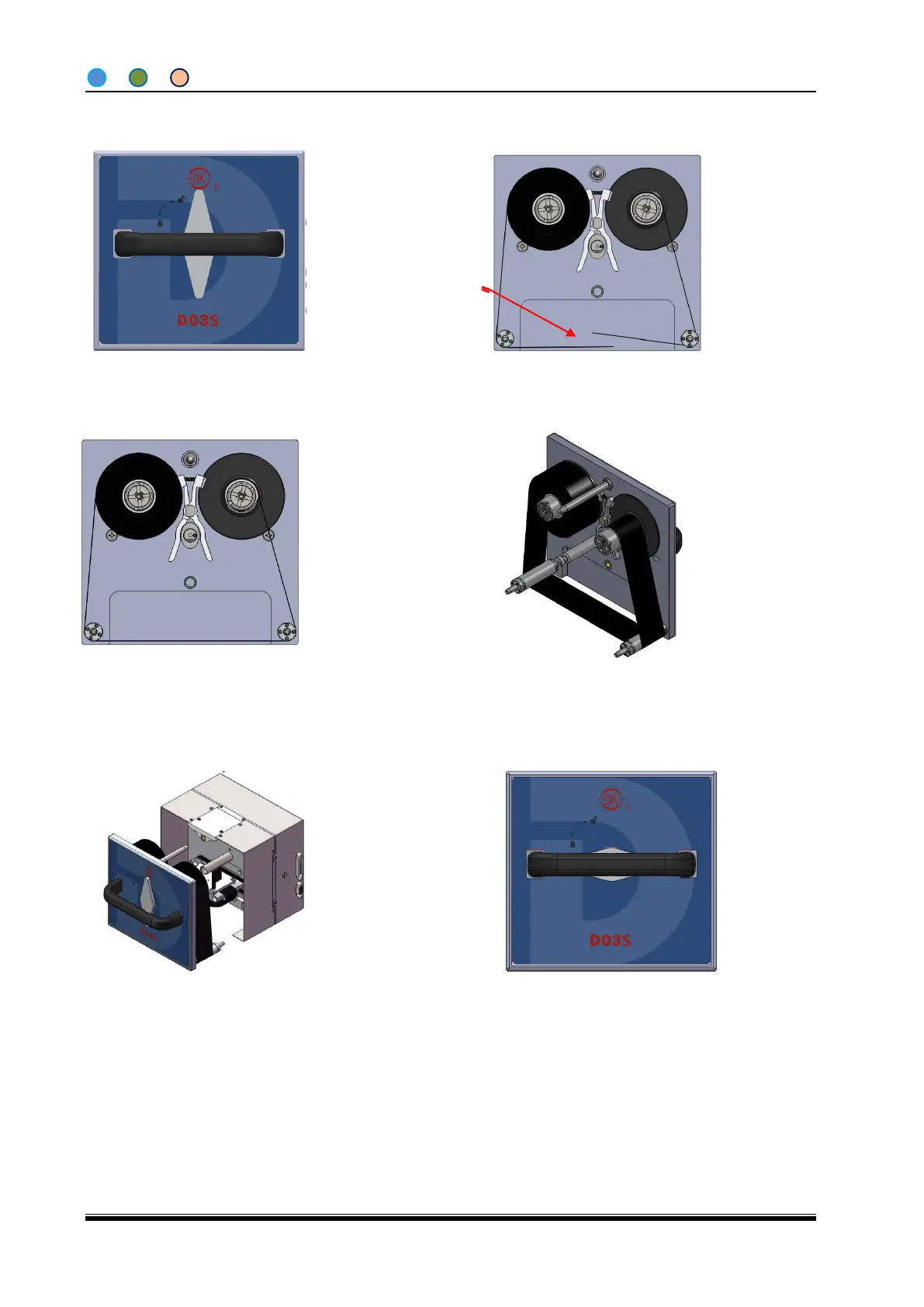

4.9.4 Re-connecting a Broken Ribbon
2. Wind the remaining waste ribbon
onto the waste core.
1. Remove the cassette.
.
5. Install ribbon cassette as
shown.
3. Pull unused ribbon from the
ribbon supply and wind it onto
the waste ribbon take up, by
using double-faced adhesive.
4. Rewind the ribbon and keep the joint
between the two as flat as possible.
To Next Page
