71
www.cndingli.com

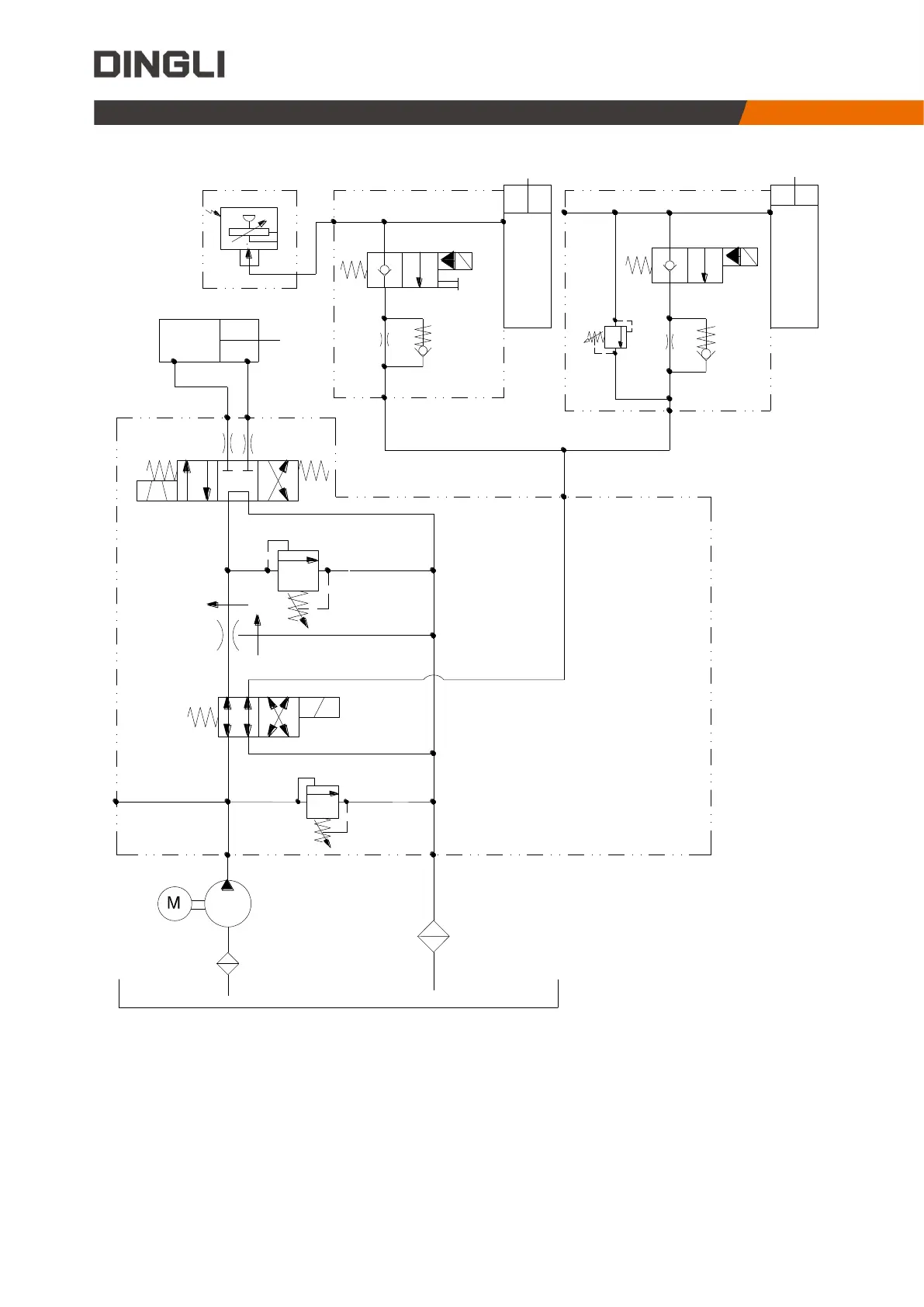

S1012-S1412ACE
P
M
SV2
SV1
S1
S2
L
T
120bar
RV1
IN
SV3
CV1
Pump
Tank
Filter
Function valve
Steer cylinder
Platform loading
(Option)
Lower lift
cylinder
Lower valve
Lower valve
Upper lift
cylinder
Sensor
RV1=150bar(JCPT1212AC)
RV1=190bar(JCPT1412AC)
RV1=220bar(JCPT1612AC)
IN
SV4
CV1
RV2
FR1
RV2
Filter
