UltiMate 3000 Nano and Cap - System Installation and Application
11
For the system structure shown in Fig. 3, Dionex recommends cutting the tubing to the
following lengths:
Tubing from Length (mm)
Solvent rack to pump 215
Pump to detector 133
Detector to flow manager 217
Flow manager to autosampler 272
Flow manager to Tee (for security loop) 140
Pump, detector or autosampler to Tee 30
Connect the drain tubing from the solvent rack to the pump and from the pump to the
detector as shown in Fig. 4 a. Dionex recommends connecting the drain tubing from the flow
manager as shown in Fig. 4 b. This is to avoid that the gas sensor in the flow manager is
influenced by the drain tubing from the other modules. As an alternative, you may direct the
drain tubing from the Tee of the flow manager separately to the waste container. Always
connect the drain tubing from the bottom module as shown in Fig. 4 c.

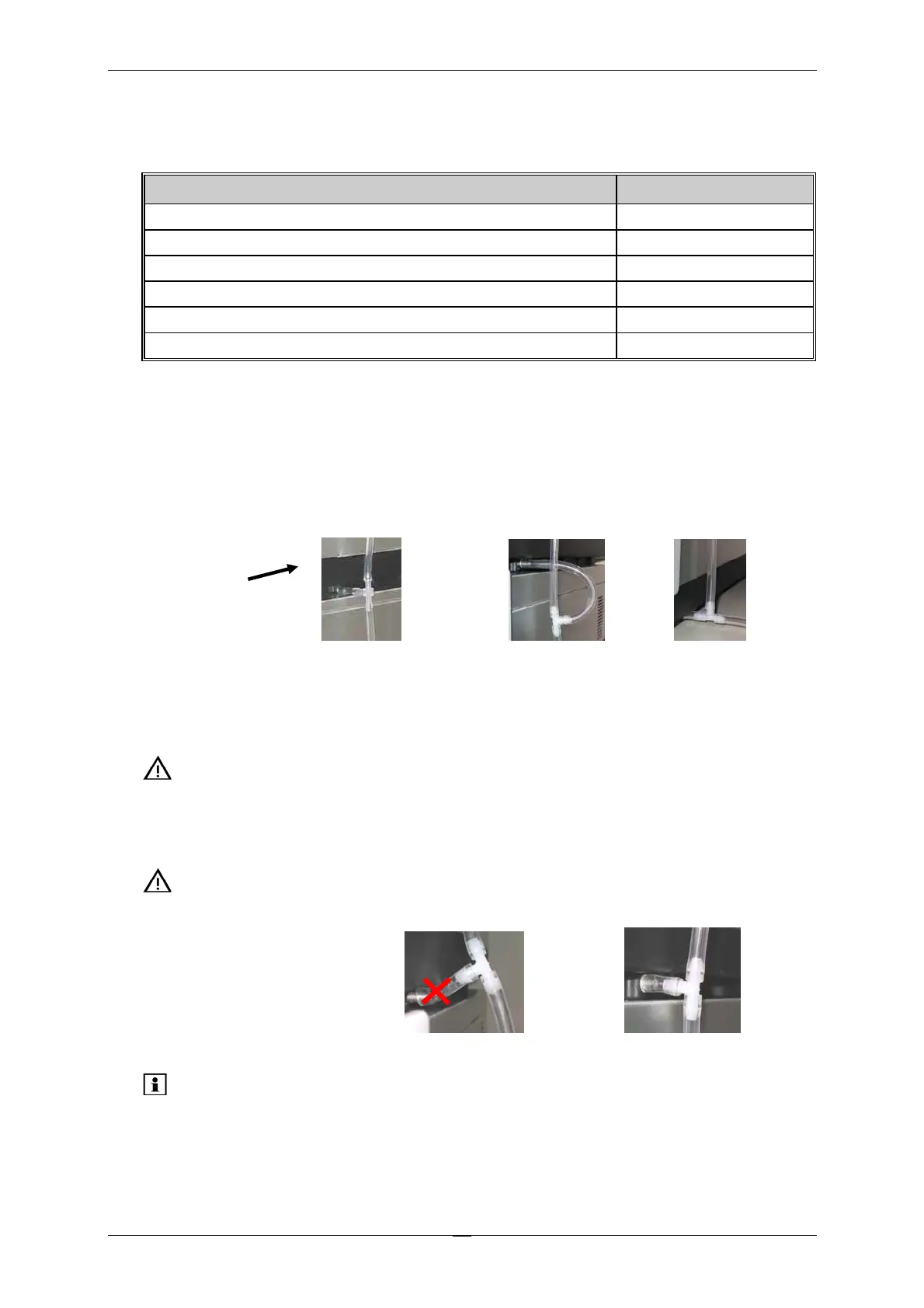

a b c
Fig. 4: Connected drain tubing
Important: The drain tube must remain below the drain port. If the drain tube is
above the drain port, the liquid may flow back into the interior and
cause damage to the instrument. Also, be careful not to use tubing that
is bent.
Important: Afin d'éviter d'endommager l'instrument, assurez-vous qu'aucune
pièce des tubes n'est placée plus haute que le port de raccordement.
Wrong Correct
Please note: In addition to the outlets described above, the flow manager and the
solvent rack are equipped with another outlet on the rear panel. Also,
the flow manager and the WPS-3000T autosampler with temperature
control have an additional outlet at the bottom right (→ Fig. 3). Make
sure to connect all outlets to the required tubing as described in the
Operating Instructions for the devices!
Connecting
piece (Tee)
