UltiMate 3000 Nano and Cap - System Installation and Application
21
Fig. 9 and the related table provide an overview of the fluid connections for direct injection. For
an example of the fluid connections for nano HPLC, also refer to Fig. 10 (→ page 23).

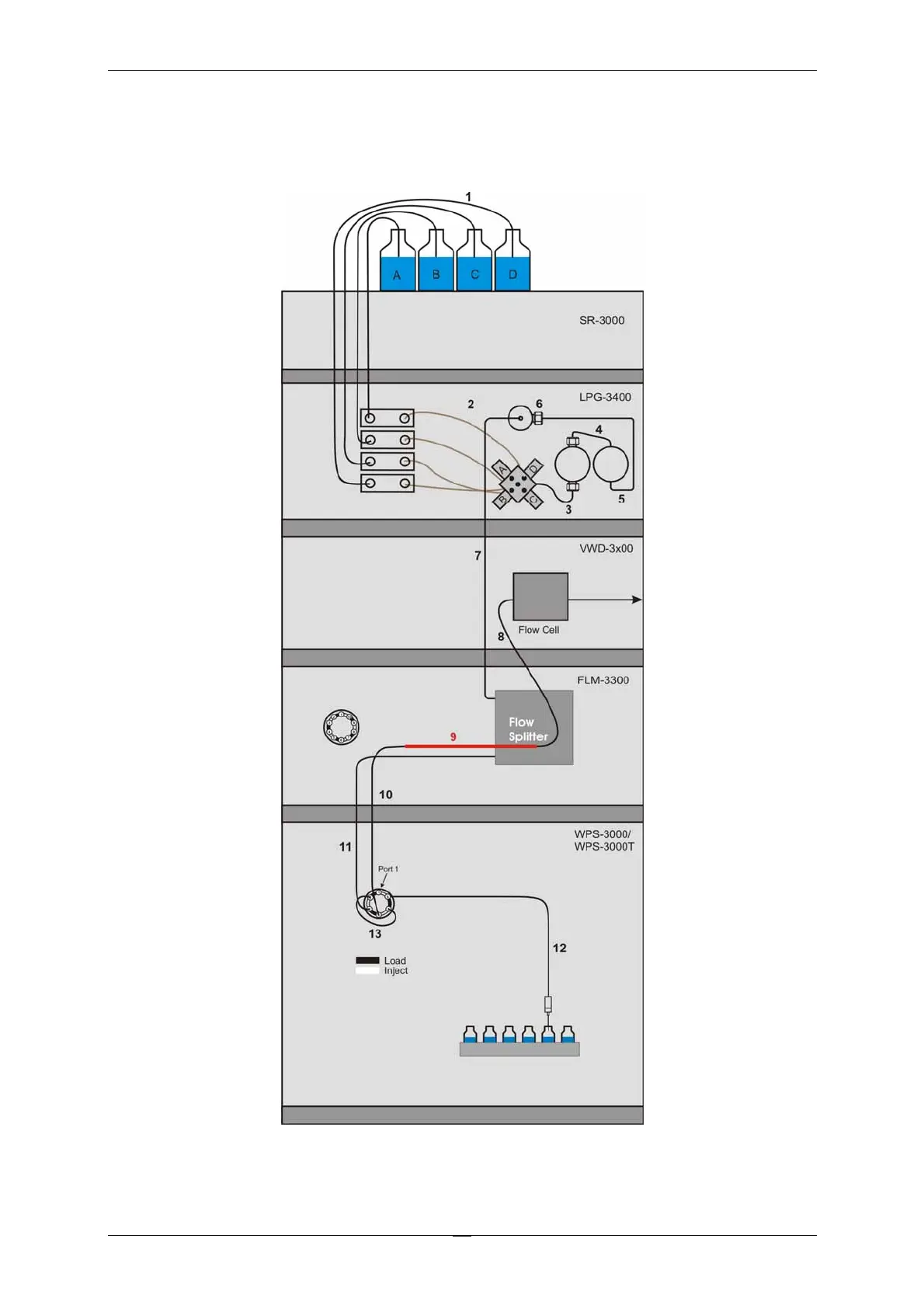

Fig. 9: Fluid connections for direct injection (overview)
