UltiMate 3000 Nano and Cap- System Installation and Application
30
Fig. 15 and the related table provide an overview of the fluid connections for 2D LC salt plug.
Also, refer to Fig. 16 (→ page 32).

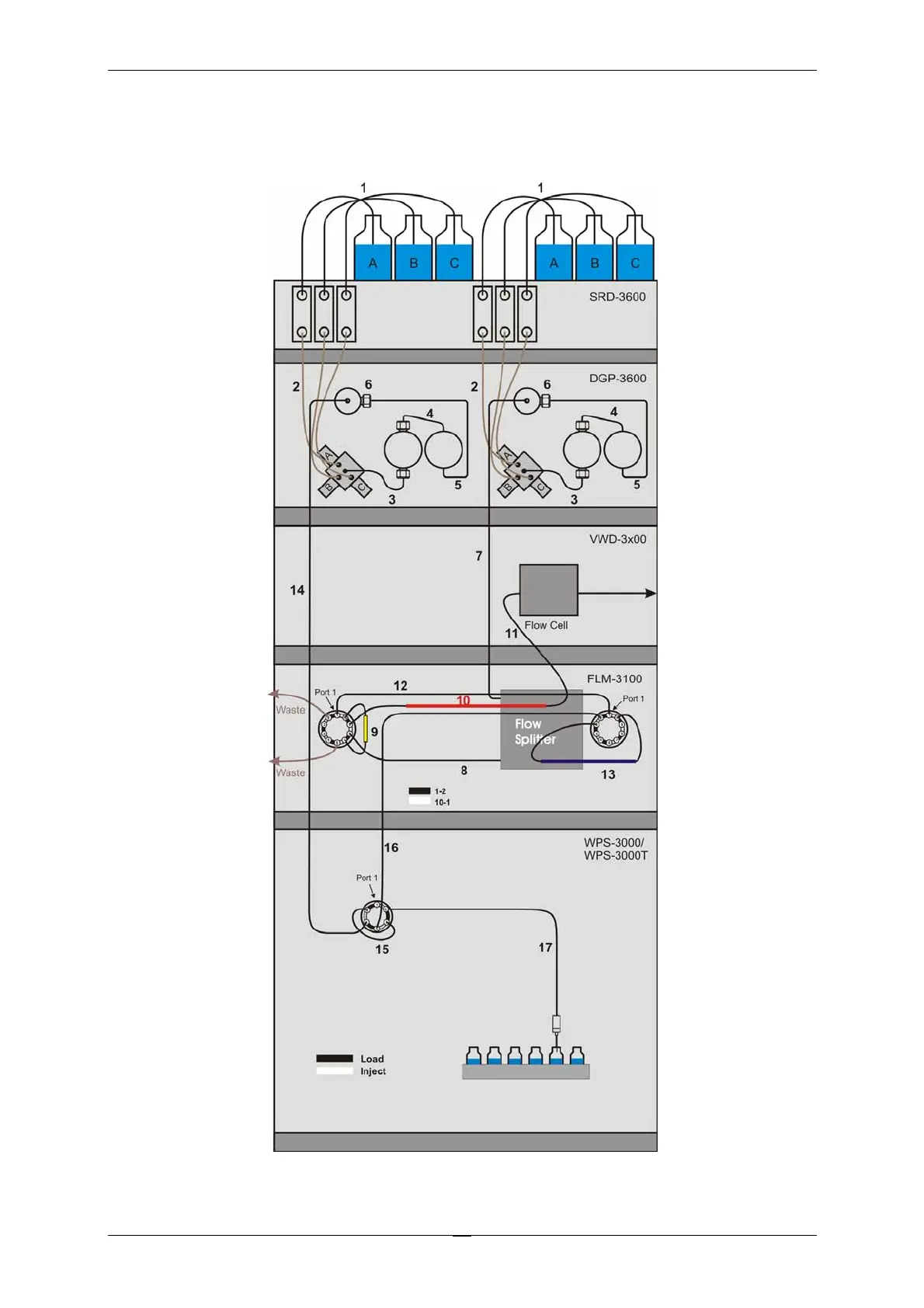

Fig. 15: Fluid connections for 2D LC salt plug (overview)
