Dionex recommends that you arrange the system modules as shown below:

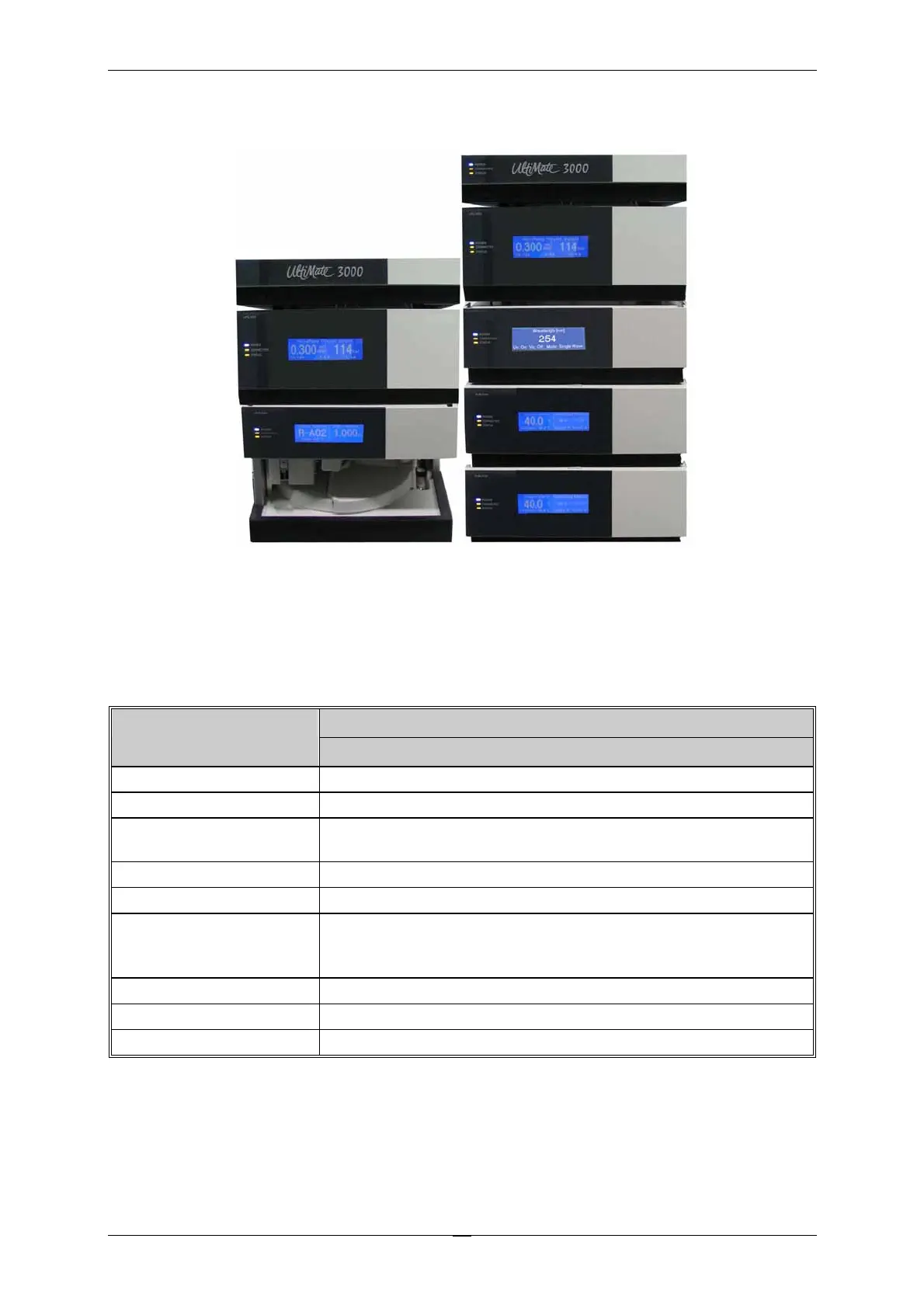

Fig. 17: Module arrangement for comprehensive 2D LC
The system includes the modules listed in the table below. In addition, the Comprehensive 2D
LC Kit (→ section 8.5, page 65) is required:
Part No. System Module
Capillary/Nano HPLC
SR-3000 5035.9200
LPG-3400 5035.0045 (standard) 5037.0055 (biocompatible)
WPS-3000 or
WPS-3000 T
5820.0010 (standard) or 5821.0010 (biocompatible)
5820.0020 (standard) or 5821.0020 (biocompatible)
SRD-3600 5035.9230
DGP-3600 5035.0050 (standard) or 5037.0060 (biocompatible)
VWD-3100*
VWD-3400*
5074.0005
5074.0010
*Please note that flow cells must be ordered separately, for order numbers see page 15.
FLM-3300 (Nano) 5720.0030 (standard) or 5721.0030 (biocompatible)
FLM-3300 (Capillary) 5720.0035 (standard) or 5721.0035 (biocompatible)
Comprehensive 2D LC Kit 6720.0053 (standard) or 6721.0053 (biocompatible)
SRD-3600
Solvent Rack
DGP-3600
Pump
VWD-3x00
Detector
FLM-3300
Flow Manager
WPS-3000 or
WPS-3000 T
Autosampler
LPG-3400
Pump
SR-3000
Solvent Rack
FLM-3300
Flow Manager
