UltiMate 3000 - System Installation and Application
35
Fig. 18 and the related table provide an overview of the fluid connections for 2D LC
comprehensive for capillary (1
st
dimension) nano (2
nd
dimension) HPLC. Also, refer to Fig. 19
(→ page 38).

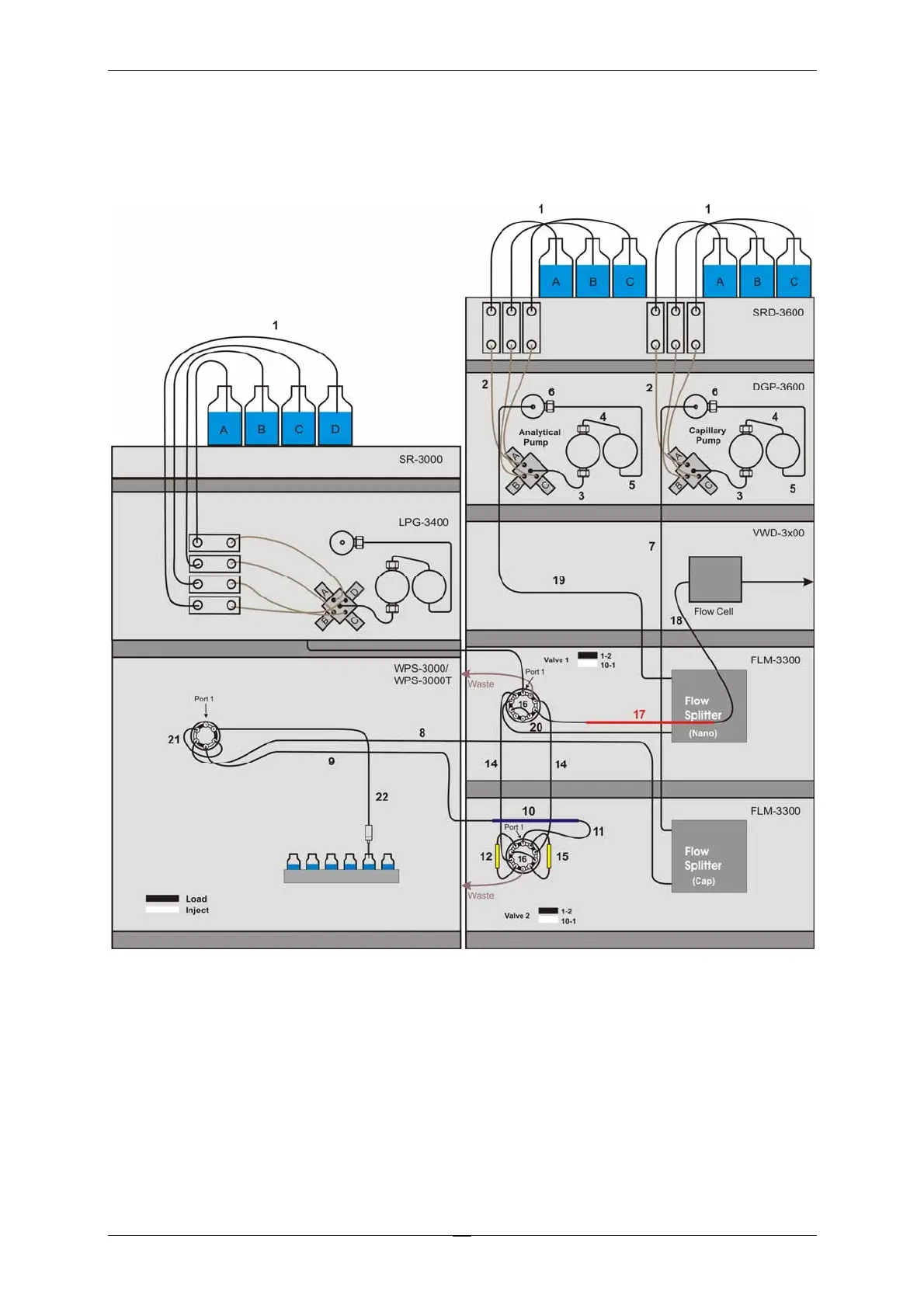

Fig. 18: Fluid connections for comprehensive 2D LC (overview)
