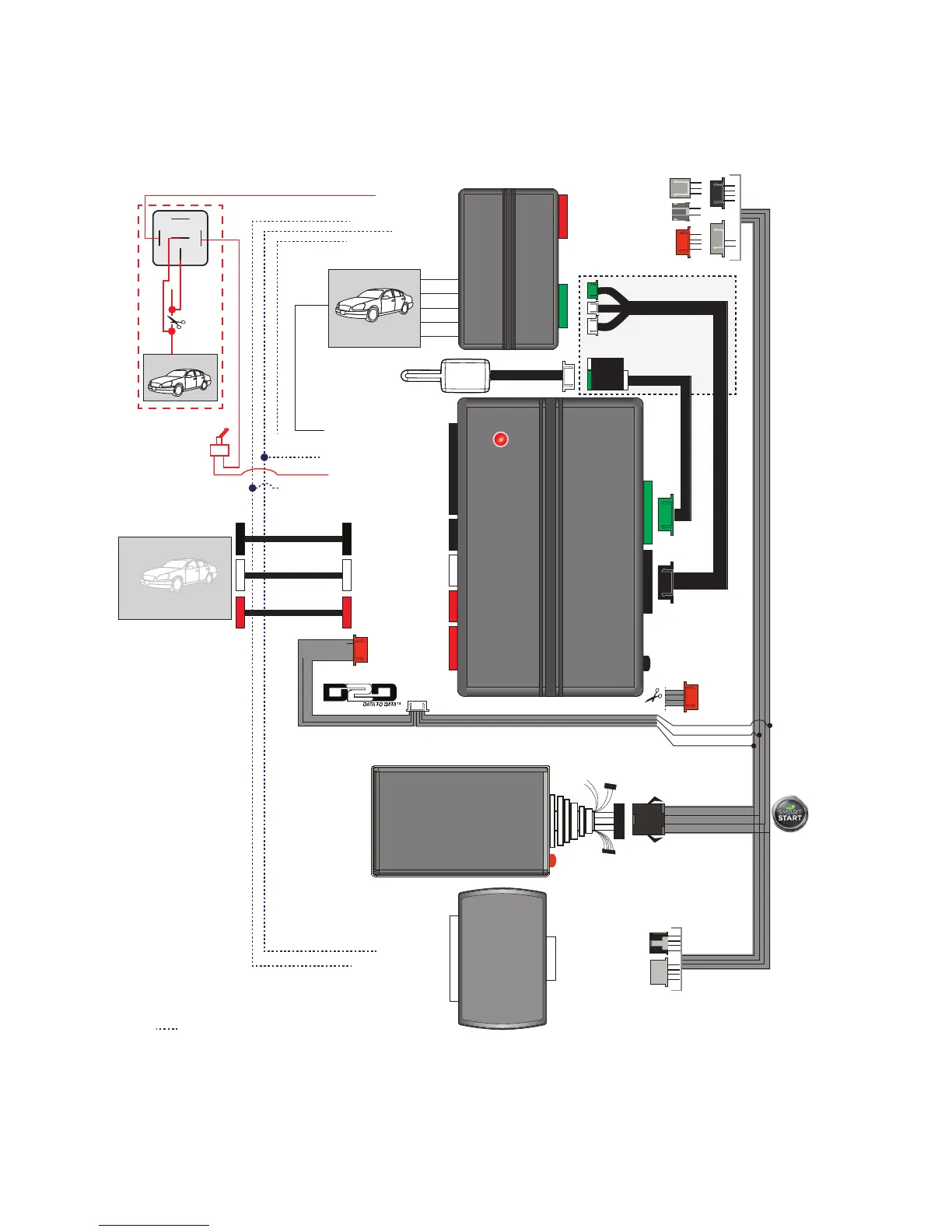

Type 3a - PKE + Xpresskit Bypass + DIRECTED SmartStart + Autostart or Astrostart
Directed Remote Starter (with 4-pin antenna connector)
Note: 8210 Antenna Universal Adapter is required and sold separately.
These wires are not required in D2D mode.
(-) Door Status Output
(+) Brake Output
(+) Brake Input: Purple/Black: 5
(-) Starter Kill: White/Black: 6
(-) Door Sense Input: Blue/White: 10****
(+) Brake Input
(-) Door Sense Input****
Regular Remote
Start Connections
To The Vehicle
4 White
(-) Ground: Black: 2
RX: Blue: 1
(+) 12v: Red: 4
Xpresskit
Interface Module*
(+) Door Sense Input: White/Purple: 4****
(+) Door Sense Input****
LED
CABLE***
6 Green 6 Black
4 Red
2 Black
2 Red10 Black
LED
PKE
Prog. Button
The connector depends
of the installed bypass.
Refer to the DIRECTED SmartStart
install guide for proper connection.
4 Red
Autostart RS*
Astrostart RS*
The remote starter model will
determine which connector to use.
Refer to the DIRECTED SmartStart
install guide for proper connection.
DIRECTED
SmartStart
TM
*
*Sold separately.
**Antenna & Antenna harness are sold with your Remote Starter kit.
***DIRECTED SmartStart
TM
cable is sold with your DIRECTED SmartStart
TM
system.
**** Door sense: The polarity of the door sense in the vehicle will determine which wire
to connect from the PKE to the DIRECTED Remote Starter.
D2D Port
Antenna
(+) 12v: Red: 4
(-) Ground: Black: 2
RX: Green: 3
TX: Blue: 1
RX: Blue: 1
TX: Green: 3
(-) Ground: Black: 2
(+) 12v: Red: 4
(-) Horn Output: Red/White: 3
Antenna (8 feet)
Antenna (18 feet)
Refer to the
Antenna Location
and Installation Points
section on page 5 for
more information.
D2D Y CABLE
Cut the 4-wire red connector of D2D Y-cable and connect RX (Blue),
12v and Ground wires to the corresponding wires of the DIRECTED SmartStart
TM
cable.
Not Used
RX: Blue
Ground: Black
(+)12v: Red
(+) Ignition Output
86 85
30
87a
87
(+) Starter Wire
Starter Disable:
This connection is
optional and ad-
ditional parts are
sold separately.
3 wires red
connector
8210 Main
Universal
Adaptor*: Refer
to the 8210 guide.
Antenna**
8210*
Antenna Harness**
8210*
This toggle switch will
bypass the starter disable.
2 White
Optional
Antenna (12 feet)*
(Part# SANT-PKE12)
To Next Page
