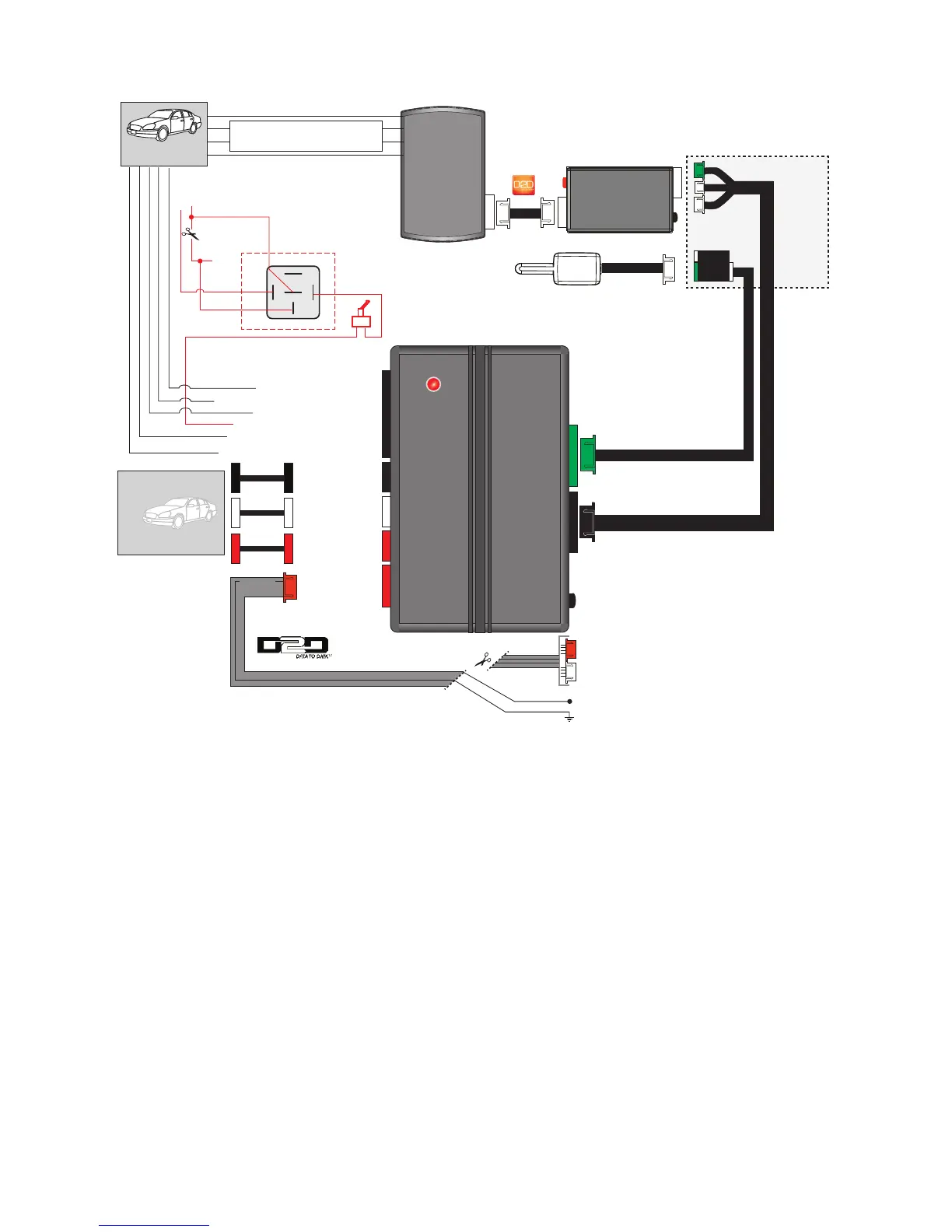

Type 8 - PKE + Xpresskit Bypass - Range Extender (RXT) + XL202
Note: 8210 Antenna Universal Adapter is required and sold separately.
(+) Door Sense Input: White/Purple: 4***
(-) Starter Kill Output: White/Black: 6
(-) Door Sense Input: Blue/White: 10***
(-) Ground: Black: 2
(+) 12v: Red: 4
(+) Brake Input: Purple/Black: 5
RX: Blue: 1
86 85
30
87a
87
6 Green 6 Black
4 Red2 Black 2 Red10 Black
LED
PKE
Prog. Button
D2D Y CABLE
Cut the unused connectors of D2D Y
cable and connect 12v and Ground wires.
Not Used
Ground: Black
(+)12v: Red
(-) Parking Light Output: Pink/White: 7
*Sold separately.
**D2D XOVER Cable, Antenna and Antenna Harness are sold with your RF Kit.
***Door sense: The polarity of the door sense in the vehicle will determine which wire to connect
from the PKE to the DIRECTED Remote Starter.
XL202*
XL202: Range Extender
Antenna
D2D Port
Range Extender (RXT)
Xpresskit
Interface Module*
D2D Port
Antenna (8 feet)
Antenna (18 feet)
Refer to the
Antenna Location
and Installation Points
section on page 5 for
more information.
(-) Horn Output: Red/White: 3
3 wires red
connector
8210 Main
Universal
Adaptor*:
Refer to the
8210 guide.
Antenna**
8210*
Antenna Harness**
8210*
XOVER
**
Connect these wires
to the vehicle.
See Remote Start Ready (RSR)
install guide according to your vehicle
for RSR connections details.
(+) Starter
(+) Ignition
Starter Disable:
This connection is optional
and additional parts are
sold separately.
This toggle switch will
bypass the starter disable.
2 White
Optional
Antenna (12 feet)*
(Part# SANT-PKE12)
