19
© 2012 Directed� All rights reserved�

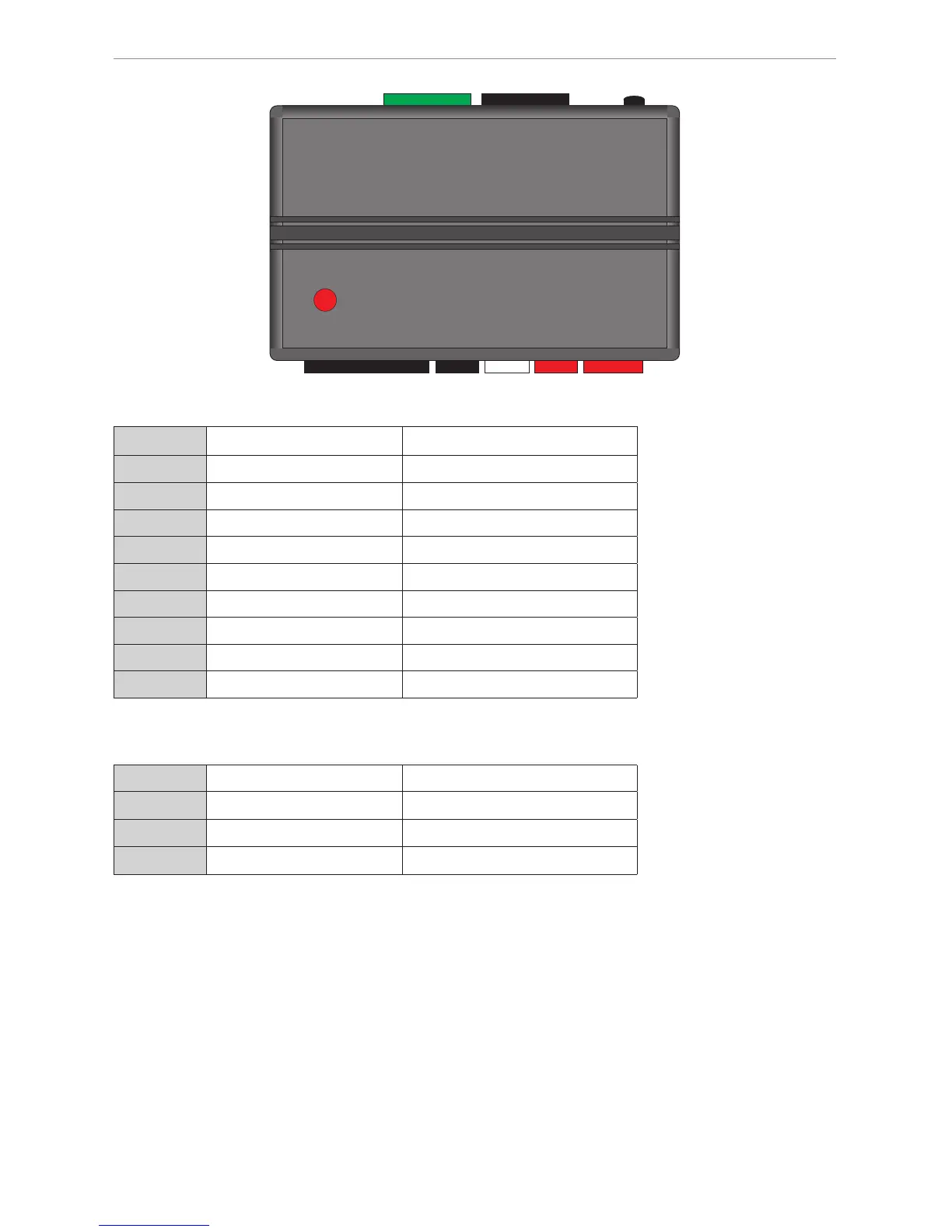

Wiring connections
6 Green 6 Black
4 Red2 Black 2 Red10 Black
LED
PKE
Prog. Button
Antenna Port Remote Start
Antenna Port
D2D Port
Antenna 8-foot
Antenna 18-foot
Analog Port
2 White
Antenna 12-foot
(Optional)
Analog Port (H1), 10-pin white connector
H1/1 GREEN (-) LOCK OUTPUT
H1/2 BLUE (-) UNLOCK OUTPUT
H1/3 RED/WHITE (-) HORN OUTPUT
H1/4 WHITE/PURPLE (+) DOOR SENSE INPUT*
H1/5 PURPLE/BLACK (+) BRAKE INPUT
H1/6 WHITE/BLACK (-) STARTER KILL OUTPUT
H1/7 PINK/WHITE (-) PARKING LIGHTS OUTPUT
H1/8 PURPLE No connection
H1/9 PINK No connection
H1/10 BLUE/WHITE (-) DOOR SENSE INPUT*
* Only one of the Door sense input is required for proper operation.
D2D port (H2), 4-pin black connector
H2/1 BLUE RX
H2/2 BLACK (-) GROUND
H2/3 GREEN TX
H2/4 RED (+) 12V
