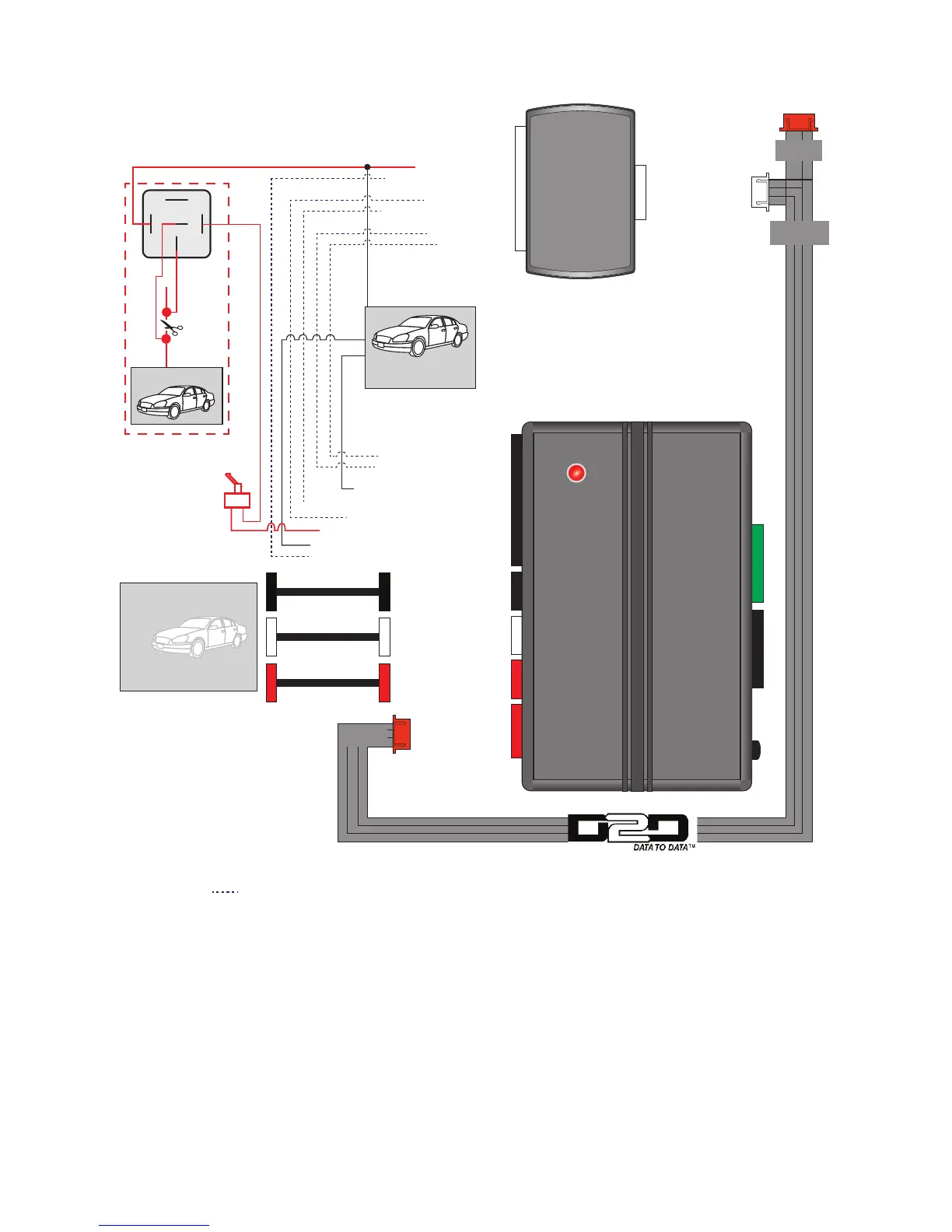

Type 5 - PKE + Xpresskit Bypass
Not Used
(+) Door Sense Input: White/Purple: 4**
(-) Starter Kill Output: White/Black: 6
(-) Door Sense Input: Blue/White: 10**
(+) Brake Output
(-) Door Sense Output**
(+) Brake Input: Purple/Black: 5
(+) Door Sense Output**
4 White
Xpresskit
Interface Module*
(-) Unlock Output: Blue: 2
(-) Lock Output: Green: 1
These wires are not required in D2D mode.
RX: Blue: 1
(-) Ground: Black: 2
TX: Green: 3
(+) 12v: Red: 4
6 Green 6 Black
4 Red2 Black 2 Red10 Black
LED
PKE
Prog. Button
RX: Blue: 1
TX: Green: 3
(-) Ground: Black: 2
(+) 12v: Red: 4
D2D Y CABLE
(-) Unlock Input
(-) Lock Input
(-) Parking Light Output: Pink/White: 7
*Sold separately.
**Door sense: The polarity of the door sense in the vehicle will determine which wire to connect
from the PKE to the DIRECTED Remote Starter.
D2D Port
(-) Horn Output: Red/White: 3
Antenna (8 feet)
Antenna (18 feet)
Refer to the
Antenna Location
and Installation Points
section on page 5 for
more information.
4 wires red
connector
3 wires red
connector
4 wires white
connector
86 85
30
87a
87
(+) Starter Wire
Connect these wires
to the vehicle.
(+) Ignition Output
Starter Disable:
This connection is
optional and ad-
ditional parts are
sold separately.
This toggle switch will
bypass the starter disable.
2 White
Optional
Antenna (12 feet)*
(Part# SANT-PKE12)
