16
© 2012 Directed� All rights reserved�

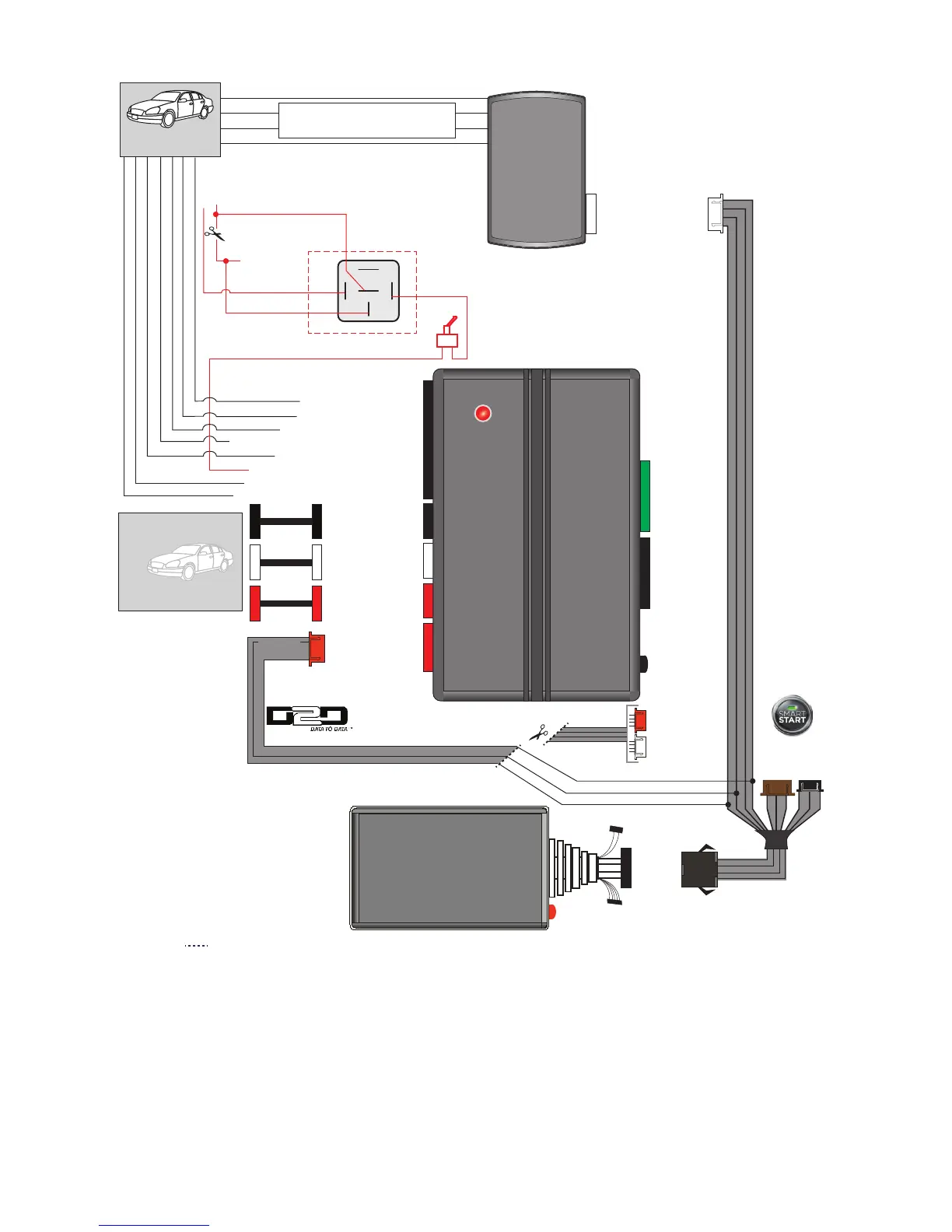

Type 7 - PKE + Xpresskit Bypass - Remote Start Ready (RSR) + DIRECTED SmartStart
(+) Door Sense Input: White/Purple: 4***
(-) Starter Kill Output: White/Black: 6
(-) Door Sense Input: Blue/White: 10***
(-) Ground: Black: 2
(+) 12v: Red: 4
(+) Brake Input: Purple/Black: 5
Remote Start ready
Xpresskit
Interface Module*
RX: Blue: 1
(+) Starter
(+) Ignition
86 85
30
87a
87
6 Green 6 Black
4 Red2 Black 2 Red10 Black
LED
PKE
Prog. Button
These wires are not required in D2D mode.
LED
D2D Y CABLE
Cut the unused connectors of D2D Y cable and connect
RX (blue), 12v and Ground wires to the corresponding
wires of the D2D cable.
Not Used
TX: Blue: 1
RX: Green: 3
(-) Ground: Black: 2
(+) 12v: Red: 4
(-) Unlock Output: Blue: 2
(-) Lock Output: Green: 1
(-) Parking Light Output: Pink/White: 7
*Sold separately.
**DIRECTED SmartStart
TM
cable is sold with your SmartStart system.
***Door sense: The polarity of the door sense in the vehicle will determine which wire to connect
from the PKE to the DIRECTED Remote Starter.
D2D Port
Antenna (8 feet)
Antenna (18 feet)
Refer to the
Antenna Location
and Installation Points
section on page 5 for
more information.
(-) Horn Output: Red/White: 3
DIRECTED
SmartStart
TM
*
Starter Disable:
This connection is optional
and additional parts are
sold separately.
3 wires red
connector
Connect these wires
to the vehicle.
See Remote Start Ready (RSR)
install guide according to your vehicle
for RSR connections details.
This toggle switch will
bypass the starter disable.
CABLE**
RX: Blue
Ground: Black
(+)12v: Red
(+)12v
TX
(-) Ground
RX
Not Used
2 White
Optional
Antenna (12 feet)*
(Part# SANT-PKE12)
To Next Page
