© 2006 Directed Electronics—all rights reserved
25
Lexus, BMW, some Mitsubishi, some Mazda, and other model cars.

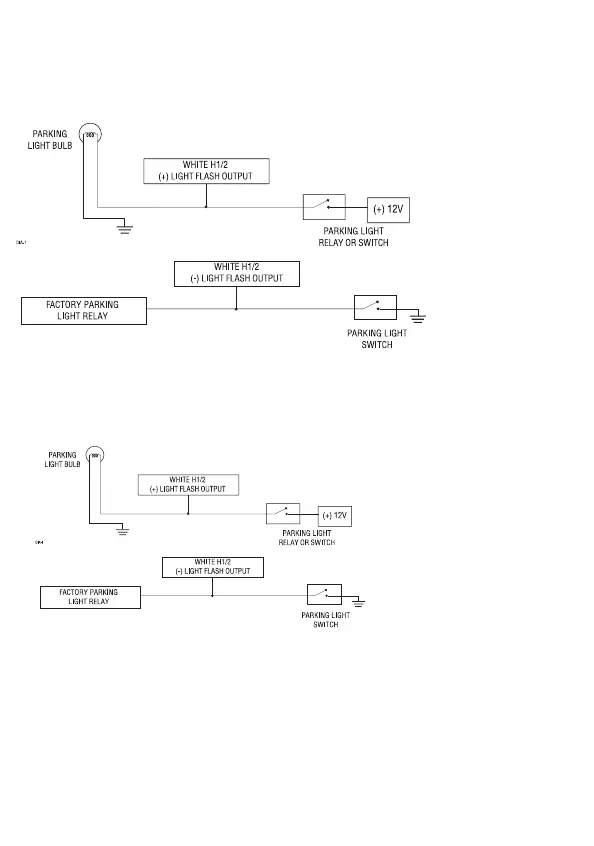

(+) Positive Light Flash Output
(-) Light Flash Output
NOTE: For parking light circuits that draw 10 amps or more, the internal jumper must be switched to a (-)
light flash output. (See the Internal Programming Jumper section of this guide.) P/N 8617 or a standard
automotive SPDT relay must be used on the H1/2 light flash output harness wire.
