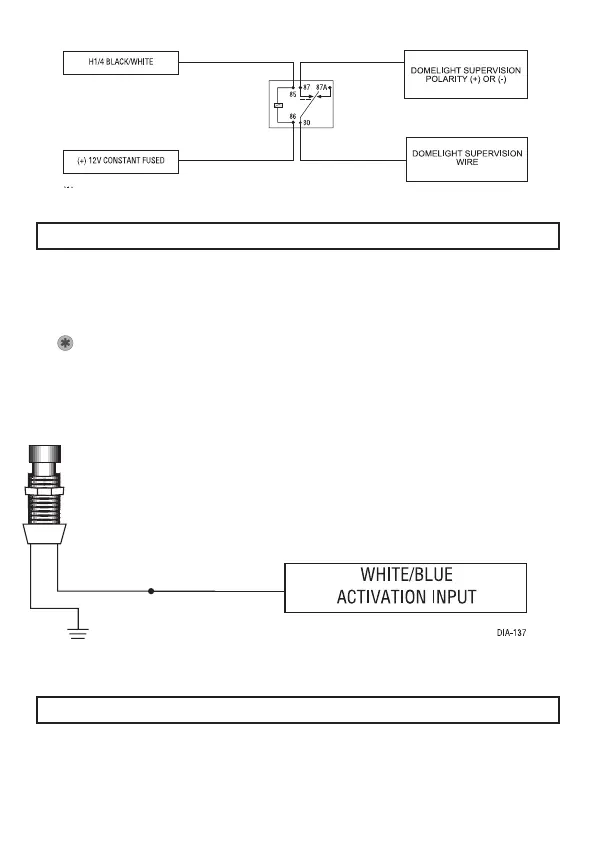

H1/10 WHITE/BLUE remote start (-) activation input
This input comes from the factory set to 2 activation pulses. This means that it is necessary to have 2
consecutive ground pulses on the white/blue wire for the remote start to activate or to deactivate. The
same holds true for the remote control activation when set to a two pulse setting it is necessary to press
the button twice for the remote start to activate or deactivate.
NOTE: The number of activation inputs can be programmed to 1 or 2 pulses. This setting affects both the
input wire and the remote control when operating the remote starter.
H1/11 WHITE (+/-) selectable light flash output
As shipped, this wire should be connected to the (+) parking light wire. If the light flash polarity jumper
under the sliding door is moved to the opposite position (see Internal Programming Jumper section of this
guide), this wire supplies a (-) 200 mA output. This is suitable for driving (-) light control wires in Toyota,
