Drill - 58 C16x/C24x/C30x Operator’s Manual
Set up
Set up

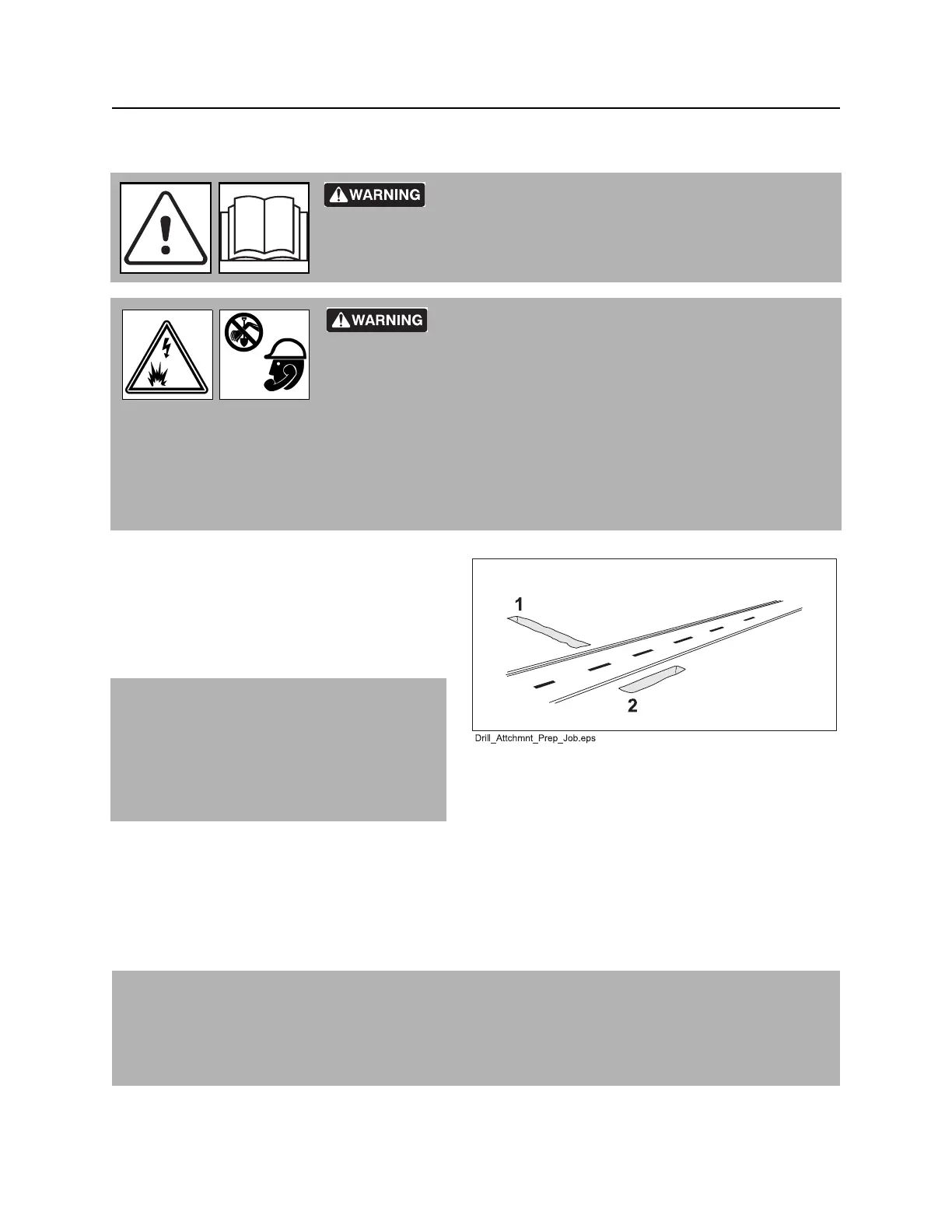

Dig Approach Trench
1. Mark path where you intend to drill.
2. Dig an approach trench (1) along the
intended bore path.
Dig Target Trench
1. Select a completion point for the bore.
2. Dig a target trench (2) across the intended
completion point.
Read operator’s manual. Know how to use all controls.
Your safety is at stake.
Jobsite hazards could cause death or serious injuries.
To help avoid injury:
• Comply with all utility notification regulations before digging or drilling.
• Set up warning barriers and keep people away from machine and jobsite.
• Do not operate drilling attachment if bore path is less than 10’ (3 m) from any underground hazard.
IMPORTANT: Ensure that approach trench is:
• deep enough for pipe to lay flat and enter
soil at correct angle;
• at least 20’ (6 m) long;
• at least 4” (10 cm) wide.
IMPORTANT: Ensure that target trench is:
• deep enough for drill bit to enter slightly above the trench floor;
• long enough to allow for drift of unguided drill string. Accuracy of bore decreases with length and
varies with soil conditions.
